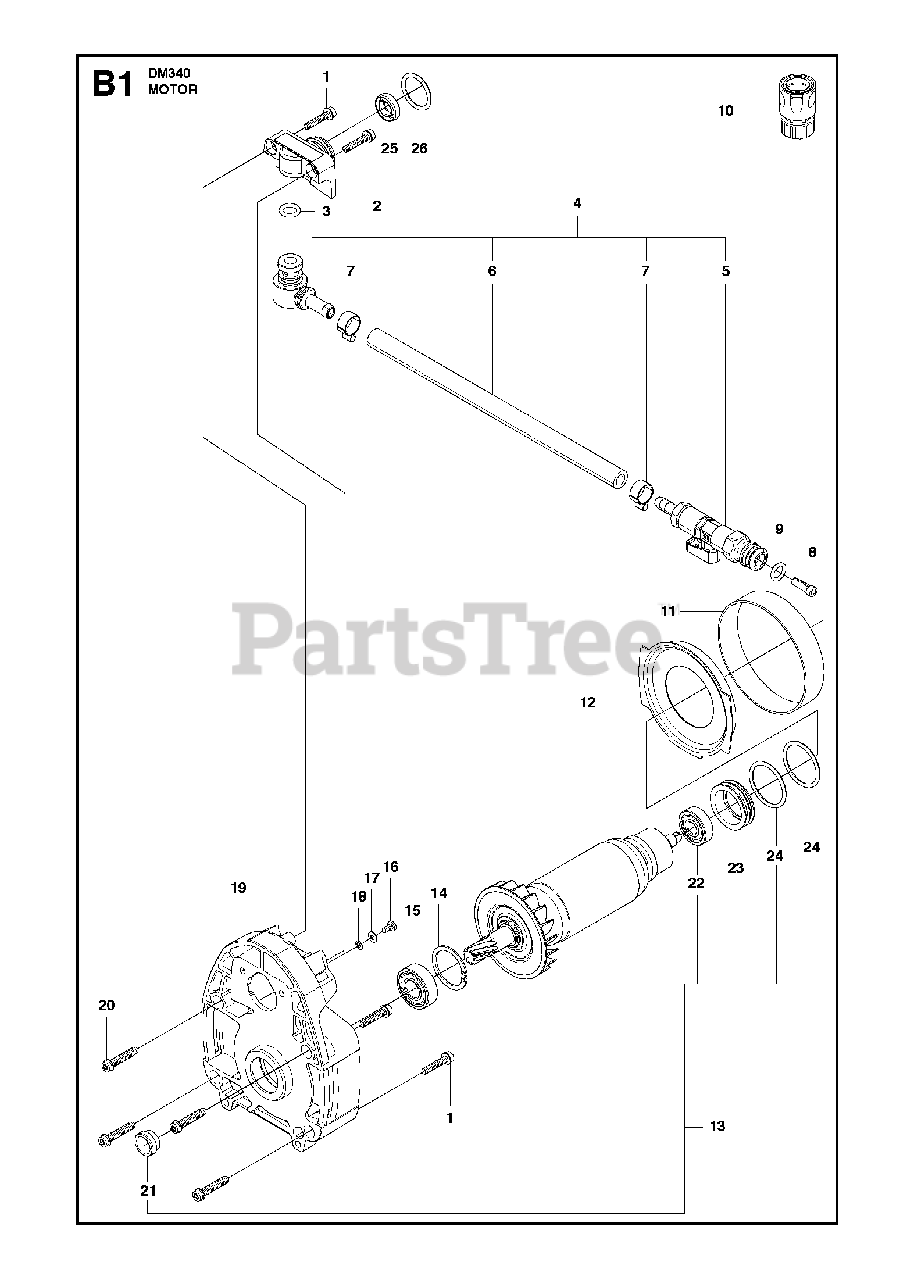

DM 340 - Husqvarna Drilling Machine (2012) MOTOR Parts Diagram

Drilling Machine

MOTOR Parts Diagram

  • Title

1

Husqvarna 503 20 07-78

SCREW IHSCFM

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 589 62 58-01

BRACKET

$89.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 502 49 65-01

O-RING

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 501 07 22-02

HOSE ASSY

$155.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 587 43 78-02

VALVE ASSY

$92.99

$

In Stock, only 2 left!

0

6

Husqvarna Construction 581 89 36-07

HOSE

$

$

Currently unavailable

7

Husqvarna 576 12 97-01

HOSE CLAMP

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 506 29 88-01

FILTER
(Superseded to 589780701)

$7.99

$

In Stock, only 1 left!

0

9

Husqvarna 505 10 35-01

O-RING
(Superseded to 740421000)

$4.99

$

In Stock, Qty 14

0

10

Husqvarna 503 26 60-03

COUPLERUS, CANADA

$11.99

$

In Stock, Qty 20+

0

10

Husqvarna 503 26 60-04

COUPLER

$15.99

$

In Stock, Qty 8

0

11

Husqvarna Construction 510 02 14-01

SPACER RING

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 544 80 60-01

AIR CONDUCTOR

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 525 83 66-04

ROTOR230V

$

$

Not available

13

Husqvarna Construction 525 83 66-05

ROTOR120V

$570.50

$

Usually ships in 3-10 days

0

14

Husqvarna 735 31 33-10

CIRCLIP

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 531 07 39-44

BALL BEARING

$65.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 724 12 87-01

SCREW CRPANM

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 734 11 36-01

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 735 21 36-01

LOCKWASHER

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 510 01 76-01

COVER

$313.13

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 503 21 88-55

SCREW IHSCT

$

$

Not available

21

Husqvarna Construction 544 39 76-01

SLEEVE

$18.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503 25 09-01

BEARING

$56.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 588 60 85-01

BEARING SLEEVE

$27.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 740 44 10-00

O-RING

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 582 59 04-01

RADIAL SEAL

$20.99

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 502 49 65-04

O-RING

$

$

Not available
