DM 40 (UT-05027) - Homelite Multi Purpose Saw Muffler & Starter Parts Diagram

Multi Purpose Saw

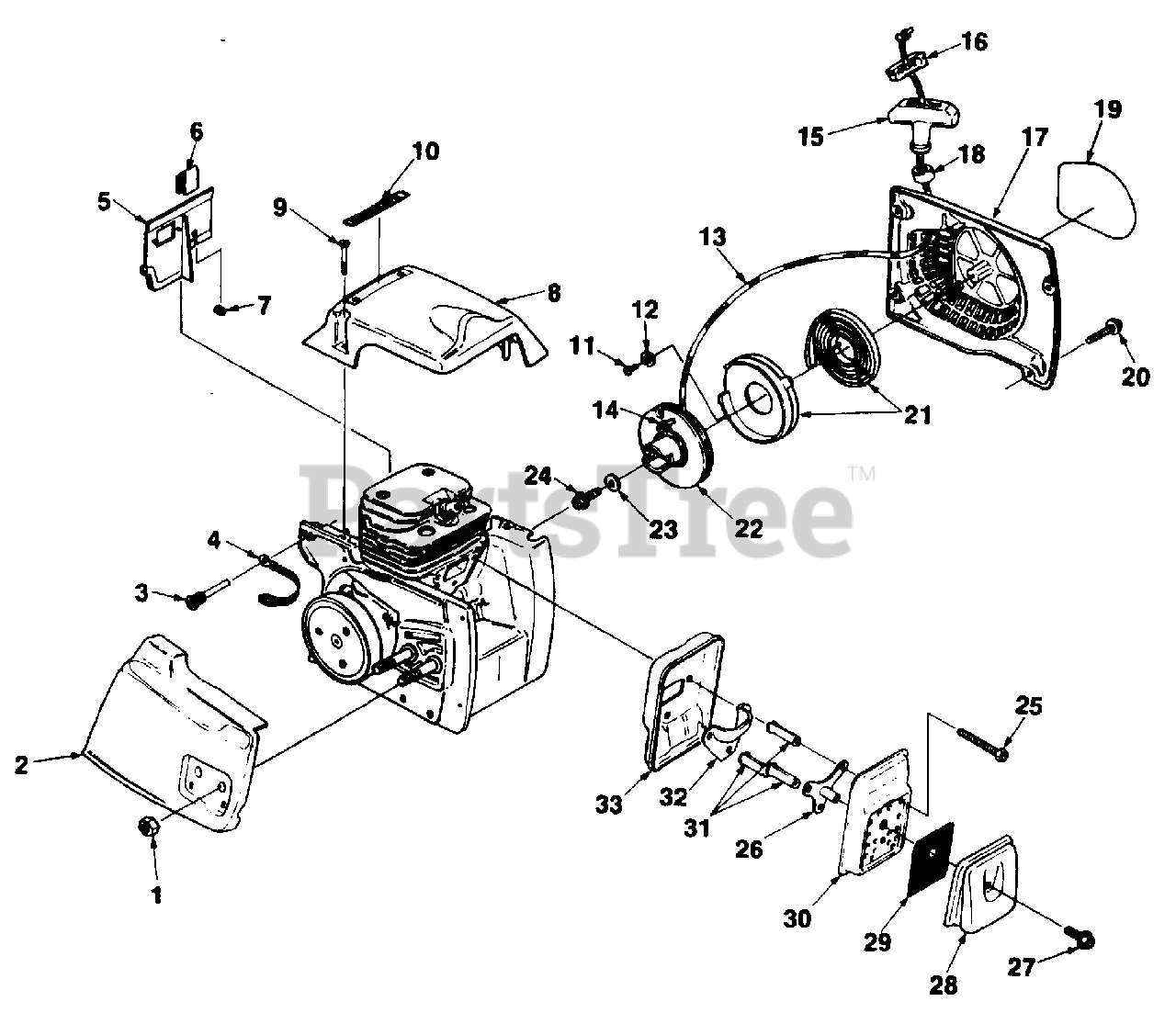

Muffler & Starter Parts Diagram

  • Title

1

Homelite 810892

NUT- 3/8-16

$15.99

$

Usually ships in 3-7 days

0

2

Homelite 478693

COVER- Drivecase

$

$

Currently unavailable

3

Homelite 93367

PIN- Isolator

$

$

Not available

4

Homelite A93459A

STRAP- Ground

$

$

Not available

5

Homelite A96866

DEFLECTOR- Air

$

$

Currently unavailable

6

Homelite 96200

CLIP- Spring

$

$

Not available

7

Homelite 93357

GROMMET

$

$

Not available

8

Homelite A97762

COVER- Cylinder

$

$

Currently unavailable

9

Homelite 93397A

SCREW- Cylinder cover

$

$

Currently unavailable

10

Homelite 96479

LABEL- Homelite

$

$

Currently unavailable

11

Homelite 82215

SCREW- Plastite
(Superseded to 82528)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 84025

WASHER- Flat

$

$

Not available

13

Homelite A49137

ROPE- Starter

$

$

Currently unavailable

14

Homelite 83060

WASHER
(Superseded to UP07171)

$

$

Not available

15

Homelite A69962B

GRIP- Starter

$23.99

$

Usually ships in 3-7 days

0

16

Homelite 70018A

INSERT- Rope retaining

$

$

Not available

17

Homelite A93168A

HOUSING- Starter
(Superseded to A02568)

$

$

Currently unavailable

18

Homelite 67177

BUSHING

$

$

Not available

19

Homelite 48487

DECAL

$

$

Currently unavailable

20

Homelite 82298

SCREW
(Superseded to 82593)

$5.99

$

Usually ships in 3-7 days

0

21

Homelite A93370

RETAINER & SPRING
(Superseded to A98067A)

$49.99

$

Usually ships in 3-7 days

0

Homelite A98067

RETAINER- Spring
(Superseded to A98067A)

$49.99

$

Usually ships in 3-7 days

0

22

Homelite A93359

CUP & PULLEY
(Superseded to UP07034)

$

$

Not available

23

Homelite 58763

WASHER- Retaining

$

$

Not available

24

Homelite 93417

SCREW- Thd. retaining
(Superseded to 82409)

$

$

Not available

25

Homelite 94129

SCREW- Mach. hex hd.

$4.49

$

Usually ships in 3-7 days

0

26

Homelite A95062

SPACER & PLATE KIT

$

$

Currently unavailable

27

Homelite 88048

SCREW- 10-24 x .375
(Superseded to 5687301)

$

$

Not available

28

Homelite A93355A

CAP- Muffler

$

$

Not available

29

Homelite 93344

SCREEN- Spark arrestor

$

$

Not available

30

Homelite 933481A

COVER- Muffler

$

$

Currently unavailable

31

Homelite 9398303

SPACER- Muffler

$

$

Not available

32

Homelite 93349

PLATE- Stiffner

$

$

Not available

33

Homelite 93347

BODY- Muffler

$

$

Not available

Homelite A00793D

STARTER- Complete

$

$

Currently unavailable

Homelite 64443

BUSHING (in Starter under Pulley)

$

$

Not available
