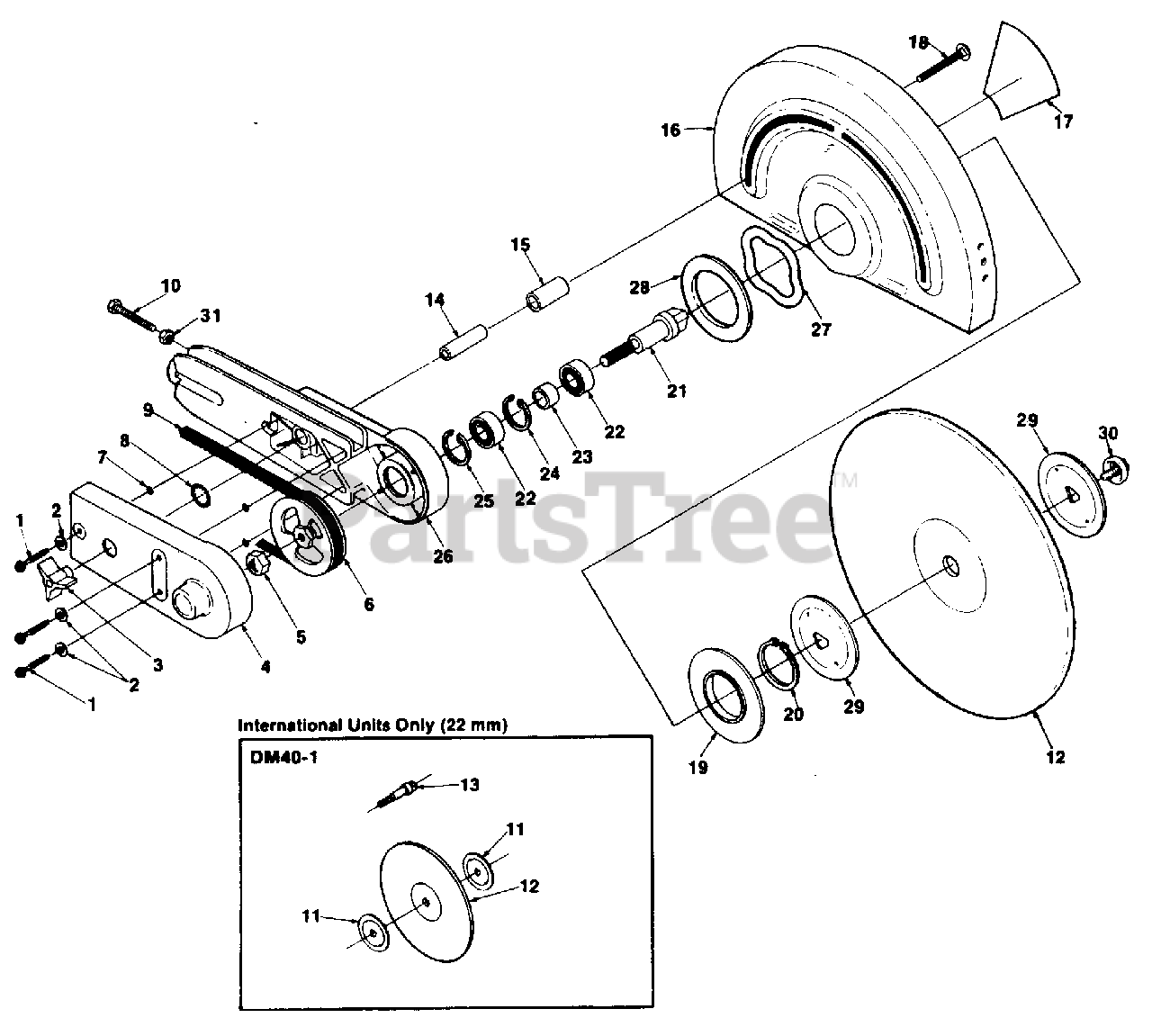

DM 401 (UT-05028) - Homelite Multi Purpose Saw Blade Arm Parts Diagram

Multi Purpose Saw

Blade Arm Parts Diagram

  • Title

1

Homelite 94143

SCREW

$

$

Not available

2

Homelite 84026

WASHER- Flat

$

$

Not available

3

Homelite 46076

KNOB
(Superseded to 06365)

$

$

Not available

4

Homelite 43966

COVER- Arm
(Superseded to 43966C)

$

$

Not available

5

Homelite 81245

NUT- Lock hex

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 439981A

PULLEY- Driven

$

$

Currently unavailable

7

Homelite 46462

"O" RING

$

$

Not available

8

Homelite 46072

RING- Retaining

$

$

Not available

9

Homelite 46068

BELT-"V" Drive
(Superseded to UP06392)

$

$

Not available

10

Homelite 46130

SCREW

$7.49

$

Usually ships in 3-7 days

0

11

Homelite 439971

FLANGE-Wheel (DM-40-1)

$

$

Currently unavailable

12

Homelite 64596BS

WHEEL- Resinoid (Concrete) (DM40)
(Superseded to 64596C)

$

$

Not available

Homelite 47449

WHEEL- Resinoid (Concrete) (DM40-1)

$

$

Currently unavailable

13

Homelite 49711

SHAFT- Wheel (DM40-1)

$95.99

$

Usually ships in 3-7 days

0

14

Homelite 46456A

SPACER- Guard adjusting
(Superseded to 46456B)

$

$

Not available

15

Homelite 46455

TUBING- Rubber

$

$

Not available

16

Homelite A434621A

GUARD- Wheel

$

$

Currently unavailable

17

Homelite 48922

LABEL- Caution
(Superseded to 48922A)

$

$

Not available

18

Homelite 82371

BOLT- Step

$

$

Not available

19

Homelite 46000

WASHER- Mounting

$

$

Not available

20

Homelite 46065

RING

$

$

Not available

21

Homelite 46079A

SHAFT-Wheel (DM40)
(Superseded to 49710)

$

$

Not available

22

Homelite 63107S

BEARING- Ball
(Superseded to UP06440)

$

$

Not available

23

Homelite 46067

SPACER- Bearing

$

$

Not available

24

Homelite 47207

RlNG-Retaining

$

$

Not available

25

Homelite 31746

RING- Retaining
(Superseded to UP06391)

$

$

Not available

26

Homelite A47407

ARM- Wheel

$

$

Currently unavailable

27

Homelite 47388

SPRING- Wave

$

$

Not available

28

Homelite 47387

SHIM

$

$

Not available

29

Homelite 439961

FLANGE-Wheel (DM40)

$

$

Currently unavailable

30

Homelite A48783

SCREW, WASHER & RETAINER KIT

$

$

Currently unavailable

31

Homelite 81162

NUT

$

$

Not available
