DM-4500 - Echo Duster / Mister Part List 1 Parts Diagram

Duster / Mister

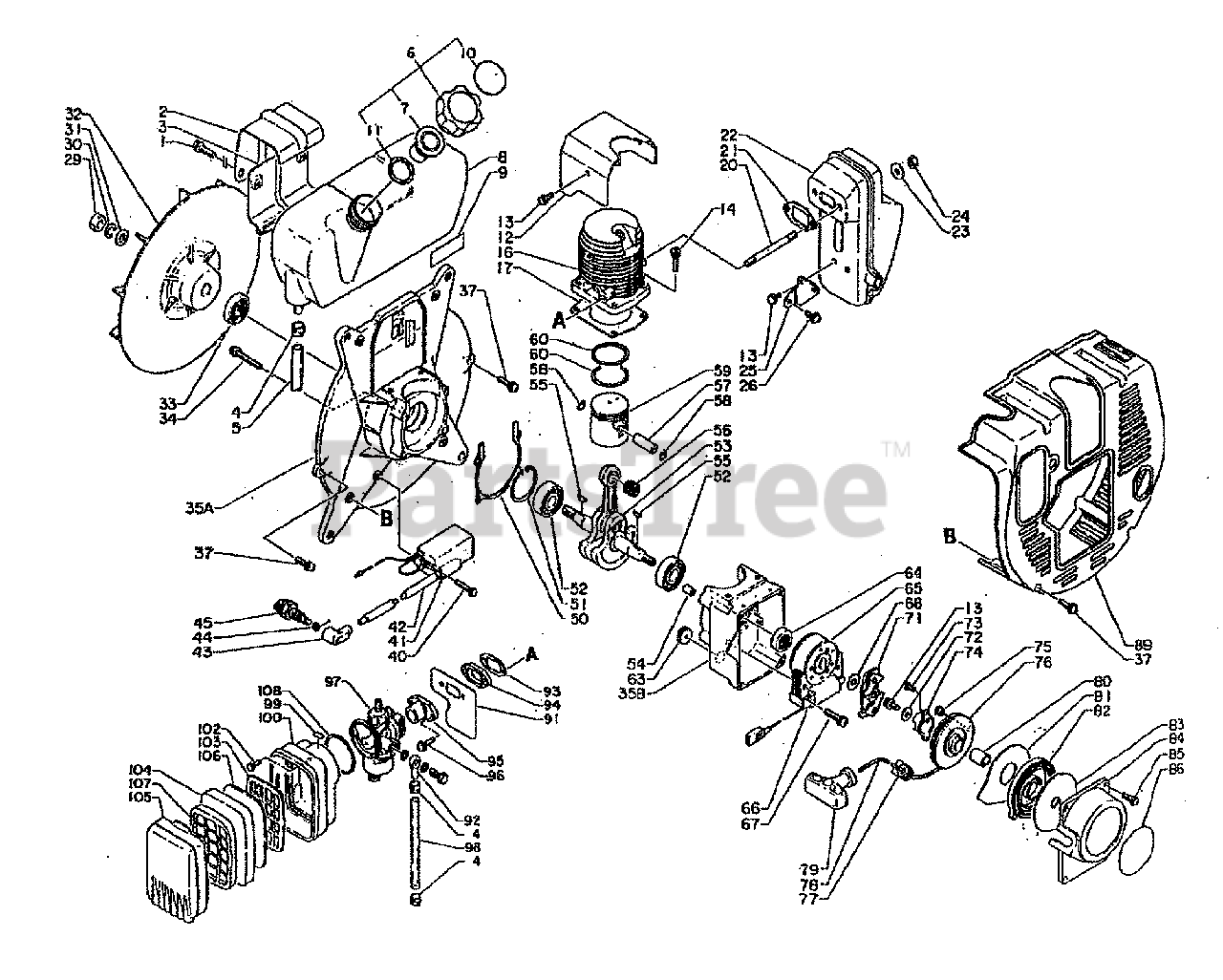

Part List 1 Parts Diagram

  • Title

1

Echo 900142-06020

BOLT 6×12
(Superseded to Discontinued)

$

$

Not available

2

Echo 131910-03210

BRACKET, FUEL TANK

$

$

Currently unavailable

3

Echo 131918-02910

BRACKET, FUEL TANK

$

$

Currently unavailable

4

Echo 367013-00210

CLAMP

$

$

Currently unavailable

5

Echo 132010-03210

PIPE

$

$

Currently unavailable

6

Echo 131604-07132

CAP ASSY, FUEL

$

$

Not available

7

Echo 131003-05330

CAP, VENT

$3.49

$

Usually ships in 2-4 days

0

10

Echo 890157-12730

LABEL

$

$

Currently unavailable

11

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 3 left!

0

8

Echo 131010-03210

TANK, FUEL

$

$

Currently unavailable

9

Echo 890112-04010

LABEL

$

$

Currently unavailable

12

Echo 101514-03211

COVER, CYLINDER

$

$

Currently unavailable

13

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

14

Echo 900162-06020

BOLT 6×20

$1.49

$

In Stock, only 4 left!

0

16

Echo 101011-02311

CYLINDER

$

$

Currently unavailable

17

Echo 101010-02312

GASKET, CYLINDER
(Superseded to 10101005511)

$

$

Not available

20

Echo 101014-02310

STUD

$

$

Currently unavailable

21

Echo 145510-02311

GASKET

$

$

Currently unavailable

22

Echo 145610-03210

MUFFLER ASSY

$

$

Currently unavailable

23

Echo 145642-00760

WASHER

$0.99

$

Usually ships in 2-4 days

0

24

Echo 145710-00230

NUT, LOCK
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

25

Echo 145711-02310

BRACKET

$

$

Currently unavailable

26

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

29

Echo 900501-00010

NUT 10

$0.99

$

In Stock, only 2 left!

0

30

Echo 900605-00010

SCREW

$0.99

$

In Stock, Qty 6

0

31

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

32

Echo 200005-03210

FAN

$

$

Currently unavailable

33

Echo 100213-02830

SEAL, OIL 18

$7.99

$

In Stock, only 1 left!

0

34

Echo 900162-05040

BOLT 5×40

$1.99

$

In Stock, only 1 left!

0

35

Echo 100200-03213

CRANKCASE SET

$

$

Currently unavailable

54

Echo 100215-05730

PIN, LOCATING
(Superseded to Discontinued)

$

$

Not available

37

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

40

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

41

Echo 156601-03210

COIL, IGNITION

$179.99

$

Usually ships in 2-4 days

0

42

Echo 156111-03210

TUBE

$

$

Currently unavailable

43

Echo 159012-01620

TERMINAL, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

44

Echo 159011-03432

SPARK PLUG - BM6A
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

45

Echo 159010-00330

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

50

Echo 100242-03212

GASKET, CRANKCASE

$

$

Currently unavailable

51

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

52

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

53

Echo 100100-03210

CRANKSHAFT ASSY

$

$

Not available

55

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

56

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

57

Echo 100013-00410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

58

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

59

Echo 100010-03210

PISTON

$

$

Not available

60

Echo 100011-10530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

63

Echo 156114-03210

GROMMET

$

$

Currently unavailable

64

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

65

Echo 156800-03210

COIL, EXCITER

$

$

Not available

66

Echo 156627-03210

COIL, EXCITER
(Superseded to Discontinued)

$

$

Not available

67

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

68

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

71

Echo 177305-06720

PAWL ASSY, STARTER
(Superseded to 17730540530)

$

$

Not available

Echo 177200-03211

STARTER ASSY

$132.99

$

Usually ships in 2-4 days

0

13

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

72

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

73

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

74

Echo 177243-04130

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

75

Echo 177246-03930

CLIP, STARTER ROPE

$0.99

$

In Stock, only 2 left!

0

76

Echo 177215-04130

REEL, ROPE

$25.99

$

Usually ships in 2-4 days

0

77

Echo 177227-02910

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

78

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

$6.99

$

In Stock, only 2 left!

0

79

Echo 177228-11130

HANDLE

$6.99

$

Usually ships in 2-4 days

0

80

Echo 177216-12330

BUSHING

$1.99

$

In Stock, Qty 20+

0

81

Echo 177242-02910

PLATE, SIDE
(Superseded to Discontinued)

$

$

Not available

82

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

83

Echo 177221-06720

PLATE, SIDE

$3.49

$

Usually ships in 2-4 days

0

84

Echo 177209-03211

CASE, STARTER

$

$

Not available

85

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

86

Echo 890112-17830

LABEL
(Superseded to 89011240930)

$7.49

$

In Stock, only 2 left!

0

89

Echo 104016-03210

COVER, ENGINE

$

$

Currently unavailable

91

Echo 130010-03311

GASKET, INTAKE

$

$

Currently unavailable

92

Echo 132024-00660

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

93

Echo 130016-01110

PACKING

$0.99

$

In Stock, only 3 left!

0

94

Echo 130017-01110

INSULATOR

$3.99

$

Usually ships in 2-4 days

0

95

Echo 130510-02310

ADAPTOR, INTAKE

$

$

Currently unavailable

96

Echo 900142-06025

BOLT

$0.99

$

Usually ships in 2-4 days

0

97

Echo 120000-03213

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

98

Echo 132010-03210

PIPE

$

$

Currently unavailable

99

Echo 890121-00660

LABEL
(Superseded to Discontinued)

$

$

Not available

100

Echo 130307-03711

CASE, AIR FILTER

$8.49

$

Usually ships in 2-4 days

0

102

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

103

Echo 130319-03710

GRID, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

104

Echo 130310-02910

PRE-FILTER, FOAM

$6.49

$

Usually ships in 2-4 days

0

105

Echo 130313-03710

COVER, AIR FILTER

$

$

Not available

106

Echo 130317-03710

FILTER, AIR

$5.99

$

Usually ships in 2-4 days

0

107

Echo 130311-03710

GRID, PRE-FILTER

$3.49

$

Usually ships in 2-4 days

0

108

Echo 130320-03710

GASKET

$

$

Not available
