DM-4500 - Echo Duster / Mister Part List 2 Parts Diagram

Duster / Mister

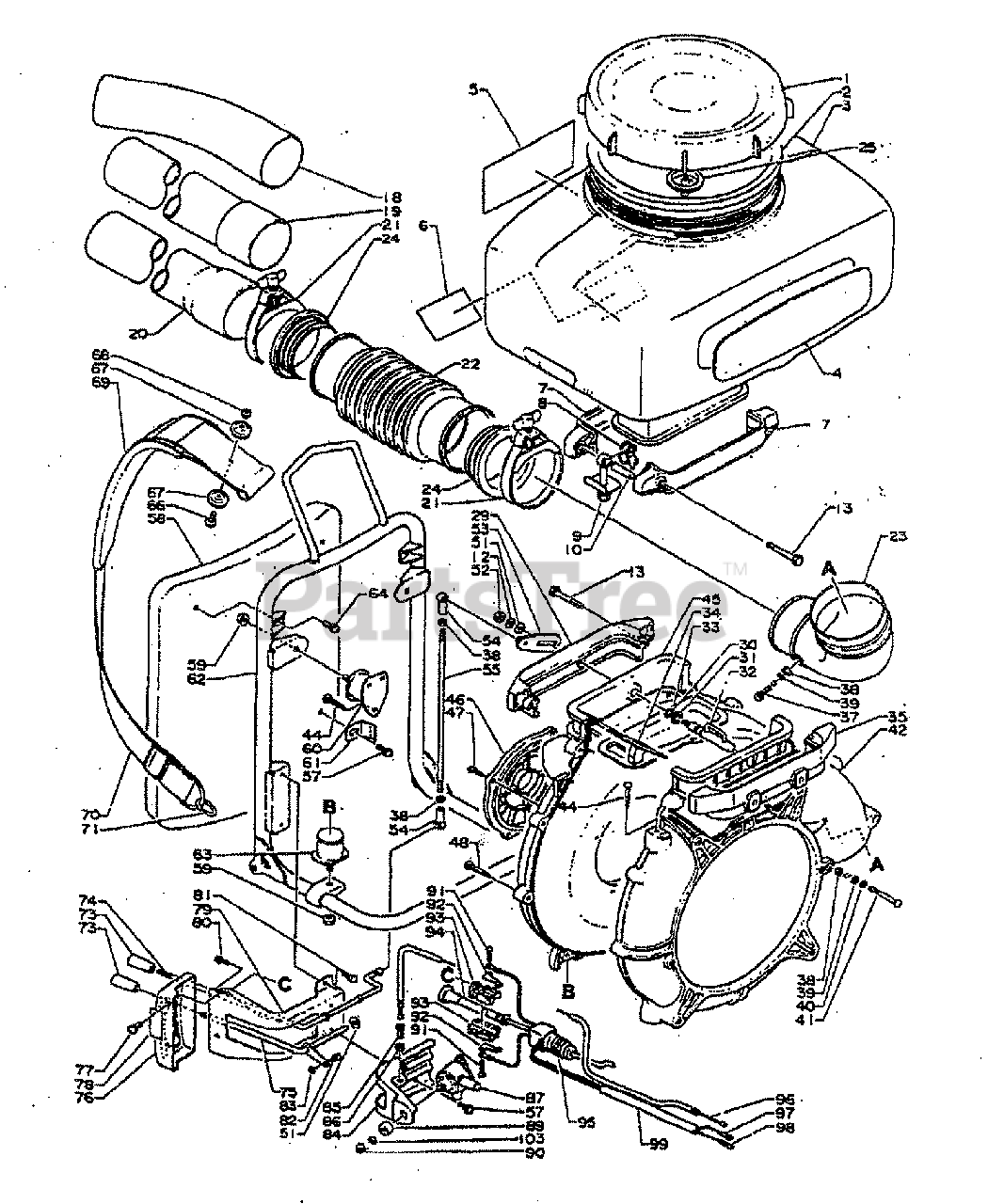

Part List 2 Parts Diagram

  • Title

1

Echo 250001-05610

CAP ASSY, CHEMICAL TANK

$28.99

$

Usually ships in 2-4 days

0

25

Echo 250013-00310

CONNECTOR, PIPE

$2.99

$

Usually ships in 2-4 days

0

2

Echo 250011-02010

GASKET

$

$

Currently unavailable

3

Echo 250010-03910

TANK, CHEMICAL

$

$

Currently unavailable

4

Echo 890118-01110

LABEL
(Superseded to 89013801110)

$4.49

$

Usually ships in 2-4 days

0

5

Echo 890178-03710

LABEL

$

$

Currently unavailable

6

Echo 890120-03710

LABEL

$

$

Currently unavailable

7

Echo 250900-03610

HOLDER

$

$

Currently unavailable

8

Echo 250925-02910

HOLDER

$

$

Currently unavailable

9

Echo 250907-03211

BOLT

$

$

Currently unavailable

10

Echo 250914-03210

PIN

$

$

Currently unavailable

13

Echo 900249-05050

SCREW 5×50
(Superseded to Discontinued)

$

$

Not available

18

Echo 210023-00210

TUBE, BLOWER - CURVED

$12.99

$

In Stock, only 4 left!

0

19

Echo 210015-01110

TUBE, BLOWER - STRAIGHT

$14.99

$

Usually ships in 2-4 days

0

20

Echo 210014-01610

TUBE, BLOWER - STRAIGHT

$18.99

$

Usually ships in 2-4 days

0

21

Echo 210407-01110

COLLAR

$

$

Not available

22

Echo 210012-01710

TUBE, FLEXIBLE

$49.99

$

Usually ships in 2-4 days

0

24

Echo 210032-01610

COLLAR
(Superseded to 21003204110)

$9.99

$

Usually ships in 2-4 days

0

23

Echo 210011-03010

TUBE, BLOWER - ELBOW

$

$

Currently unavailable

29

Echo 270025-03810

HOLDER

$

$

Currently unavailable

30

Echo 270217-01110

O-RING

$

$

Not available

31

Echo 90070300008

E-RING 8 SUS

$0.99

$

Usually ships in 2-4 days

0

32

Echo 270205-02911

SHAFT, SHUTTER

$

$

Currently unavailable

33

Echo 370613-03210

PIPE

$

$

Not available

34

Echo 370315-02910

GUIDE

$

$

Currently unavailable

35

Echo 270010-03810

HOLDER

$

$

Currently unavailable

37

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

38

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

39

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

40

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

41

Echo 210425-02310

SCREW

$

$

Currently unavailable

42

Echo 200107-03810

CASE, FAN

$

$

Not available

44

Echo 900249-05016

SCREW 5×16

$

$

Not available

45

Echo 200105-03810

CASE, FAN

$

$

Currently unavailable

46

Echo 200124-01111

GRID, FAN CASE

$17.99

$

Usually ships in 2-4 days

0

47

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

48

Echo 900249-05025

SCREW 5×25
(Superseded to Discontinued)

$

$

Not available

51

Echo 900602-00006

WASHER 6

$0.99

$

In Stock, Qty 18

0

52

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

53

Echo 270206-02911

ARM, SHUTTER CONTROL

$

$

Currently unavailable

54

Echo 701020-01110

CONNECTOR

$3.99

$

Usually ships in 2-4 days

0

55

Echo 701026-03210

ROD, CONTROL LEVER

$

$

Currently unavailable

57

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

58

Echo 300105-03210

PLATE

$

$

Currently unavailable

59

Echo 900515-00006

NUT, FLANGE M6×1

$0.99

$

Usually ships in 2-4 days

0

60

Echo 200910-03210

CUSHION

$

$

Currently unavailable

61

Echo 300220-01110

BRACKET
(Superseded to Discontinued)

$

$

Not available

62

Echo 300010-03210

FRAME, BACKPACK

$

$

Not available

63

Echo 200916-03210

CUSHION

$19.99

$

Usually ships in 2-4 days

0

64

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

66

Echo 900216-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

67

Echo 300328-03210

WASHER 5.2×22×2.0

$1.99

$

Usually ships in 2-4 days

0

68

Echo 433020-00830

NUT, LOCK
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

69

Echo 300322-03210

PAD, SHOULDER

$

$

Not available

70

Echo 300300-03210

HARNESS
(Superseded to 30030203210)

$90.99

$

Usually ships in 2-4 days

0

71

Echo 300319-01611

RING, HARNESS

$0.99

$

In Stock, Qty 5

0

73

Echo 701021-02910

KNOB
(Superseded to E151000010)

$3.49

$

Usually ships in 2-4 days

0

74

Echo 701005-02911

LEVER

$

$

Currently unavailable

75

Echo 178010-02910

THROTTLE CONTROL ASSY

$

$

Currently unavailable

76

Echo 701111-03210

DIAL

$

$

Currently unavailable

77

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

78

Echo 890157-03710

LABEL

$

$

Currently unavailable

79

Echo 701105-03210

BRACKET, DIAL

$

$

Currently unavailable

80

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

81

Echo 900142-05010

BOLT 5×10

$

$

Currently unavailable

82

Echo 178017-02910

SWIVEL

$

$

Currently unavailable

83

Echo 90070000003

E-RING 3

$0.99

$

In Stock, Qty 9

0

84

Echo 701110-03210

BRACKET, LEVER

$

$

Currently unavailable

85

Echo 178021-02910

ADJUSTER, CABLE

$

$

Currently unavailable

86

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

87

Echo 132200-03210

VALVE ASSY

$14.99

$

Usually ships in 2-4 days

0

89

Echo 132511-00660

WASHER
(Superseded to Discontinued)

$

$

Not available

90

Echo 900500-00004

NUT

$0.99

$

In Stock, Qty 20+

0

91

Echo 900246-03016

SCREW 3×6

$

$

Currently unavailable

92

Echo 163412-00660

PLATE, SWITCH

$

$

Not available

93

Echo 163410-00661

KNOB, SWITCH
(Superseded to Discontinued)

$

$

Not available

94

Echo 163414-02910

KNOB, SWITCH

$

$

Currently unavailable

95

Echo 163910-00660

COVER

$3.99

$

Usually ships in 2-4 days

0

96

Echo 178001-03310

CABLE, THROTTLE

$13.99

$

Usually ships in 2-4 days

0

97

Echo 162010-02910

SPARK PLUG - RCJ7Y

$

$

Currently unavailable

98

Echo 162021-02910

COIL, EXCITER

$

$

Currently unavailable

99

Echo 178016-02910

TUBE

$

$

Currently unavailable

103

Echo 900605-00004

WASHER, SPRING 4

$0.99

$

In Stock, Qty 20+

0
