DM-4500 - Echo Duster / Mister Part List 4 Parts Diagram

Duster / Mister

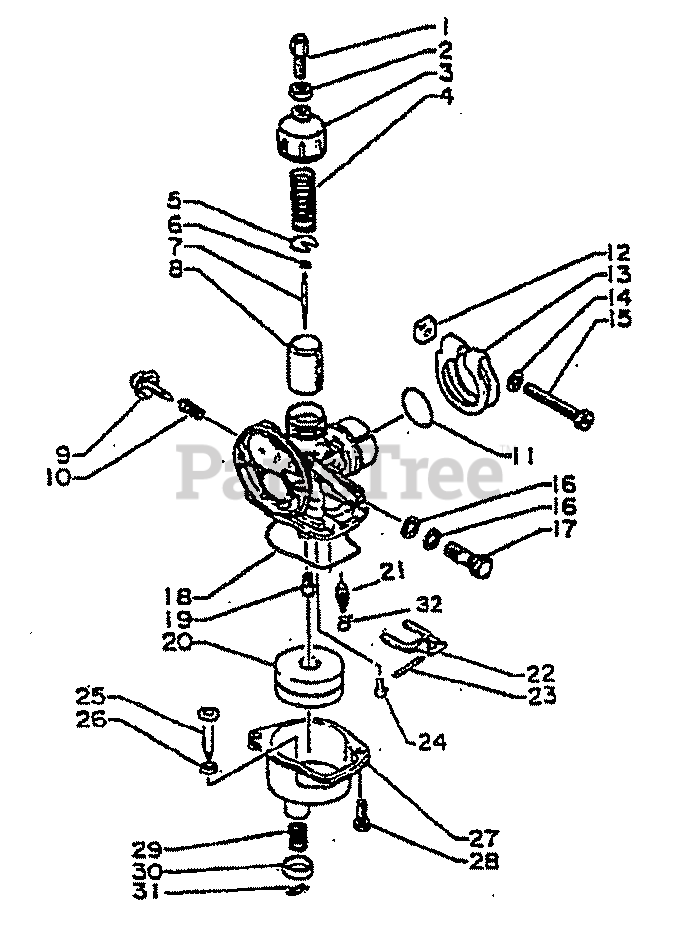

Part List 4 Parts Diagram

  • Title

Echo 120000-03213

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

Echo 120158-03620

ADJUSTER, CABLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 120111-04730

NUT
(Superseded to Discontinued)

$

$

Not available

3

Echo 120113-02410

COVER, TOP

$

$

Currently unavailable

4

Echo 120114-03310

SPRING, THROTTLE

$

$

Currently unavailable

5

Echo 120115-08020

WASHER, SPRING SUPPORT
(Superseded to Discontinued)

$

$

Not available

6

Echo 120116-10211

E-RING
(Superseded to Discontinued)

$

$

Not available

7

Echo 120103-02910

NEEDLE, JET

$15.99

$

Usually ships in 2-4 days

0

8

Echo 120118-03310

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 120159-27930

SCREW, IDLE ADJUST

$

$

Currently unavailable

10

Echo 120160-01321

SPRING, IDLE ADJUST

$

$

Not available

11

Echo 120125-02310

O-RING

$

$

Currently unavailable

12

Echo 120151-10210

NUT
(Superseded to Discontinued)

$

$

Not available

13

Echo 120146-00220

CLIP

$

$

Currently unavailable

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 120147-02910

SCREW

$

$

Currently unavailable

16

Echo 120130-10210

GASKET
(Superseded to Discontinued)

$

$

Not available

17

Echo 120131-00120

BOLT, BANJO
(Superseded to Discontinued)

$

$

Not available

18

Echo 120123-10210

GASKET, CHAMBER
(Superseded to Discontinued)

$

$

Not available

19

Echo 120122-03210

JET, MAIN
(Superseded to Discontinued)

$

$

Not available

20

Echo 120133-05730

FLOAT
(Superseded to Discontinued)

$

$

Not available

21

Echo 120120-05731

VALVE, INLET NEEDLE
(Superseded to 12010205731)

$29.99

$

Usually ships in 2-4 days

0

22

Echo 120121-27430

ARM, FLOAT
(Superseded to Discontinued)

$

$

Not available

23

Echo 120132-10211

PIN
(Superseded to Discontinued)

$

$

Not available

24

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, only 4 left!

0

25

Echo 120177-03310

SHAFT, LINK

$

$

Currently unavailable

26

Echo 120178-03311

O-RING
(Superseded to Discontinued)

$

$

Not available

27

Echo 120124-03311

CHAMBER, FLOAT
(Superseded to Discontinued)

$

$

Not available

28

Echo 900241-04012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

29

Echo 120179-28930

SPRING

$3.99

$

Usually ships in 2-4 days

0

30

Echo 120180-03311

COLLAR

$5.49

$

Usually ships in 2-4 days

0

31

Echo 120181-03312

CLIP

$2.99

$

Usually ships in 2-4 days

0

32

Echo 120182-27430

CLIP

$

$

Currently unavailable
