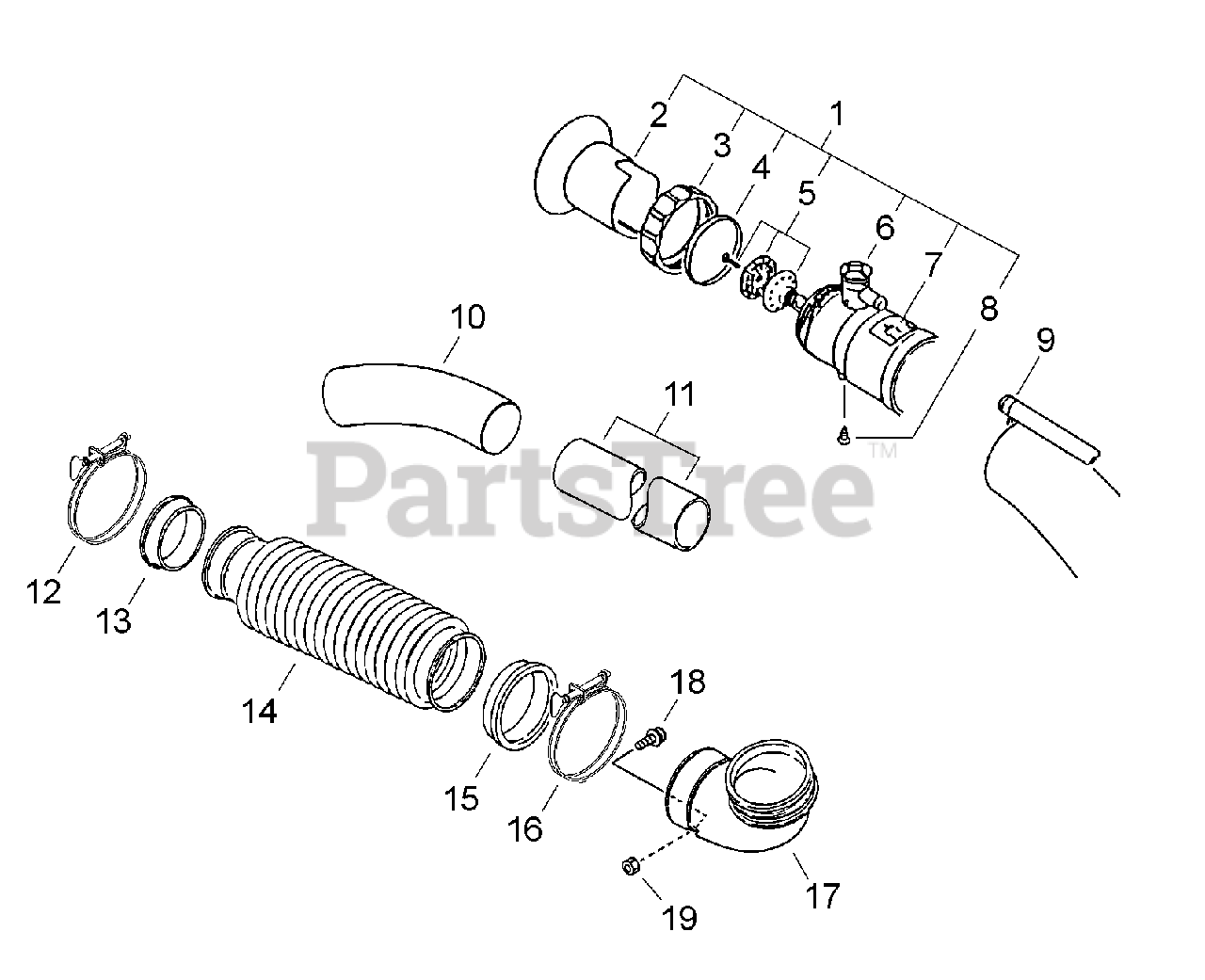

DM-4610 - Echo Duster / Mister (SN: 35001001 - 35999999) Blower Tubes Parts Diagram

Duster / Mister

Blower Tubes Parts Diagram

  • Title

1

Echo P050008390

NOZZLE ASSY, MISTING
(Superseded to 21250001112)

Note: Includes ITEMS 2-8

$46.99

$

Usually ships in 2-4 days

0

2

Echo 212515-01110

COLLAR, NOZZLE

$13.99

$

Usually ships in 2-4 days

0

3

Echo 212514-01110

NUT 60

$4.99

$

Usually ships in 2-4 days

0

4

Echo 212513-01110

RING, NOZZLE

$1.99

$

Usually ships in 2-4 days

0

5

Echo 222000-01110

NOZZLE ASSY

$9.99

$

Usually ships in 2-4 days

0

6

Echo 212501-01111

ADJUSTER, VOLUME

$25.99

$

Usually ships in 2-4 days

0

7

Echo 89003101110

LABEL, MIST

$1.99

$

Usually ships in 2-4 days

0

8

Echo 90024605012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

9

Echo V495000310

CLAMP

$0.99

$

Usually ships in 2-4 days

0

10

Echo 210023-00210

TUBE, BLOWER - CURVED

$12.99

$

In Stock, only 4 left!

0

11

Echo 210014-01610

TUBE, BLOWER - STRAIGHT

$18.99

$

Usually ships in 2-4 days

0

12

Echo V495001170

CLAMP
(Superseded to V495001171)

$10.99

$

Usually ships in 2-4 days

0

13

Echo 21003204110

COLLAR

$9.99

$

Usually ships in 2-4 days

0

14

Echo 21001304111

TUBE, FLEXIBLE
(Superseded to 21001304112)

$71.99

$

Usually ships in 2-4 days

0

15

Echo 21003604110

COLLAR

$12.99

$

Usually ships in 2-4 days

0

16

Echo V495001200

CLAMP
(Superseded to V495001201)

$10.99

$

Usually ships in 2-4 days

0

17

Echo 21001105510

TUBE, BLOWER - ELBOW

$51.99

$

Usually ships in 2-4 days

0

18

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

19

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0
