DM-4610 - Echo Duster / Mister (SN: 35001001 - 35999999) Fuel System Parts Diagram

Duster / Mister

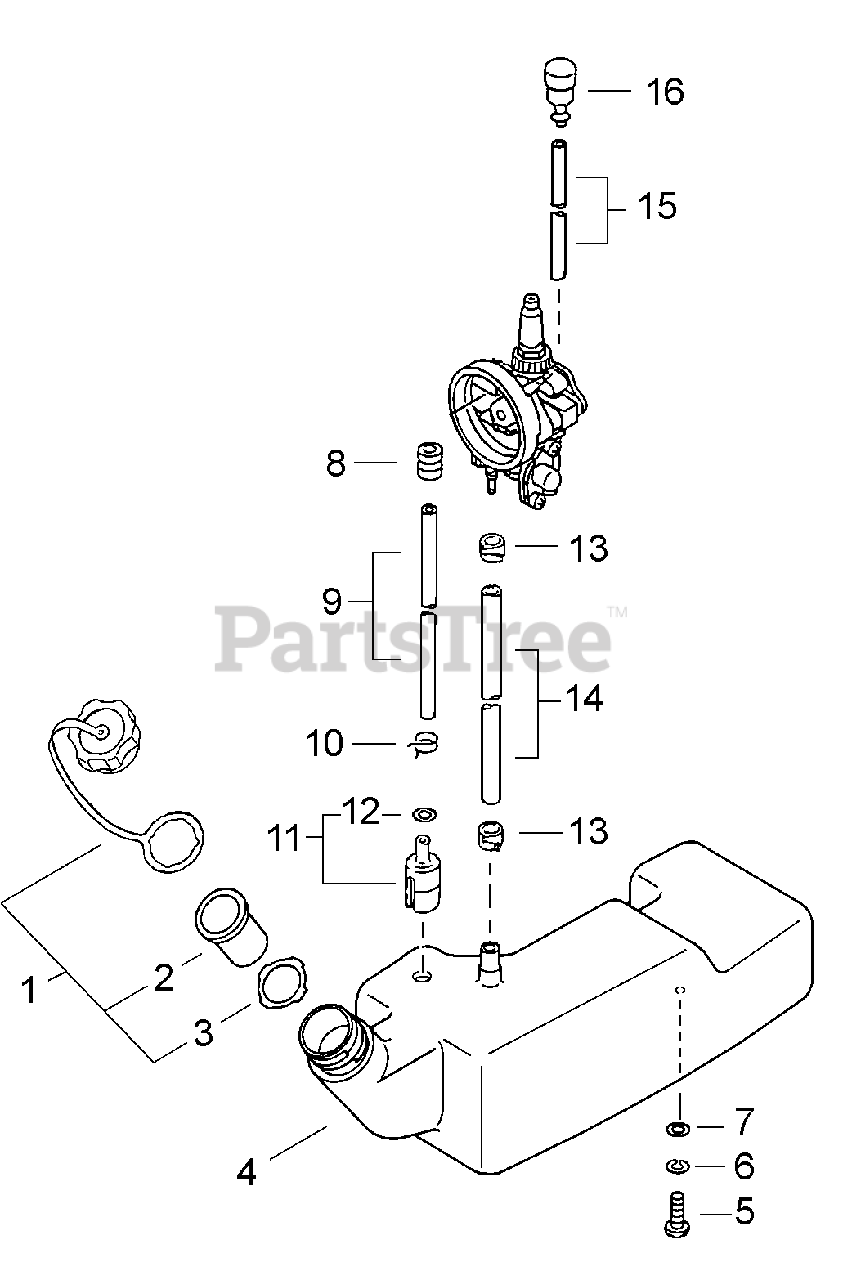

Fuel System Parts Diagram

  • Title

1

Echo 13160021060

CAP ASSY, FUEL
(Superseded to P100006510)

Note: Includes ITEMS 2-3

$17.99

$

Usually ships in 2-4 days

0

2

Echo 131003-05330

CAP, VENT

$3.49

$

Usually ships in 2-4 days

0

3

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

$

$

Not available

4

Echo 13100506215

TANK, FUEL

$35.99

$

Usually ships in 2-4 days

0

5

Echo 90022006014

SCREW 6×14

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

7

Echo 145642-00760

WASHER 6.5×18×1.6

$0.99

$

Usually ships in 2-4 days

0

8

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 11

0

9

Echo 13201035430

PIPE, FUEL 3×6×230
(Superseded to 13201035431)

$9.49

$

In Stock, only 2 left!

0

10

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120505630

FILTER, FUEL

Note: Includes ITEM 12

$17.99

$

Usually ships in 2-4 days

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 13201314010

CLIP 10.5 MM

$3.99

$

Usually ships in 2-4 days

0

14

Echo 13201006410

PIPE

$5.49

$

Usually ships in 2-4 days

0

15

Echo 13201006530

PIPE, FUEL 3×6×85 BLACK
(Superseded to 13201006531)

$2.99

$

In Stock, only 2 left!

0

16

Echo 13200105510

VENT ASSY

$7.49

$

Usually ships in 2-4 days

0
