DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Blower Tubes Parts Diagram

Duster / Mister

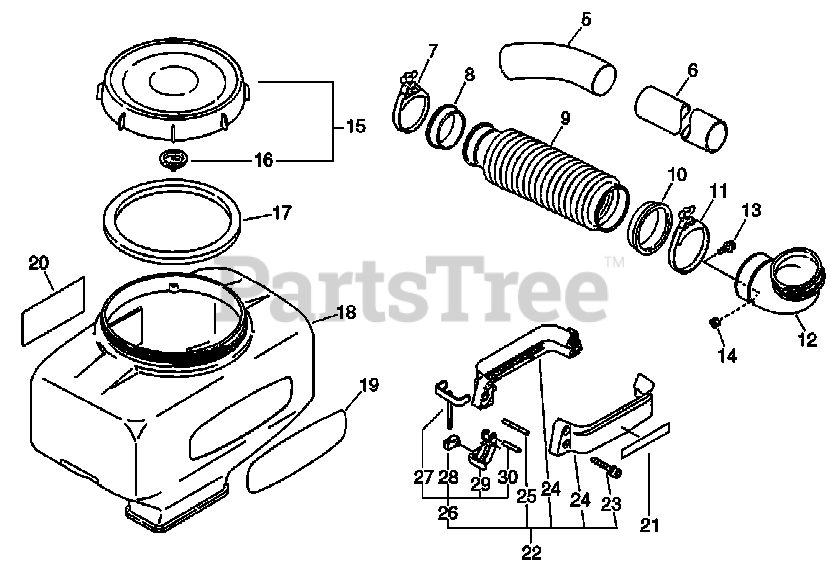

Blower Tubes Parts Diagram

  • Title

5

Echo 21002300210

TUBE, BLOWER - CURVED

$12.99

$

In Stock, only 4 left!

0

6

Echo 21001401610

TUBE, BLOWER - STRAIGHT

$18.99

$

Usually ships in 2-4 days

0

7

Echo V495001170

CLAMP
(Superseded to V495001171)

$10.99

$

Usually ships in 2-4 days

0

8

Echo 21003204110

COLLAR

$9.99

$

Usually ships in 2-4 days

0

9

Echo 21001304111

TUBE, BLOWER - FLEXIBLE
(Superseded to 21001304112)

$71.99

$

Usually ships in 2-4 days

0

10

Echo 21003604110

COLLAR

$12.99

$

Usually ships in 2-4 days

0

11

Echo V495001200

CLAMP
(Superseded to V495001201)

$10.99

$

Usually ships in 2-4 days

0

12

Echo 21001105510

TUBE, BLOWER - ELBOW

$51.99

$

Usually ships in 2-4 days

0

13

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 25000105610

CAP, CHEMICAL TANK

Note: Includes ITEM 16

$28.99

$

Usually ships in 2-4 days

0

16

Echo 25001300310

VENT, TANK

$2.99

$

Usually ships in 2-4 days

0

17

Echo 25001102011

GASKET, CAP

$14.99

$

Usually ships in 2-4 days

0

18

Echo 25001708012

TANK, CHEMICAL - 23 LITER
(Superseded to 25001708013)

$204.99

$

Usually ships in 2-4 days

0

19

Echo X502000440

LABEL - ECHO

$7.49

$

Usually ships in 2-4 days

0

20

Echo 89016009461

LABEL - CAUTION

$1.99

$

In Stock, Qty 16

0

21

Echo X503008350

LABEL - MODEL

$4.99

$

Usually ships in 2-4 days

0

22

Echo 27000006311

BRACKET ASSY

Note: Includes ITEMS 23-30

$236.99

$

Usually ships in 2-4 days

0

23

Echo 9114805035

SCREW - 5X35

$2.99

$

Usually ships in 2-4 days

0

24

Echo 25091006310

BRACKET

$32.99

$

Usually ships in 2-4 days

0

25

Echo 25091406210

PIN

$17.99

$

Usually ships in 2-4 days

0

26

Echo 25090206310

CLAMP ASSY

$142.99

$

Usually ships in 2-4 days

0

27

Echo 25091506310

CLAMP

$50.99

$

Usually ships in 2-4 days

0

28

Echo 25093006210

CONNECTOR

$9.49

$

Usually ships in 2-4 days

0

29

Echo 25093206210

BRACKET, TANK

$48.99

$

Usually ships in 2-4 days

0

30

Echo 90033370380

PIN
(Superseded to V625000010)

$3.99

$

Usually ships in 2-4 days

0
