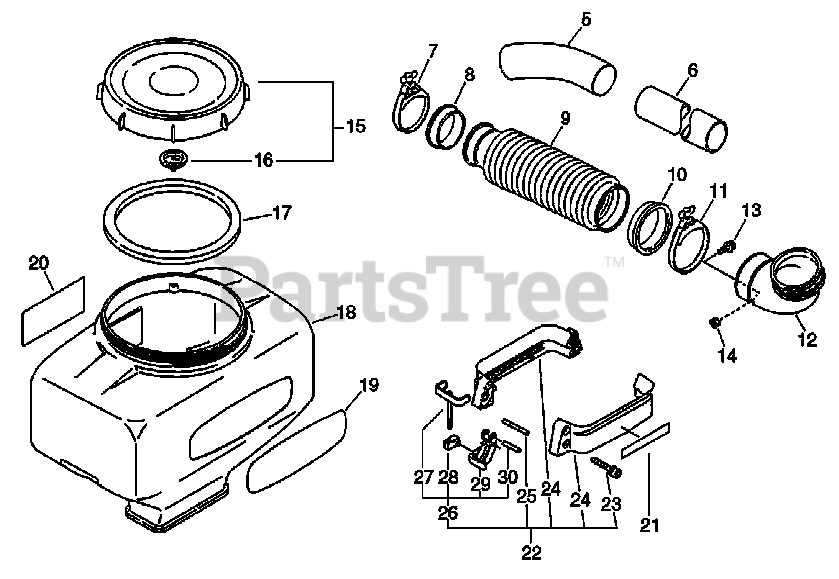

DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Blower Tubes Parts Diagram

Duster / Mister

Blower Tubes Parts Diagram

  • Title

5

Echo 210023-00210

TUBE, BLOWER - CURVED

$12.99

$

In Stock, only 4 left!

0

6

Echo 210014-01610

TUBE, BLOWER - STRAIGHT

$18.99

$

Usually ships in 2-4 days

0

7

Echo V495001170

CLAMP
(Superseded to V495001171)

$10.99

$

Usually ships in 2-4 days

0

8

Echo 21003204110

COLLAR

$9.99

$

Usually ships in 2-4 days

0

9

Echo 21001304111

TUBE, FLEXIBLE
(Superseded to 21001304112)

$71.99

$

Usually ships in 2-4 days

0

10

Echo 21003604110

COLLAR

$12.99

$

Usually ships in 2-4 days

0

11

Echo V495001200

CLAMP
(Superseded to V495001201)

$10.99

$

Usually ships in 2-4 days

0

12

Echo 21001105510

TUBE, BLOWER - ELBOW

$51.99

$

Usually ships in 2-4 days

0

13

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

14

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

15

Echo 250001-05610

CAP ASSY, CHEMICAL TANK

Note: Includes ITEM 16

$28.99

$

Usually ships in 2-4 days

0

16

Echo 250013-00310

CONNECTOR, PIPE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 25001102011

GASKET, CAP

$14.99

$

Usually ships in 2-4 days

0

18

Echo 25001708012

TANK, CHEMICAL 23L
(Superseded to 25001708013)

$204.99

$

Usually ships in 2-4 days

0

19

Echo X502000440

LABEL, ECHO

$7.49

$

Usually ships in 2-4 days

0

20

Echo 89016009461

LABEL, CAUTION - ISO

$1.99

$

In Stock, Qty 15

0

21

Echo X503008350

LABEL, DM-4610

$4.99

$

Usually ships in 2-4 days

0

22

Echo 27000006311

BRACKET ASSY, CHEMICAL TANK

Note: Includes ITEMS 23-30

$236.99

$

Usually ships in 2-4 days

0

23

Echo 9114805035

SCREW, TAPPING HS M5×35

$2.99

$

Usually ships in 2-4 days

0

24

Echo 25091006310

BRACKET, CHEMICAL TANK

$32.99

$

Usually ships in 2-4 days

0

25

Echo 25091406210

PIN, LOCATING

$17.99

$

Usually ships in 2-4 days

0

26

Echo 25090206310

RETAINER ASSY, CHEMICAL TANK

$142.99

$

Usually ships in 2-4 days

0

27

Echo 25091506310

BOLT

$50.99

$

Usually ships in 2-4 days

0

28

Echo 25093006210

CONNECTOR, BRACKET

$9.49

$

Usually ships in 2-4 days

0

29

Echo 25093206210

RETAINER, CHEMICAL TANK

$48.99

$

Usually ships in 2-4 days

0

30

Echo 90033370380

PIN 7×37
(Superseded to V625000010)

$3.99

$

Usually ships in 2-4 days

0
