DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Carburetor -- WYK-200 Parts Diagram

Duster / Mister

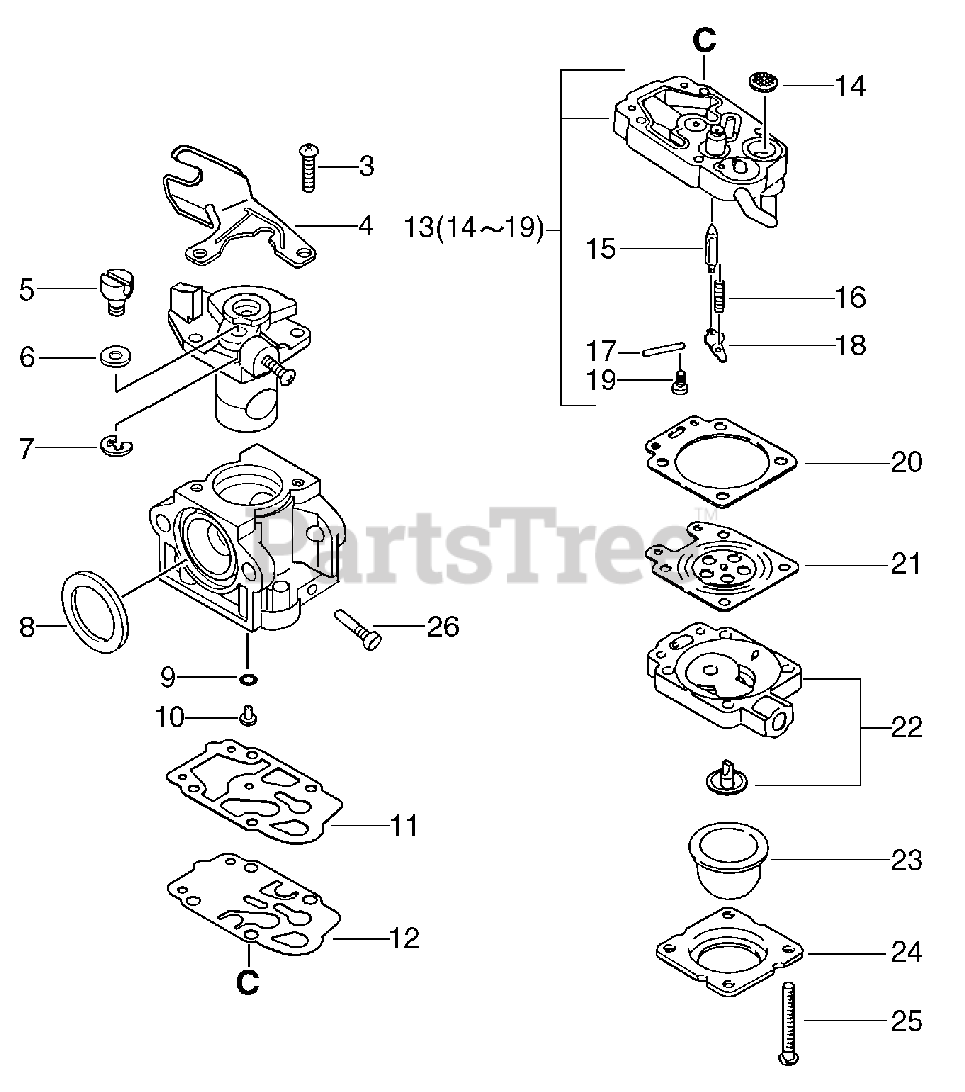

Carburetor -- WYK-200 Parts Diagram

  • Title

Echo A021001040

CARBURETOR WYK-200
(Superseded to A021001041)

Note: Includes ITEMS 3-26

$217.99

$

In Stock, only 1 left!

0

3

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

4

Echo P003000180

BRACKET, CABLE

$6.99

$

In Stock, only 2 left!

0

5

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

6

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

7

Echo 12317307930

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

8

Echo 12314312110

SEAL

$4.99

$

In Stock, only 3 left!

0

9

Echo 12318340630

O-RING
(Superseded to 12318305960)

$19.99

$

In Stock, only 2 left!

0

10

Echo P003000990

JET

$6.49

$

Usually ships in 2-4 days

0

11

Echo 12312540630

GASKET, PUMP

$5.99

$

In Stock, only 2 left!

0

12

Echo 12311240630

DIAPHRAGM, PUMP

$14.99

$

In Stock, only 1 left!

0

13

Echo 12317905560

BASE, PURGE

$20.99

$

In Stock, only 1 left!

0

14

Echo 12312610631

STRAINER

$1.99

$

In Stock, Qty 7

0

15

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

16

Echo 12312205560

SPRING, METERING LEVER

$4.99

$

Usually ships in 2-4 days

0

17

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 4 left!

0

18

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

19

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12314005560

GASKET, METERING

$4.99

$

In Stock, only 1 left!

0

21

Echo P003000090

DIAPHRAGM, METERING

$20.99

$

In Stock, only 4 left!

0

22

Echo 12318005560

PURGE BASE ASSY

$8.99

$

In Stock, Qty 5

0

23

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

24

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 3 left!

0

25

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

26

Echo P003001130

NEEDLE - HIGH SPEED

$12.99

$

Usually ships in 2-4 days

0
