DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Chemical Tank Parts Diagram

Duster / Mister

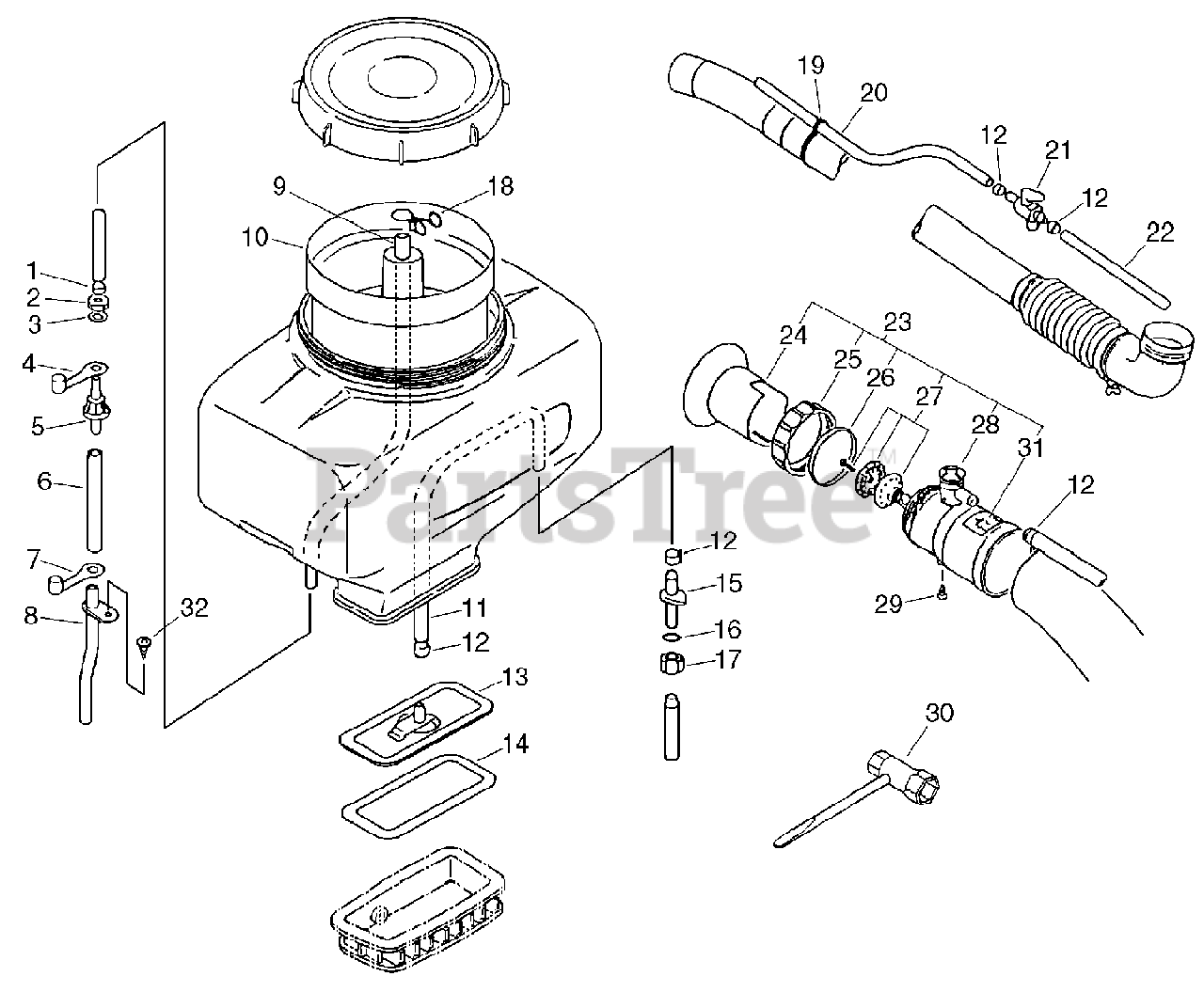

Chemical Tank Parts Diagram

  • Title

1

Echo 13201314010

CLIP 10.5 MM

$3.99

$

Usually ships in 2-4 days

0

2

Echo 36301900310

NUT 12

$2.49

$

Usually ships in 2-4 days

0

3

Echo 363018-00310

WASHER 12×20×1
(Superseded to V309000170)

$0.99

$

In Stock, only 1 left!

0

4

Echo 363-02200510

PLUG

$2.99

$

Usually ships in 2-4 days

0

5

Echo 363017-00310

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

6

Echo 363011-00210

PIPE, OUTER PRESSURE 7×11×170L

$2.99

$

Usually ships in 2-4 days

0

7

Echo 363021-01110

PLUG

$1.99

$

Usually ships in 2-4 days

0

8

Echo E105000000

PIPE, PRESSURE Ø5.1
(Superseded to E105000001)

$5.99

$

Usually ships in 2-4 days

0

9

Echo 363014-03210

PIPE, INNER PRESSURE 7×11×500BL

$2.49

$

Usually ships in 2-4 days

0

10

Echo 254210-03210

FILTER

$15.99

$

Usually ships in 2-4 days

0

11

Echo 38201101110

PIPE, DISCHARGE 9×13×350

$3.49

$

Usually ships in 2-4 days

0

12

Echo V495000310

CLAMP

$0.99

$

Usually ships in 2-4 days

0

13

Echo 25301008010

PLATE, BOTTOM
(Superseded to P021045340)

$89.99

$

Usually ships in 2-4 days

0

14

Echo 27011906210

GASKET, SHUTTER
(Superseded to P021045340)

$89.99

$

Usually ships in 2-4 days

0

15

Echo 357010-01110

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

16

Echo 357014-01110

O-RING 3×13

$1.99

$

Usually ships in 2-4 days

0

17

Echo 357015-01110

NUT 14

$3.99

$

Usually ships in 2-4 days

0

18

Echo 363023-01110

CLIP
(Superseded to 357013-00210)

$3.99

$

Usually ships in 2-4 days

0

19

Echo 35791100111

CLIP, TUBE Ø55

$2.49

$

Usually ships in 2-4 days

0

20

Echo 35701102410

PIPE, DISCHARGE 9×13×650L

$4.49

$

Usually ships in 2-4 days

0

21

Echo 35810001111

COCK, PET
(Superseded to 35810001112)

$15.99

$

Usually ships in 2-4 days

0

22

Echo 35703201110

PIPE, DISCHARGE 9×13×720L

$5.99

$

Usually ships in 2-4 days

0

23

Echo 212500-01111

NOZZLE ASSY, MISTING
(Superseded to 21250001112)

Note: Includes ITEMS 24-31

$46.99

$

Usually ships in 2-4 days

0

24

Echo 212515-01110

COLLAR, NOZZLE

$13.99

$

Usually ships in 2-4 days

0

25

Echo 212514-01110

NUT 60

$4.99

$

Usually ships in 2-4 days

0

26

Echo 212513-01110

RING, NOZZLE

$1.99

$

Usually ships in 2-4 days

0

27

Echo 222000-01110

NOZZLE ASSY

$9.99

$

Usually ships in 2-4 days

0

28

Echo 212501-01111

ADJUSTER, VOLUME

$25.99

$

Usually ships in 2-4 days

0

29

Echo 90024605012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

31

Echo 89003101110

LABEL, MIST

$1.99

$

Usually ships in 2-4 days

0

30

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 20+

0

32

Echo 90028605016

SCREW 5×16 SUS

$0.99

$

Usually ships in 2-4 days

0
