DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Engine Cover, Engine Parts Diagram

Duster / Mister

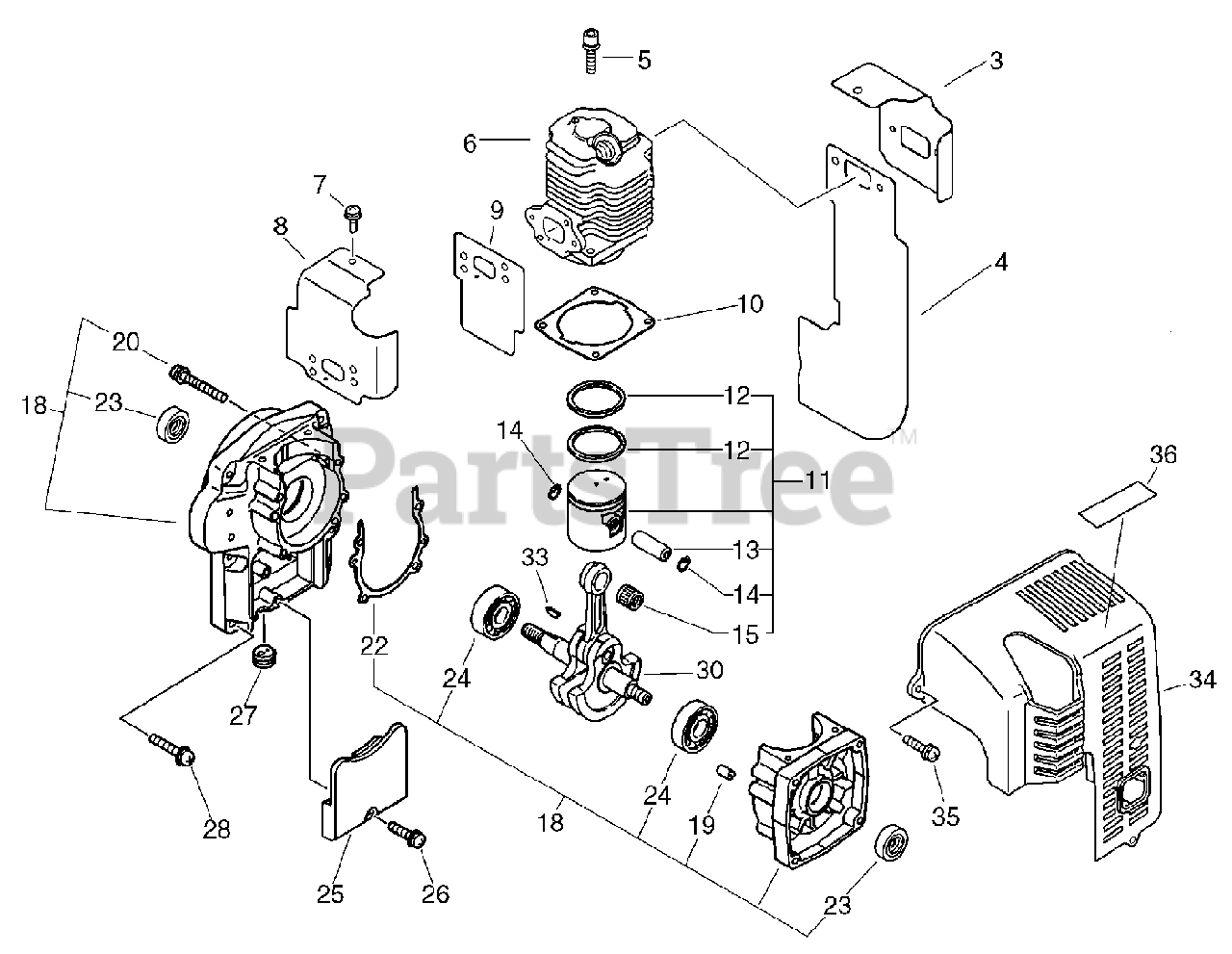

Engine Cover, Engine Parts Diagram

  • Title

3

Echo 10151406210

COVER, CYLINDER - EXHAUST
(Superseded to A160000450)

$20.99

$

In Stock, only 2 left!

0

4

Echo 14551206211

SHIELD, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

5

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

6

Echo A130000210

CYLINDER

$198.99

$

Usually ships in 2-4 days

0

7

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

8

Echo A160000680

SHIELD, CYLINDER - INTAKE

$9.49

$

Usually ships in 2-4 days

0

9

Echo 13001606211

SHIELD, INTAKE

$0.99

$

In Stock, Qty 18

0

10

Echo 10101010722

GASKET, CYLINDER

$1.99

$

In Stock, Qty 6

0

11

Echo P021002540

PISTON KIT

Note: Includes ITEMS 12-15

$84.99

$

In Stock, only 1 left!

0

12

Echo 10001110530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

13

Echo 10001300410

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

14

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

15

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

18

Echo 10020408261

CRANKCASE KIT

Note: Includes ITEMS 19-24

$279.99

$

Usually ships in 2-4 days

0

19

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 15

0

20

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 15

0

22

Echo 10024210721

GASKET, CRANKCASE

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10021300310

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

24

Echo 90081036202

BEARING, BALL - 6202

$11.99

$

In Stock, only 1 left!

0

25

Echo 15912908261

COVER, DUST

$6.99

$

In Stock, only 2 left!

0

26

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, only 3 left!

0

27

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

28

Echo 90029205025

SCREW - 5X25

$2.99

$

Usually ships in 2-4 days

0

30

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

0

33

Echo 90032303014

KEY - 3X14

$1.99

$

In Stock, Qty 20+

0

34

Echo 10401606410

COVER, ENGINE

$63.99

$

Usually ships in 2-4 days

0

35

Echo 90029205020

SCREW - 5X20

$2.99

$

Usually ships in 2-4 days

0

36

Echo X505002310

LABEL - HOT SURFACE

$2.49

$

In Stock, only 2 left!

0
