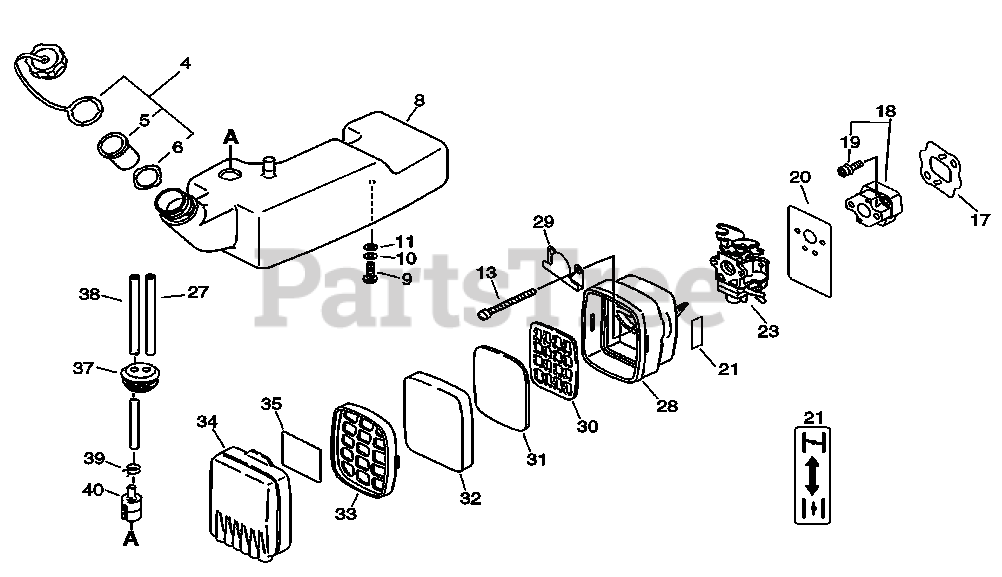

DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Fuel System, Intake Parts Diagram

Duster / Mister

Fuel System, Intake Parts Diagram

  • Title

4

Echo 13160021060

CAP ASSY, FUEL
(Superseded to P100006510)

Note: Includes ITEMS 5-6

$17.99

$

Usually ships in 2-4 days

0

5

Echo 131003-05330

CAP, VENT

$3.49

$

Usually ships in 2-4 days

0

6

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

$

$

Not available

8

Echo A350000342

TANK, FUEL

$35.99

$

Usually ships in 2-4 days

0

9

Echo 90022006014

SCREW 6×14

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

11

Echo 145642-00760

WASHER 6.5×18×1.6

$0.99

$

Usually ships in 2-4 days

0

13

Echo 9133105060

SCREW 5×60

$1.49

$

Usually ships in 2-4 days

0

17

Echo V103000000

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

18

Echo P021010210

INSULATOR KIT, INTAKE
(Superseded to P021010213)

Note: Includes ITEM 19

$15.99

$

Usually ships in 2-4 days

0

19

Echo 90010605030

BOLT 5×30

$0.99

$

In Stock, Qty 8

0

20

Echo V103000221

GASKET, INTAKE
(Superseded to P021040350)

$21.99

$

Usually ships in 2-4 days

0

21

Echo 89012165830

LABEL, CHOKE

$2.49

$

Usually ships in 2-4 days

0

23

Echo A021001040

CARBURETOR
(Superseded to A021001041)

$217.99

$

In Stock, only 1 left!

0

27

Echo V471000550

PIPE, FUEL RETURN 3×6×145

$2.49

$

In Stock, Qty 20+

0

28

Echo P021008620

CASE ASSY, AIR FILTER

$17.99

$

Usually ships in 2-4 days

0

29

Echo A244000040

PLATE, PREVENT

$3.99

$

Usually ships in 2-4 days

0

30

Echo 130319-03710

GRID, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

31

Echo 130317-03710

FILTER, AIR

$5.99

$

Usually ships in 2-4 days

0

32

Echo 130310-02910

PRE-FILTER, FOAM

$6.49

$

Usually ships in 2-4 days

0

33

Echo 130311-03710

GRID, PRE-FILTER

$3.49

$

Usually ships in 2-4 days

0

34

Echo 130313-03710

COVER, AIR FILTER

$

$

Not available

35

Echo 89018703710

LABEL, AIR FILTER

$1.99

$

Usually ships in 2-4 days

0

37

Echo 13211556230

GROMMET, FUEL

$4.49

$

Usually ships in 2-4 days

0

38

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

$4.49

$

In Stock, only 3 left!

0

39

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

40

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0
