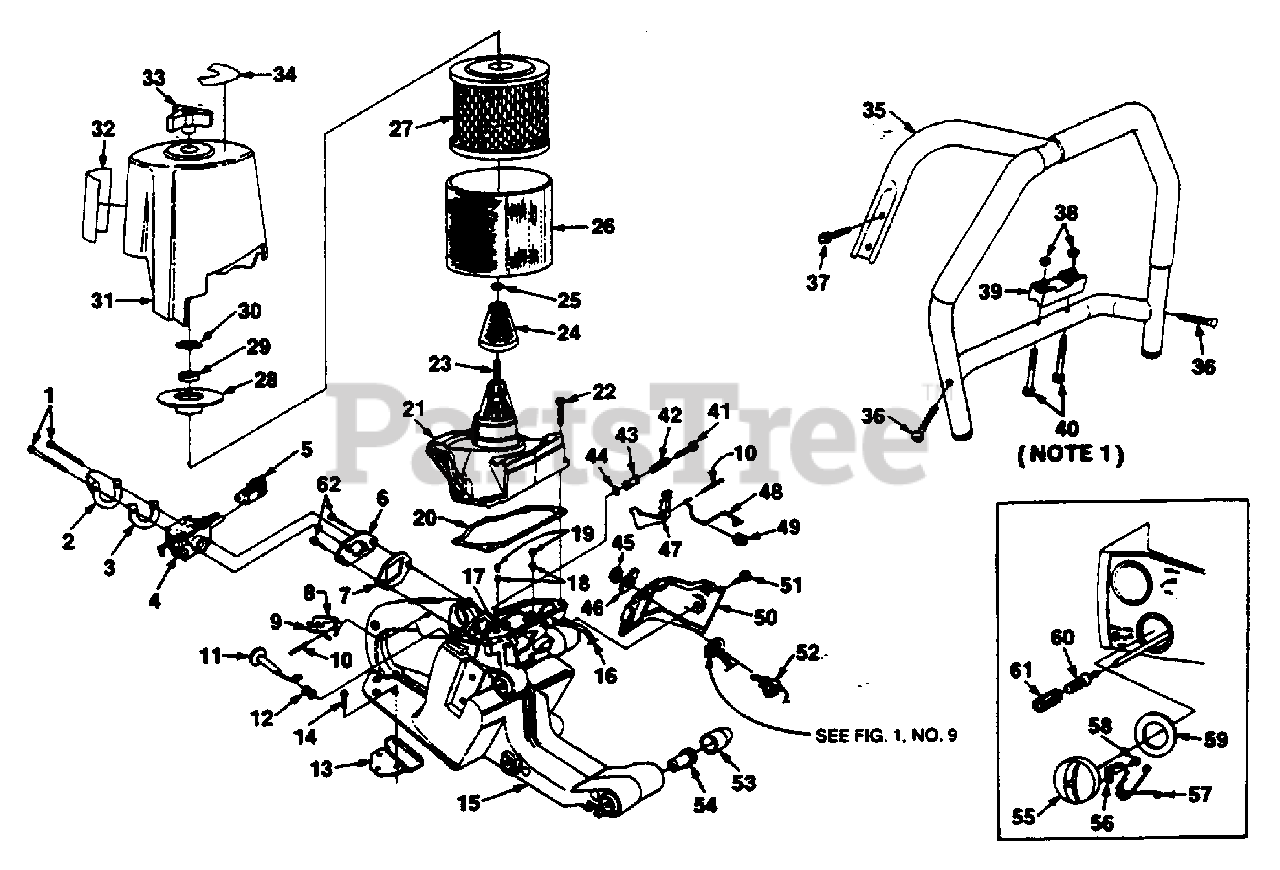

DM 54 (UT-05040) - Homelite Multi Purpose Saw Handle, Air Cleaner & Carburetor Parts Diagram

Multi Purpose Saw

Handle, Air Cleaner & Carburetor Parts Diagram

  • Title

1

Homelite 82527

SCREW- Socket Hd.
(Superseded to 660622001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 49673

SHIELD- Carburetor

$

$

Not available

3

Homelite 49671

GASKET- Carburetor shield

$

$

Not available

4

Homelite A97318

CARBURETOR- (Walbro WJ-2)
(Superseded to A07571)

$

$

Not available

5

Homelite 97295

GROMMET
(Superseded to UP06466)

$18.99

$

Usually ships in 3-7 days

0

6

Homelite 972902

ADAPTOR- Carburetor
(Superseded to UP07159)

$33.99

$

Usually ships in 3-7 days

0

7

Homelite 97291

GASKET- Carburetor
(Superseded to PS97291)

$

$

Not available

8

Homelite 93385

LOCK- Trigger
(Superseded to UP07466)

$

$

Not available

9

Homelite 97265

SPRING- Flat
(Superseded to UP08045)

$

$

Not available

10

Homelite 68548

PIN- Trigger

$

$

Not available

11

Homelite 97292

ROD- Choke
(Superseded to UP06645)

$

$

Not available

12

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

13

Homelite A49640

PLATE- Wear
(Superseded to UP07770)

$

$

Currently unavailable

14

Homelite 88041

SCREW- (8-32 x 3/8")

$

$

Not available

15

Homelite A49144A

HOUSING- Engine

$

$

Currently unavailable

16

Homelite 9315723

TUBING- Rubber (5 3/4") (Pulse Line)

$

$

Not available

17

Homelite 9311223

TUBING- Rubber (5 3/4") (Fuel Line)

$

$

Currently unavailable

18

Homelite 96841

VALVE- Check
(Superseded to UP07204)

$

$

Not available

19

Homelite 93410

FILTER
(Superseded to UP08023)

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 97298

GASKET
(Superseded to UP06467)

$

$

Not available

21

Homelite 49509

COVER- Carburetor chamber
(Superseded to UP06405)

$35.99

$

Usually ships in 3-7 days

0

22

Homelite 80582

SCREW- Pan hd. (8-32 x 5/8")

$

$

Not available

23

Homelite 49511A

BOLT
(Superseded to UP06407)

$

$

Not available

24

Homelite 49555

PREFILTER

$24.99

$

Usually ships in 3-7 days

0

25

Homelite 94150

"O" RING

$

$

Not available

26

Homelite 49513

FOAM- Air filter

$

$

Not available

27

Homelite 49512

ELEMENT- Air filter

$

$

Not available

28

Homelite 46786

COVER- Filter element
(Superseded to 498981)

$

$

Not available

29

Homelite 81196

NUT- Hex (5/16-18)
(Superseded to 671076001)

$2.49

$

In Stock, only 3 left!

0

30

Homelite 46072

RING- Retaining

$

$

Not available

31

Homelite 49515

COVER- Filter

$

$

Not available

32

Homelite 00427

DECAL- Warning

$5.49

$

Usually ships in 3-7 days

0

33

Homelite 46076

KNOB
(Superseded to 06365)

$

$

Not available

34

Homelite 49263

DECAL

$8.49

$

Usually ships in 3-7 days

0

35

Homelite A49595

HANDLE BAR

$

$

Currently unavailable

36

Homelite 82378

SCREW- Mach. hd. (10-24 x 11/2")

$

$

Not available

37

Homelite 82399

SCREW- Oval hd.
(Superseded to 46136)

$

$

Not available

38

Homelite 96212

NUT- Locking (1/4-28")

$

$

Not available

39

Homelite 496222

BRACKET- Handle bar

$

$

Not available

40

Homelite 82532

SCREW- Mach Oval hd. (1/4-20 x 1/2")

$

$

Not available

41

Homelite 95671

PIN-Throttle lock
(Superseded to UP05997)

$

$

Not available

42

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 95989

BUSHING
(Superseded to UP06854)

$

$

Not available

44

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

45

Homelite 72084A1

NUT- Hex
(Superseded to UP04146)

$5.99

$

Usually ships in 3-7 days

0

46

Homelite 12793A

PLATE- Indicating
(Superseded to UP07113)

$

$

Not available

47

Homelite 93842

TRIGGER- Throttle

$

$

Not available

48

Homelite 97294

ROD- Throttle
(Superseded to UP06465)

$

$

Not available

49

Homelite A49135

GROMMET

$

$

Currently unavailable

50

Homelite 97306

COVER- Switch
(Superseded to UP07032)

$

$

Not available

51

Homelite 80560

SCREW- Pan washer (8-32 x 1/2")

$

$

Not available

52

Homelite A57650A

SWITCH- Toggle

$27.99

$

Usually ships in 3-7 days

0

53

Homelite 973051A

ISOLATOR- Vibration
(Superseded to UP06468)

$

$

Not available

54

Homelite 97262

SLEEVE- Flanged
(Superseded to UP05586)

$

$

Not available

55

Homelite A97799

CAP- Fuel
(Superseded to UP05970)

$

$

Not available

56

Homelite 69502

BEAD- Chain

$

$

Not available

57

Homelite 96535

KEEPER- Cap

$

$

Not available

58

Homelite 82256A

SCREW- Thread Forming (#6 x 1/4")

$

$

Not available

59

Homelite 93422

GASKET- Cap
(Superseded to UP07294)

$

$

Not available

60

Homelite A97700

FILTER- Fuel
(Superseded to UP06516)

$

$

Not available

61

Homelite 592531A

ELEMENT- Filter

$13.99

$

Usually ships in 3-7 days

0

62

Homelite 88050

SCREW- Hex sems (10-24 x 3/4")
(Superseded to 88063)

$3.49

$

Usually ships in 3-7 days

0
