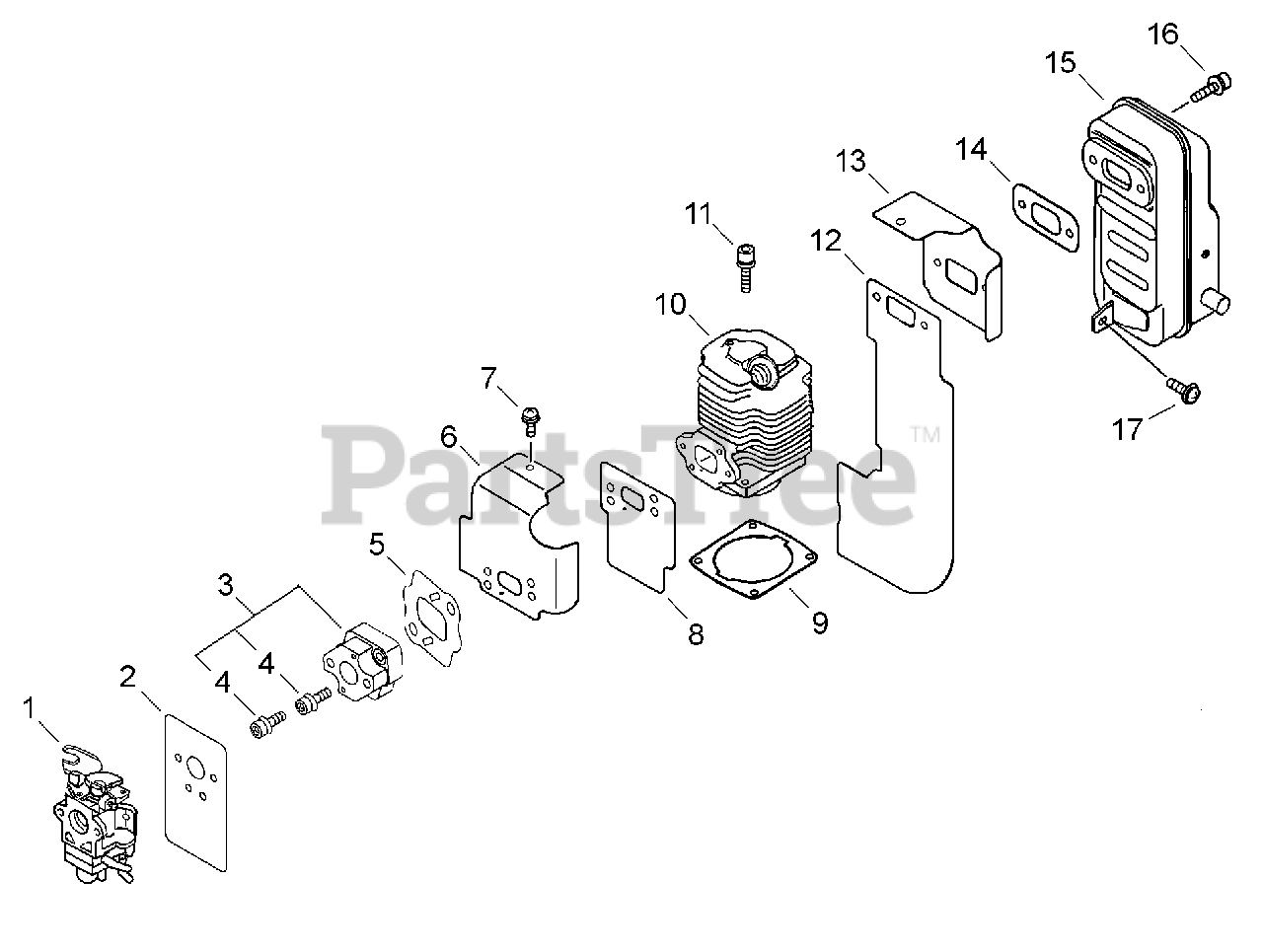

DM-6110 - Echo Duster / Mister (SN: 23001001 - 23999999) Assembly Title Parts Diagram

Duster / Mister

Assembly Title Parts Diagram

  • Title

1

Echo A021000990

CARBURETOR WYK-201
(Superseded to A021000991)

$83.99

$

Usually ships in 2-4 days

0

2

Echo V103000221

GASKET, INTAKE
(Superseded to P021040350)

$21.99

$

Usually ships in 2-4 days

0

3

Echo P021010210

INSULATOR KIT
(Superseded to P021010213)

$15.99

$

Usually ships in 2-4 days

0

4

Echo 90010605030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

5

Echo V103000000

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

6

Echo A160000680

SHIELD, CYLINDER - INTAKE

$9.49

$

Usually ships in 2-4 days

0

7

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 13001606211

SHIELD, INTAKE

$0.99

$

In Stock, Qty 17

0

9

Echo 10101006211

GASKET, CYLINDER

$2.49

$

In Stock, only 2 left!

0

10

Echo A130000111

CYLINDER

$233.99

$

In Stock, only 4 left!

0

11

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

12

Echo 14551206211

SHIELD, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

13

Echo 10151406210

COVER, CYLINDER - EXHAUST
(Superseded to A160000450)

$20.99

$

In Stock, only 1 left!

0

14

Echo 14551006211

GASKET, EXHAUST

$3.99

$

Usually ships in 2-4 days

0

15

Echo P021008630

MUFFLER ASSY

$53.99

$

Usually ships in 2-4 days

0

16

Echo 90010506020

SCREW - 6X20

$1.49

$

In Stock, Qty 20+

0

17

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0
