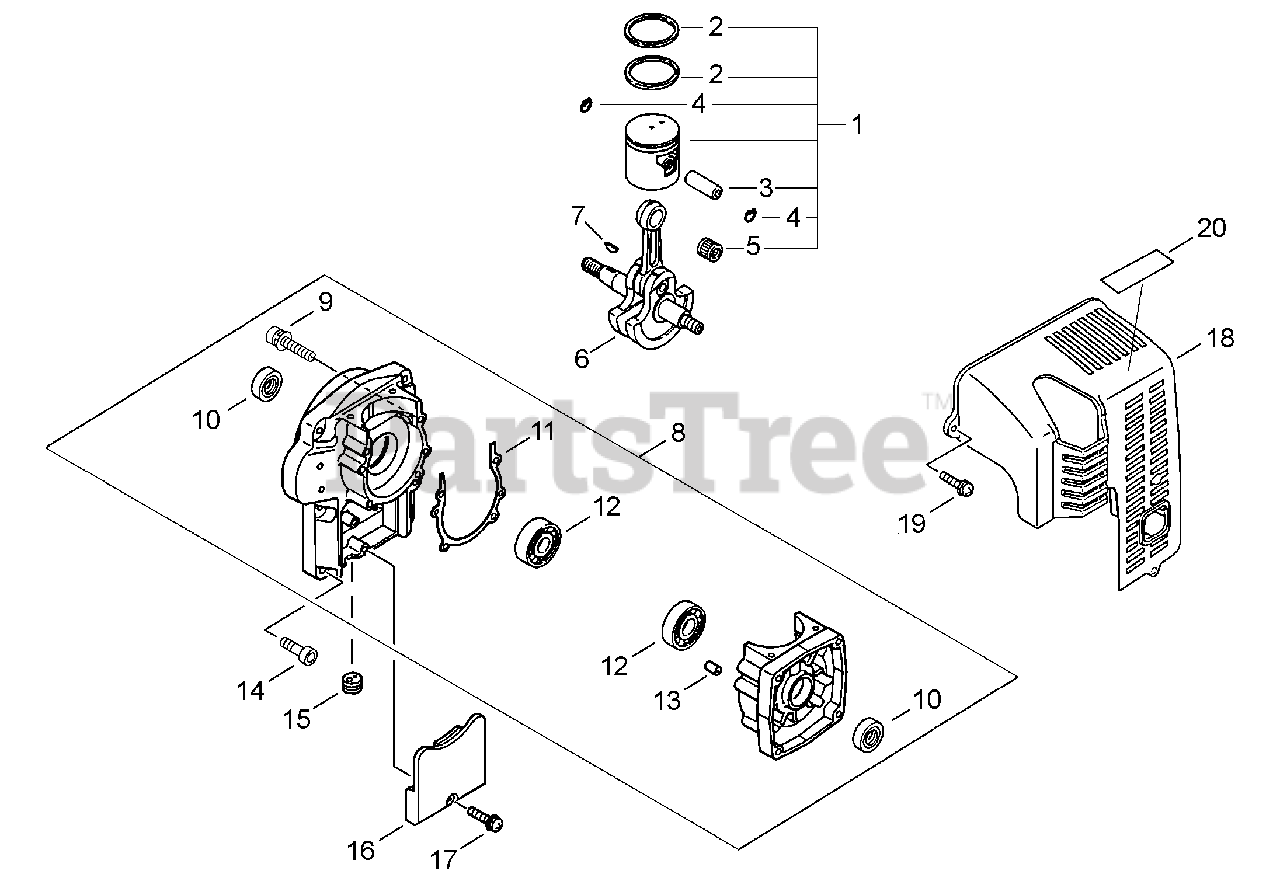

DM-6110 - Echo Duster / Mister (SN: 23001001 - 23999999) Engine Cover, Engine Parts Diagram

Duster / Mister

Engine Cover, Engine Parts Diagram

  • Title

1

Echo P021016910

PISTON KIT
(Superseded to P021038580)

$73.99

$

Usually ships in 2-4 days

0

2

Echo 10001108360

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

3

Echo 10001306210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

4

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

5

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 11

0

6

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

0

7

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 2 left!

0

8

Echo P021014700

CRANKCASE KIT

$228.99

$

Usually ships in 2-4 days

0

9

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 14

0

10

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

11

Echo 10024210721

GASKET, CRANKCASE

$1.49

$

In Stock, only 2 left!

0

12

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

13

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

14

Echo 90029205025

SCREW - 5X25

$2.49

$

Usually ships in 2-4 days

0

15

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

16

Echo 15912908261

COVER, DUST

$5.99

$

Usually ships in 2-4 days

0

17

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

18

Echo 10401606410

COVER, ENGINE

$52.99

$

Usually ships in 2-4 days

0

19

Echo 90029205020

SCREW - 5X20

$2.49

$

Usually ships in 2-4 days

0

20

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
