DM-6120 - Echo Duster / Mister (SN: D01926001001 - D01926999999) Carburetor Parts Diagram

Duster / Mister

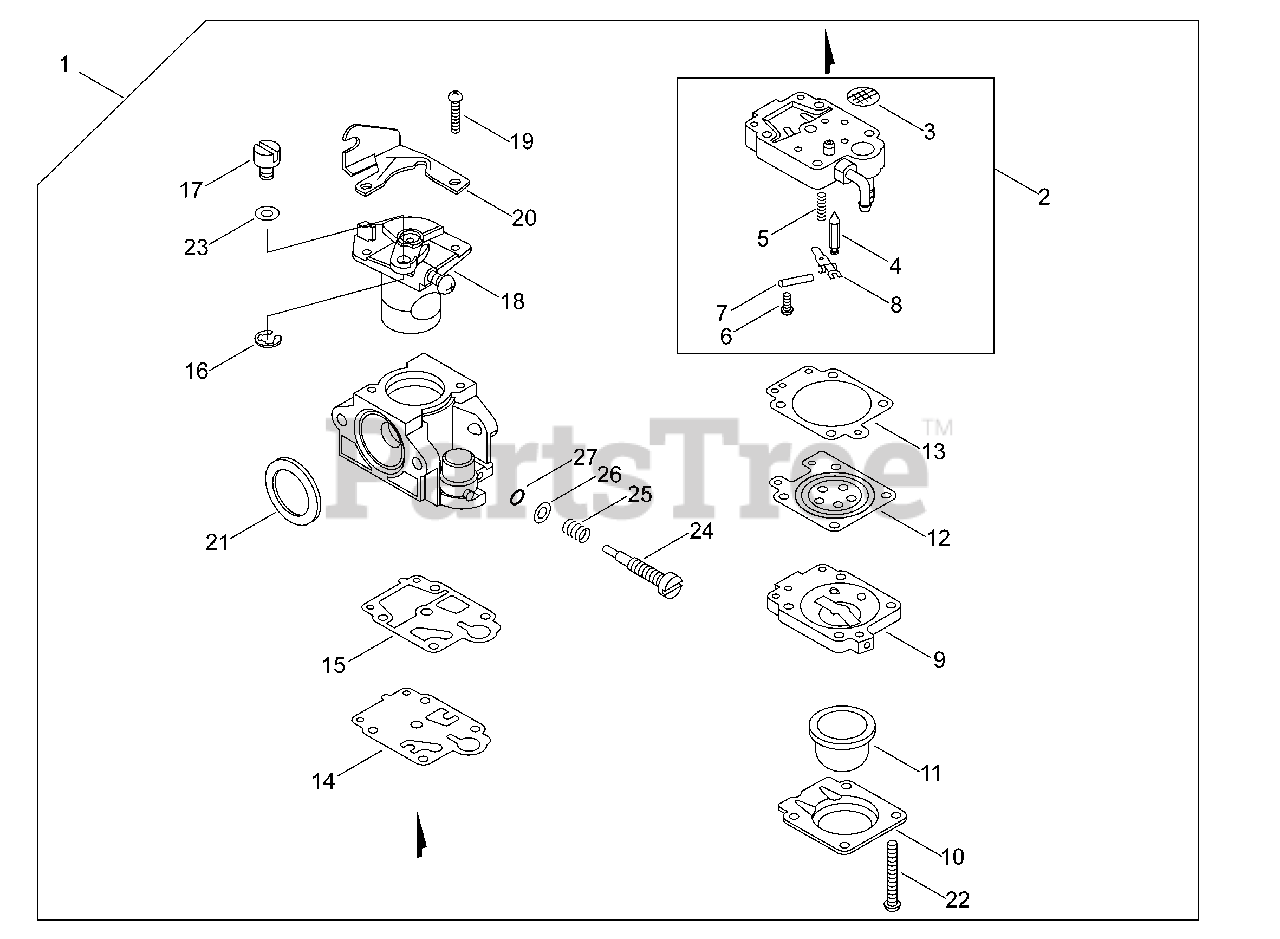

Carburetor Parts Diagram

  • Title

1

Echo A021004620

CARBURETOR - WYK-496

Note: Includes Items 2-27

$88.99

$

Usually ships in 2-4 days

0

2

Echo P003005910

BODY ASSY, PUMP

Note: Includes Items 3-8

$38.99

$

Usually ships in 2-4 days

0

3

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, only 3 left!

0

4

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

5

Echo 12312205560

SPRING, METERING LEVER

$4.99

$

Usually ships in 2-4 days

0

6

Echo P003005510

SCREW

$2.49

$

Usually ships in 2-4 days

0

7

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

8

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

9

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

10

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 1 left!

0

11

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

12

Echo P003001850

DIAPHRAGM, METERING

$9.49

$

In Stock, only 2 left!

0

13

Echo 12314005560

GASKET, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

14

Echo 12311240630

DIAPHRAGM, FUEL PUMP

$14.99

$

In Stock, only 3 left!

0

15

Echo P003000100

GASKET, PUMP

$5.99

$

In Stock, only 3 left!

0

16

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

17

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

18

Echo P003005920

VALVE, THROTTLE

$35.99

$

Usually ships in 2-4 days

0

19

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

20

Echo P003000180

BRACKET, THROTTLE CABLE

$6.99

$

In Stock, only 2 left!

0

21

Echo 12314312110

RING, PACKING

$4.99

$

In Stock, only 3 left!

0

22

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

23

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

24

Echo P003005930

NEEDLE, MIXTURE

$17.99

$

Usually ships in 2-4 days

0

25

Echo 12312122130

SPRING, NEEDLE

$3.99

$

Usually ships in 2-4 days

0

26

Echo 12317454230

WASHER
(Superseded to Discontinued)

$

$

Not available

27

Echo 12318354230

O-RING
(Superseded to Discontinued)

$

$

Not available
