DM-6120 - Echo Duster / Mister (SN: D01926001001 - D01926999999) Starter Parts Diagram

Duster / Mister

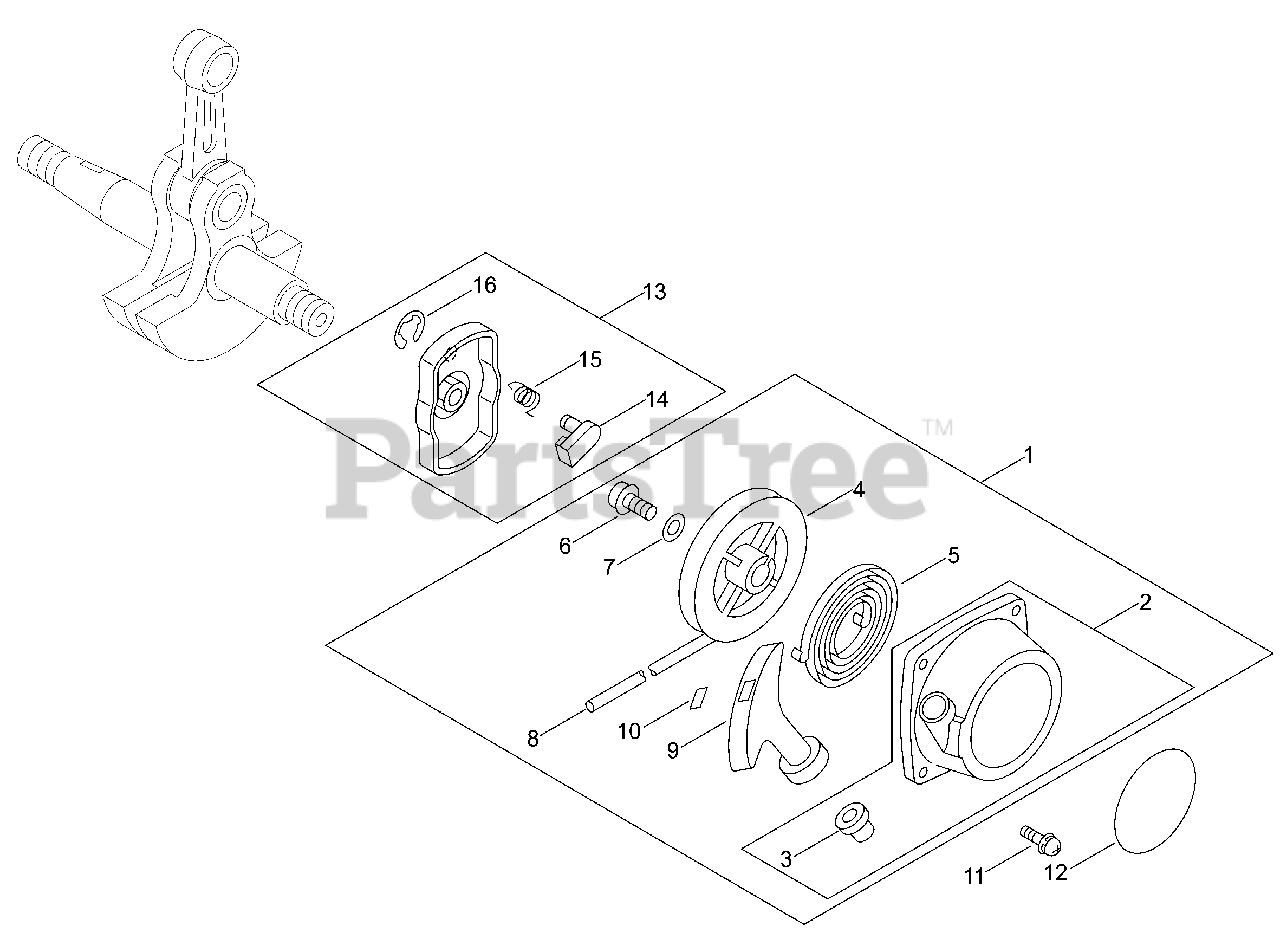

Starter Parts Diagram

  • Title

1

Echo 17720006210

STARTER ASSY, RECOIL

Note: Includes Items 2-10

$86.99

$

Usually ships in 2-4 days

0

2

Echo P022043970

+CASE, STARTER

Note: Includes Item 3

$27.99

$

Usually ships in 2-4 days

0

3

Echo 17722742030

++GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

4

Echo 17721511120

+REEL, ROPE

$21.99

$

In Stock, Qty 8

0

5

Echo 17722011120

+SPRING, RECOIL

$19.99

$

In Stock, only 2 left!

0

6

Echo 17723640630

+SCREW

$4.49

$

In Stock, Qty 14

0

7

Echo P022022280

+WASHER

$1.49

$

In Stock, Qty 6

0

8

Echo 17722611120

+ROPE, STARTER 3.8×1400

$6.49

$

In Stock, Qty 14

0

9

Echo 17722811120

+GRIP, STARTER

$6.49

$

Usually ships in 2-4 days

0

10

Echo P022037670

+RETAINER, ROPE

$2.49

$

In Stock, only 2 left!

0

11

Echo 90029204018

SCREW 4×18

$1.99

$

Usually ships in 2-4 days

0

12

Echo X502000780

LABEL, ECHO

$4.49

$

Usually ships in 2-4 days

0

13

Echo 17720206210

PAWL ASSY, STARTER
(Superseded to A052000470)

Note: Includes Items 14-16

$6.99

$

In Stock, Qty 18

0

14

Echo 17721840630

+PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

15

Echo 17723440630

+SPRING, RETURN

$3.99

$

In Stock, Qty 8

0

16

Echo P022002100

+E-RING 4

$0.99

$

In Stock, Qty 6

0
