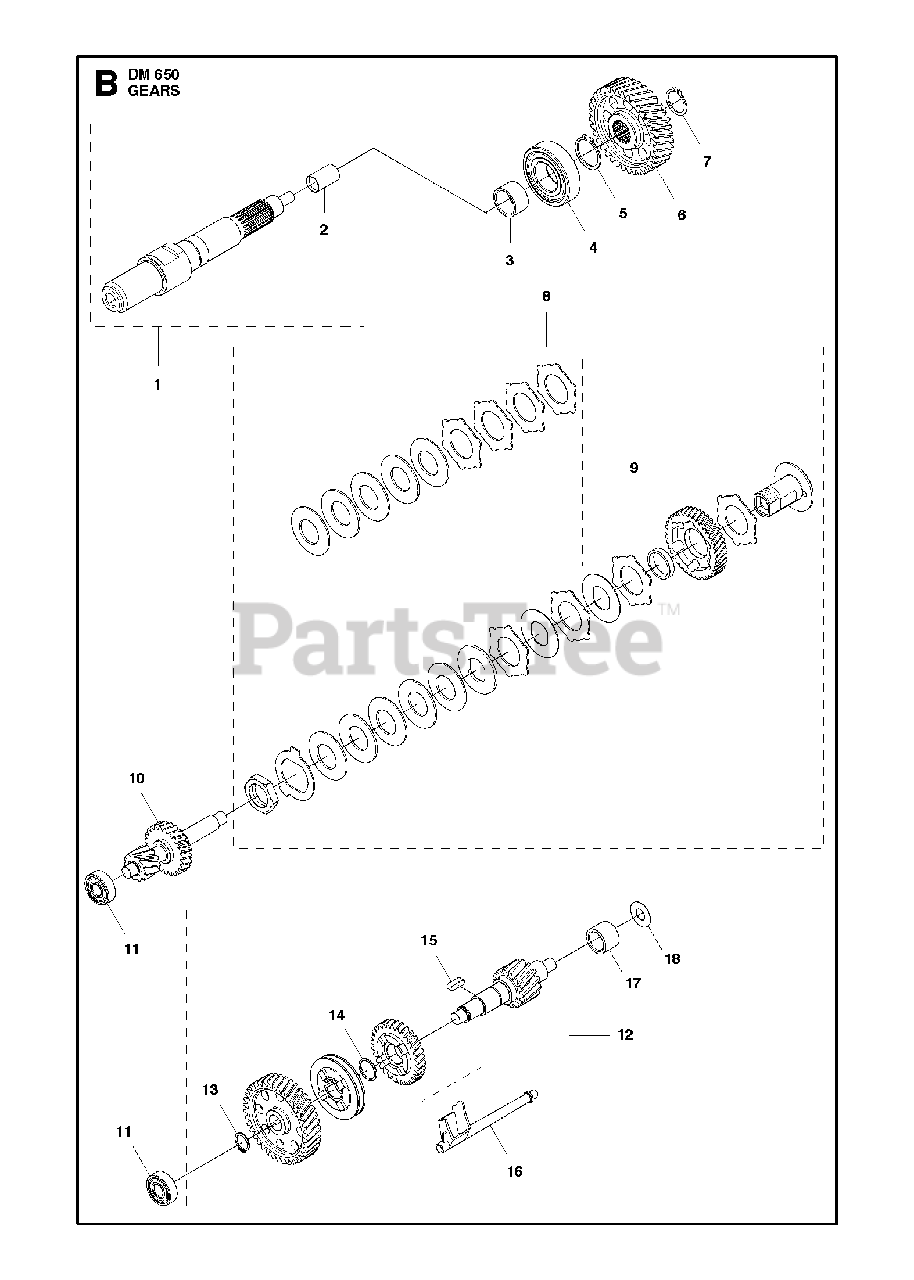

DM 650 - Husqvarna Drilling Machine (2013-07) GEARS Parts Diagram

Drilling Machine

GEARS Parts Diagram

  • Title

1

Husqvarna Construction 585 24 16-01

SPINDLE SHAFT

$616.99

$

Usually ships in 3-10 days

0

1

Husqvarna Construction 585 24 16-02

SPINDLE SHAFTJapan Only

$

$

Currently unavailable

2

Husqvarna Construction 504 73 59-01

SLEEVE

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 585 07 19-01

SPACER

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 738 22 06-29

BALL BEARING

$110.99

$

Usually ships in 3-10 days

0

5

Husqvarna 735 31 30-00

CIRCLIP

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 584 98 53-02

GEAR WHEEL

$469.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 585 47 49-01

RETAINER RING

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 580 63 71-01

CLUTCH ASSY

$543.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 577 55 83-01

KIT

$183.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 580 63 50-01

GEAR WHEEL SHAFT

$247.99

$

Usually ships in 3-10 days

0

11

Husqvarna 738 22 01-19

BALL BEARING
(Superseded to 503252301)

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 580 63 51-01

GEAR WHEEL ASSY

$745.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 735 31 18-00

CIRCLIP

$

$

Not available

14

Husqvarna Construction 735 31 22-40

CIRCLIP

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 576 85 56-02

PARALLEL KEY

$4.67

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 575 25 83-01

OIL PIPE

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 586 09 19-01

SPACER

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 586 03 98-01

WASHER

$12.99

$

Usually ships in 3-10 days

0
