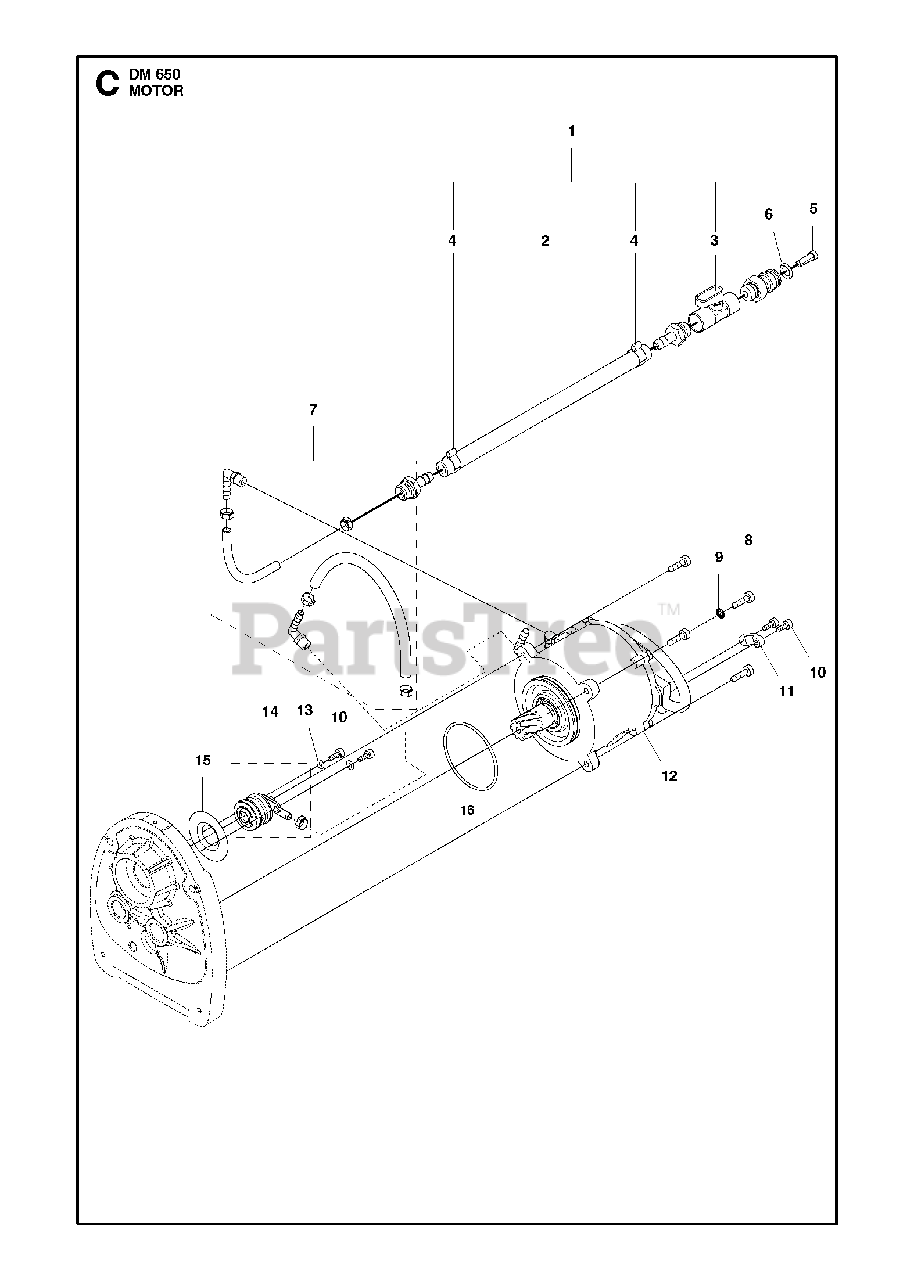

DM 650 - Husqvarna Drilling Machine (2013-07) MOTOR Parts Diagram

Drilling Machine

MOTOR Parts Diagram

  • Title

1

Husqvarna Construction 501 07 22-01

HOSE ASSY

$112.99

$

In Stock, only 1 left!

0

2

Husqvarna Construction 581 89 36-07

HOSE

$

$

Currently unavailable

3

Husqvarna Construction 587 43 78-02

VALVE ASSY

$92.99

$

In Stock, only 2 left!

0

4

Husqvarna 576 12 97-01

HOSE CLAMP

$7.99

$

In Stock, only 2 left!

0

5

Husqvarna 506 29 88-01

FILTER
(Superseded to 589780701)

$7.99

$

In Stock, only 2 left!

0

6

Husqvarna 505 10 35-01

O-RING
(Superseded to 740421000)

$4.99

$

In Stock, Qty 14

0

7

Husqvarna Construction 577 55 87-02

HOSE KIT

$89.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503 21 53-20

SCREW ITXSCM

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna Construction 735 21 46-01

LOCKWASHER

$1.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725 52 91-56

SCREW IHSCM
(Superseded to 725529155)

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 575 73 40-01

CABLE CLAMP

$5.83

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 576 21 45-02

MOTOR ASSY

$2623.72

$

Usually ships in 3-10 days

0

13

Husqvarna 734 11 36-01

WASHER

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 577 75 82-01

HOSE CLAMP

$

$

Not available

15

Husqvarna Construction 584 39 02-01

GUIDE WASHER

$18.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 575 49 30-01

O-RING

$7.49

$

Usually ships in 3-10 days

0
