DM-9 - Echo Duster / Mister Engine, Exhaust, Fuel Sys Parts Diagram

Duster / Mister

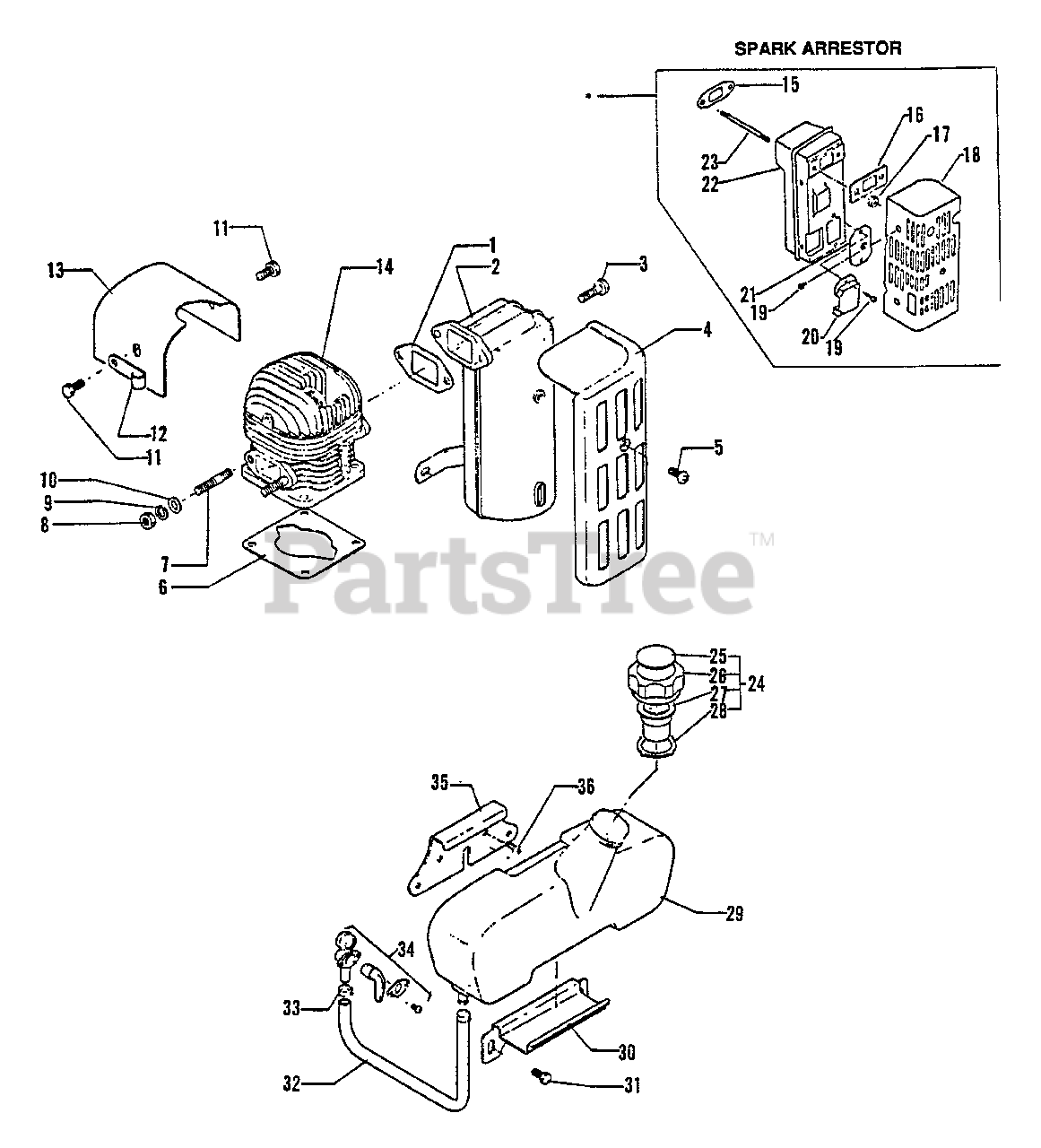

Engine, Exhaust, Fuel Sys Parts Diagram

  • Title

1

Echo 14551001111

GASKET, MUFFLER
(Superseded to Discontinued)

$

$

Not available

2

Echo 14561001110

MUFFLER
(Superseded to Discontinued)

$

$

Not available

3

Echo 90014006020

BOLT

$

$

Currently unavailable

4

Echo 14562101110

COVER, MUFFLER

$27.99

$

Usually ships in 2-4 days

0

5

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

6

Echo 10101001111

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

7

Echo 10101301110

BOLT, STUD
(Superseded to Discontinued)

$

$

Not available

8

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

9

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 9

0

10

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 90014006010

BOLT 6×10

$0.99

$

Usually ships in 2-4 days

0

12

Echo 15911001110

CLIP, CORD

$1.99

$

Usually ships in 2-4 days

0

13

Echo 10151401110

COVER, CYLINDER

$10.99

$

Usually ships in 2-4 days

0

14

Echo 10100000760

CYLINDER
(Superseded to 10100000761)

$210.99

$

Usually ships in 2-4 days

0

*

Echo 14580301111

MUFFLER ASSY
(Superseded to 14580301112)

Note: Includes ITEMS 15-23

$96.99

$

Usually ships in 2-4 days

0

15

Echo 14551001110

GASKET, EXHAUST
(Superseded to 14551001111)

$

$

Not available

16

Echo 14564200762

WASHER

$3.99

$

Usually ships in 2-4 days

0

17

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

18

Echo 14587101110

COVER, MUFFLER

$40.99

$

Usually ships in 2-4 days

0

19

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

20

Echo 14586301111

RETAINER, SCREEN

$4.49

$

Usually ships in 2-4 days

0

21

Echo 14586201110

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

22

Echo 14580601110

MUFFLER

$43.99

$

Usually ships in 2-4 days

0

23

Echo 10101400760

BOLT, STUD
(Superseded to 10101400761)

$

$

Not available

24

Echo 131604-07132

CAP ASSY

Note: INCLUDES ITEMS 26 - 28

$

$

Not available

25

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

26

CAP, FUEL

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

27

Echo 131003-05330

CAP, VENT

$3.49

$

Usually ships in 2-4 days

0

28

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 2 left!

0

29

Echo 13101001112

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

30

Echo 13191801110

BRACKET, FUEL TANK

$5.99

$

Usually ships in 2-4 days

0

31

Echo 90014606012

BOLT
(Superseded to Discontinued)

$

$

Not available

32

Echo 13201001110

PIPE, FUEL

$3.49

$

Usually ships in 2-4 days

0

33

Echo 357013-00210

CLAMP
(Superseded to 13201314010)

$3.99

$

Usually ships in 2-4 days

0

34

Echo 13220000512

VALVE, FUEL

$14.99

$

Usually ships in 2-4 days

0

35

Echo 13191001111

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

36

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0
