DM-9 - Echo Duster / Mister Shutter Assy, Blowing Pipes Parts Diagram

Duster / Mister

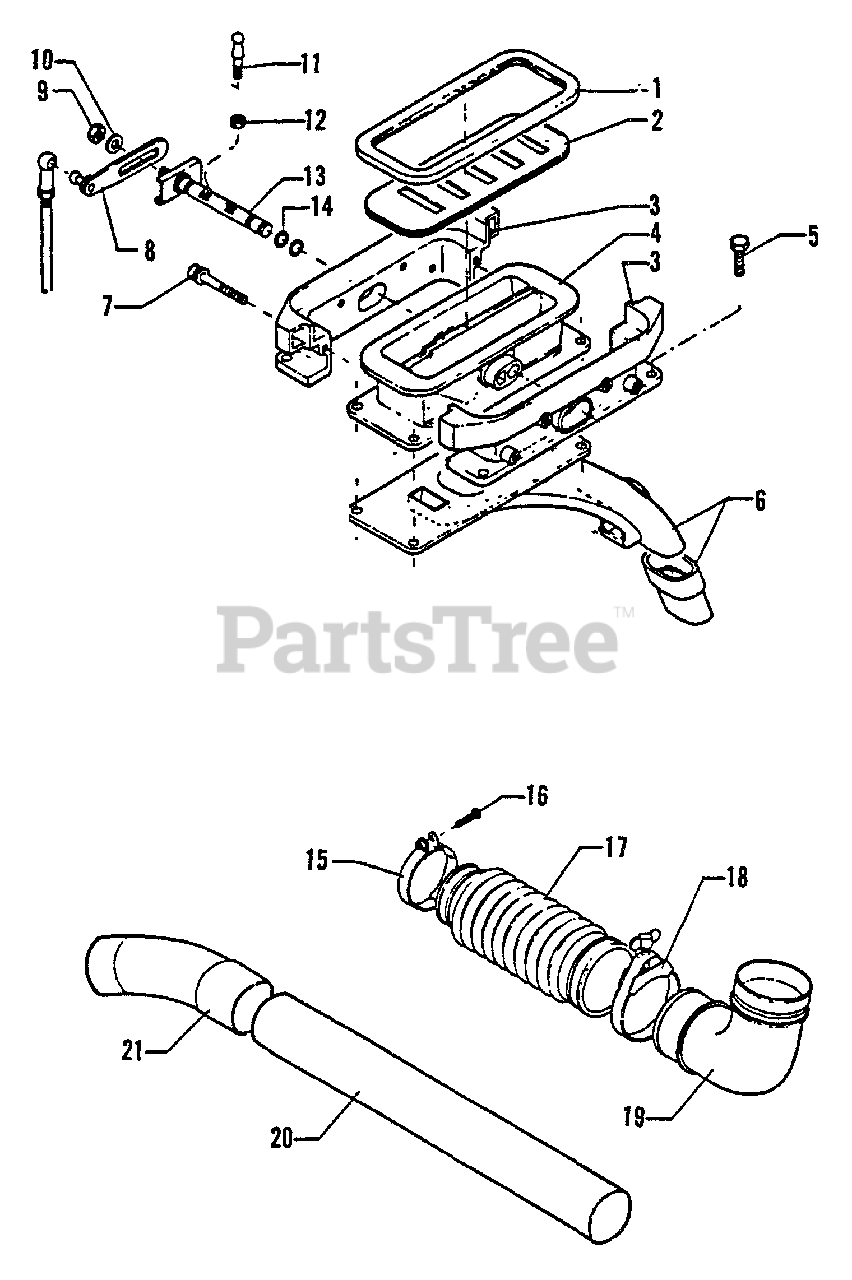

Shutter Assy, Blowing Pipes Parts Diagram

  • Title

1

Echo 27011901110

GASKET

$6.49

$

Usually ships in 2-4 days

0

2

Echo 27010001111

SHUTTER ASSY
(Superseded to 27010101111)

$79.99

$

Usually ships in 2-4 days

0

3

Echo 27000002111

TANK - LOWER
(Superseded to Discontinued)

$

$

Not available

4

Echo 27002602111

TANK - LOWER

$

$

Not available

5

Echo 90014606020

BOLT

$

$

Not available

6

Echo 37030101110

TUBE, DUST

$27.99

$

Usually ships in 2-4 days

0

7

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

8

Echo 27020001110

ARM, SHUTTER

$

$

Not available

9

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

10

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 27021601110

JOINT
(Superseded to Discontinued)

$

$

Not available

12

Echo 90050900004

NUT

$1.49

$

Usually ships in 2-4 days

0

13

Echo 27020501610

SHAFT, SHUTTER

$

$

Not available

14

Echo 270217-01110

O-RING

$

$

Not available

15

Echo 21040001110

CLAMP KIT

Note: Includes ITEM 16

$8.49

$

Usually ships in 2-4 days

0

16

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

17

Echo 21001201112

TUBE, FLEXIBLE

$86.99

$

In Stock, only 2 left!

0

18

Echo 210407-01110

CLAMP

$

$

Not available

19

Echo 21001101160

ELBOW

$16.99

$

Usually ships in 2-4 days

0

20

Echo 21001400310

TUBE, BLOWER - STRAIGHT
(Superseded to Discontinued)

$

$

Not available

21

Echo 21002301060

TUBE, BLOWER - CURVED

$12.99

$

In Stock, only 4 left!

0
