DMB 21 P4 (UT-30110) - Homelite 21" Maxi Bagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Maxi Bagger Walk-Behind Mower

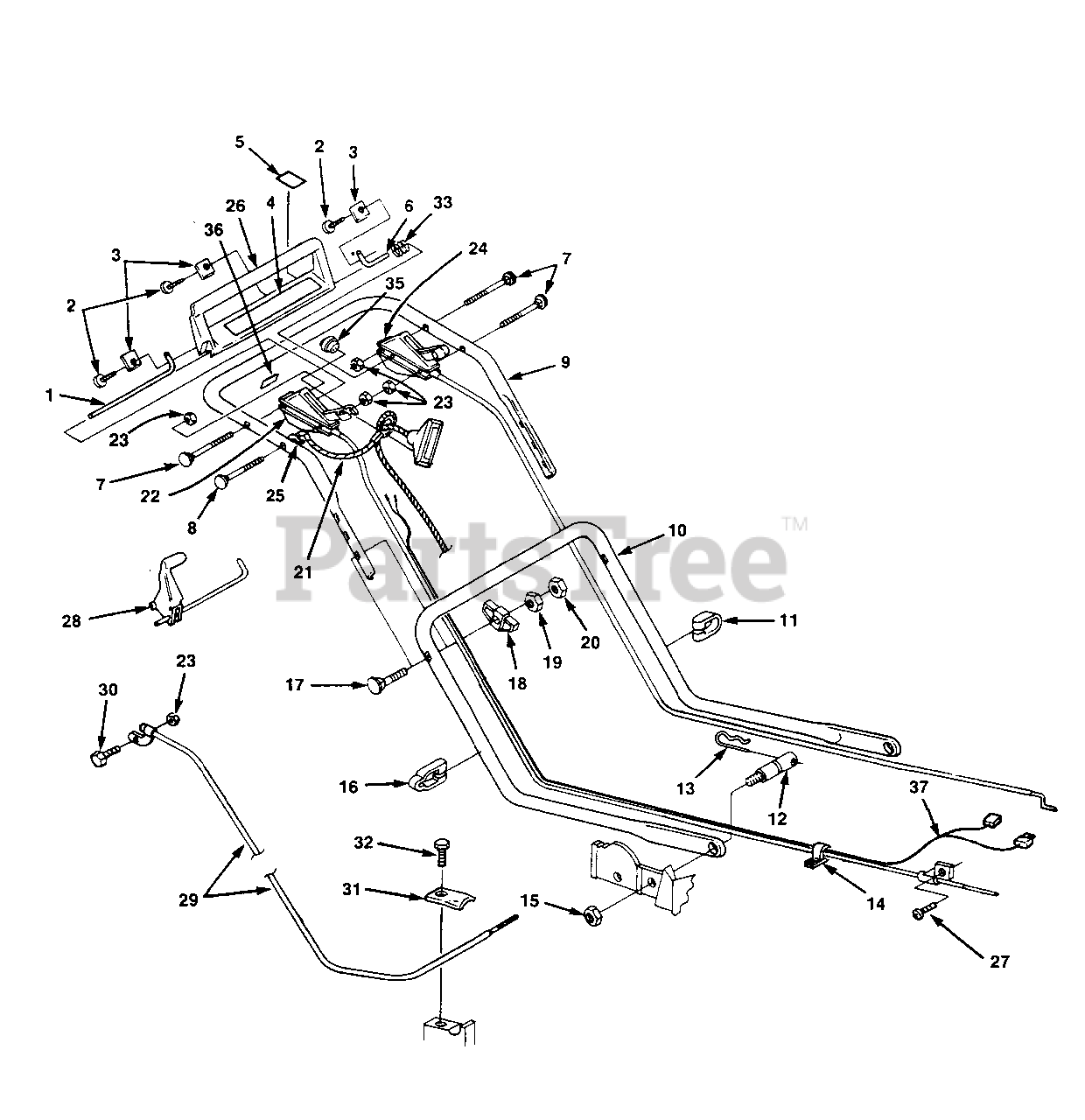

Handles & Controls Parts Diagram

  • Title

1

Homelite JA995550

SHAFT- Pivot

$

$

Currently unavailable

2

Homelite JA408881

SCREW- Rd. Hd. 1/4-10 x 5/8

$

$

Not available

3

Homelite JA992570

CLAMP- Pivot shaft

$

$

Currently unavailable

4

Homelite JA993713

DECAL- Brake bail

$

$

Currently unavailable

5

Homelite JA994090

DECAL- Blade rotation

$2.99

$

Usually ships in 3-7 days

0

6

Homelite JA992560

SHAFT- Pivot (short)

$

$

Currently unavailable

7

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

8

Homelite JA992930

BOLT- Sq. neck

$3.49

$

Usually ships in 3-7 days

0

9

Homelite JA992350

HANDLE- Upper

$

$

Currently unavailable

10

Homelite JA992360

HANDLE- Lower

$

$

Currently unavailable

11

Homelite JA995420

CLAMP- Cable (single)
(Superseded to JA994274)

$

$

Not available

12

Homelite JA359178

STUD- Handle mtg.

$

$

Not available

13

Homelite JA460306

PIN- Cotter hair

$

$

Not available

14

Homelite JA994310

CLAMP

$

$

Currently unavailable

15

Homelite JA445775

NUT- Hex. flange 5/16-18
(Superseded to UP06674)

$

$

Not available

16

Homelite JA995410

CLAMP- Cable (double)
(Superseded to JA994274)

$

$

Not available

17

BOLT- Sq. neck

Note: Not used on this product

$

$

Not available

18

Homelite JA339550

KNOB- Handle

$

$

Not available

19

Homelite JA443106

NUT- Hex. lock 5/16 x 18
(Superseded to 81018)

$

$

Not available

20

Homelite JA444718

NUT- Hex. lock 5/16 x 18

$

$

Not available

21

Homelite JA995390

ROPE- Restraint

$28.99

$

Usually ships in 3-7 days

0

22

Homelite JA992467

CONTROL- Manual start

$

$

Currently unavailable

23

Homelite JA444708

NUT- Hex locking 1/4-20

$

$

Currently unavailable

24

Homelite JA993032

CONTROL- Throttle

$

$

Not available

25

Homelite JA344544

WASHER- Curved

$

$

Not available

26

Homelite JA993190

BAIL- Brake control

$

$

Currently unavailable

27

Homelite JA403586

SCREW- Hex hd. 10-32 x 3/8
(Superseded to UP07186)

$2.99

$

Usually ships in 3-7 days

0

28

Homelite JA995541

LEVER- Traction
(Superseded to JA995540)

$

$

Currently unavailable

29

Homelite JA991075

CABLE- Traction

$

$

Not available

30

Homelite JA400116

SCREW- Hex hd. 1/4-20 x 1 1/2

$

$

Not available

31

Homelite JA991065

CLAMP

$

$

Not available

32

Homelite JA409908

SCREW- Hex. hd. 1/4-20 x 5/8

$2.49

$

Usually ships in 3-7 days

0

33

Homelite JA990141

SPRING- Compression

$

$

Not available

35

UNKNOWN

$

$

Not available

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available
