DMB 21 (UT-30109) - Homelite 21" Maxi Bagger Walk-Behind Mower Mower Parts Diagram

21" Maxi Bagger Walk-Behind Mower

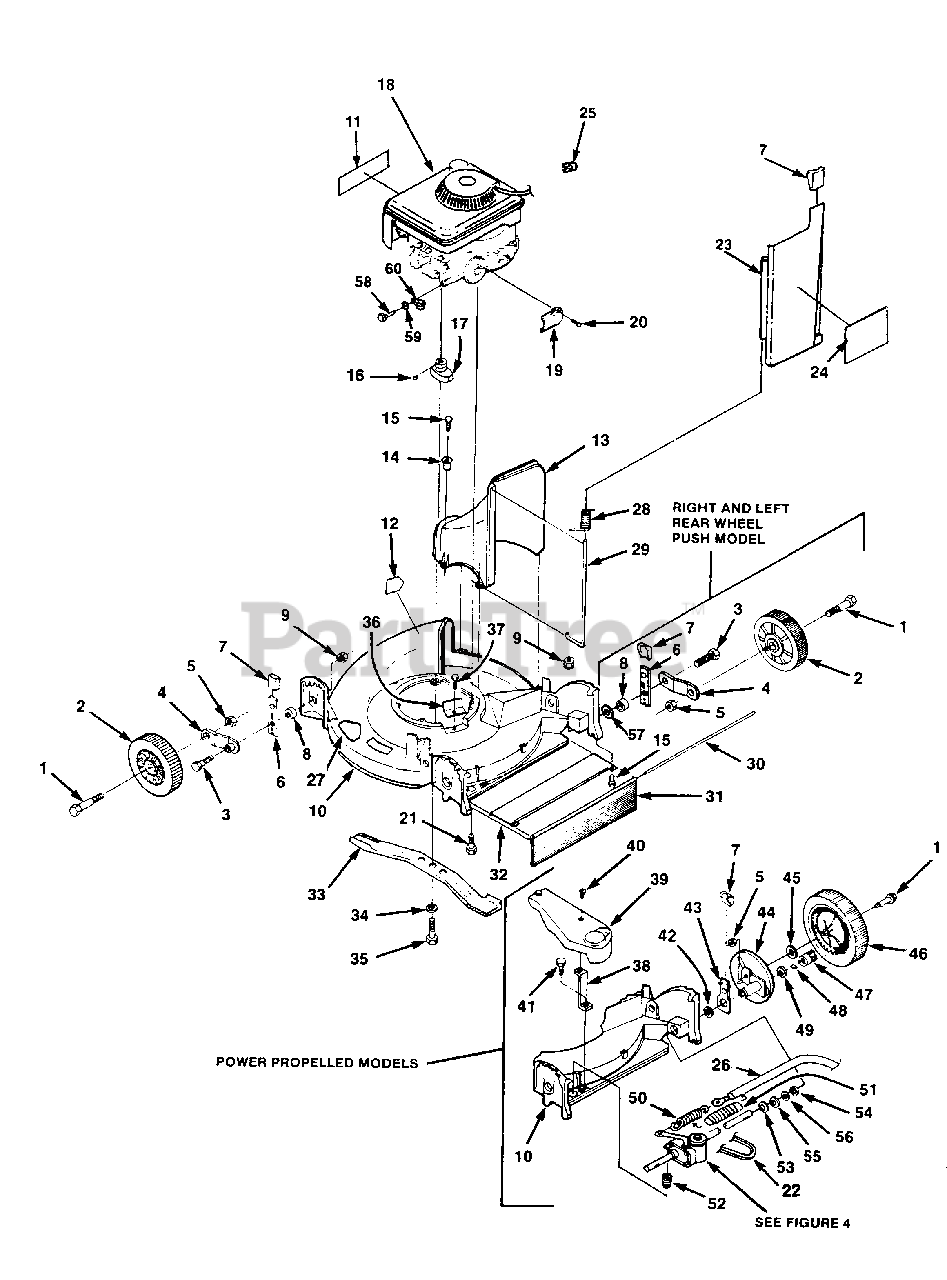

Mower Parts Diagram

  • Title

1

Homelite JA992955

BOLT- Axle
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT- Hex hd. 5/16-18

$

$

Not available

4

Homelite JA991287

ARM- Wheel hgt. adjusting
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA444850

NUT- Hex 3/8-16
(Superseded to JA993711)

$

$

Not available

6

Homelite JA990087

SPRING- Index
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Indexing spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Index spring

$

$

Not available

9

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite JA991925

DECK- 21"

Note: (Incl. #12)

$

$

Currently unavailable

DECK- 21"

Note: Not used on this product

$

$

Not available

11

Homelite 00305

DECAL- Gasohol

$

$

Currently unavailable

12

Homelite JA339460

DECAL- Warning

$

$

Not available

13

Homelite JA991912

CHUTE- Discharge

Note: (Incl. #14)

$

$

Currently unavailable

14

Homelite JA473183

STIMPSON EYELET

$10.99

$

Usually ships in 3-7 days

0

15

Homelite JA408878

SCREW- Hex hd. 1/4-20 x 3/4

$

$

Not available

16

Homelite JA463107

KEY- 5/8 x 5/32

$

$

Not available

17

Homelite JA241708

ADAPTER- Blade

$

$

Currently unavailable

18

ENGINE- 3.5 H.P.

Note: (Incl. 11, 19, 20 & 25)

$

$

Not available

19

Homelite JA359256

DEFLECTOR- Muffler

$

$

Not available

20

Homelite JA408880

SCREW- Hex hd. 8-32 x 3/8

$

$

Currently unavailable

21

Homelite JA408876

SCREW- 3/8-16 x 1 1/2

$

$

Not available

22

BELT- Drive

Note: Not used on this product

$

$

Not available

23

Homelite JA992797

DOOR- Chute

Note: (Incl. #24)

$

$

Currently unavailable

24

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

25

Homelite JA990567

STOP- Rope

$

$

Not available

26

CABLE- Traction

Note: Not used on this product

$

$

Not available

27

Homelite JA992393

DECAL- Foot pad

$8.49

$

Usually ships in 3-7 days

0

28

Homelite JA992947

SPRING- Door

$

$

Not available

29

Homelite JA359167

PIN- Hinge

$

$

Not available

30

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

31

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

32

Homelite JA992099

COVER- Rear
(Superseded to JA991284)

$

$

Currently unavailable

33

Homelite JA390162

BLADE- 21"

$

$

Currently unavailable

34

Homelite JA446148

WASHER- Lock 7/16

$

$

Not available

35

Homelite JA991212

BOLT- Shoulder

$

$

Not available

36

Homelite JA991923

COVER- Belt opening

$

$

Currently unavailable

37

Homelite JA409907

SCREW- Hex hd. 1/4-20 x 1/2

$

$

Not available

38

SUPPORT

Note: Not used on this product

$

$

Not available

39

COVER- Drive

Note: Not used on this product

$

$

Not available

40

SCREW- Rd. hd. 1/4-20 x 3/4

Note: Not used on this product

$

$

Not available

41

SCREW- Hex hd. 10-16 x 1/2

Note: Not used on this product

$

$

Not available

42

SPACER- Hgt. Adj.

Note: Not used on this product

$

$

Not available

43

SPRING- Index

Note: Not used on this product

$

$

Not available

44

DRIVE WHEEL SUPPORT

Note: Not used on this product

$

$

Not available

45

WASHER- Flat

Note: Not used on this product

$

$

Not available

46

WHEEL & TIRE (drive)

Note: Not used on this product

$

$

Not available

47

PINION (R.H.)

Note: Not used on this product

$

$

Not available

PINION (L.H.)

Note: Not used on this product

$

$

Not available

48

PAWL- Pinion

Note: Not used on this product

$

$

Not available

49

WASHER- Flat

Note: Not used on this product

$

$

Not available

50

SPRING- Traction lever

Note: Not used on this product

$

$

Not available

51

COVER- Spring

Note: Not used on this product

$

$

Not available

52

SPRING- Compression

Note: Not used on this product

$

$

Not available

53

RING- Eaton

Note: Not used on this product

$

$

Not available

54

WASHER- Flat

Note: Not used on this product

$

$

Not available

55

WASHER

Note: Not used on this product

$

$

Not available

56

Homelite JA328147

Washer - Shim

$

$

Not available

57

Homelite JA453009

WASHER- Flat (5/16)
(Superseded to UP07173)

$

$

Not available

58

BOLT- Hex (1/4-20 x 1/2)

Note: Not used on this product

$

$

Not available

59

WASHER- Lock

Note: Not used on this product

$

$

Not available

60

Homelite JA993026

CLAMP- Insulate

$

$

Currently unavailable
