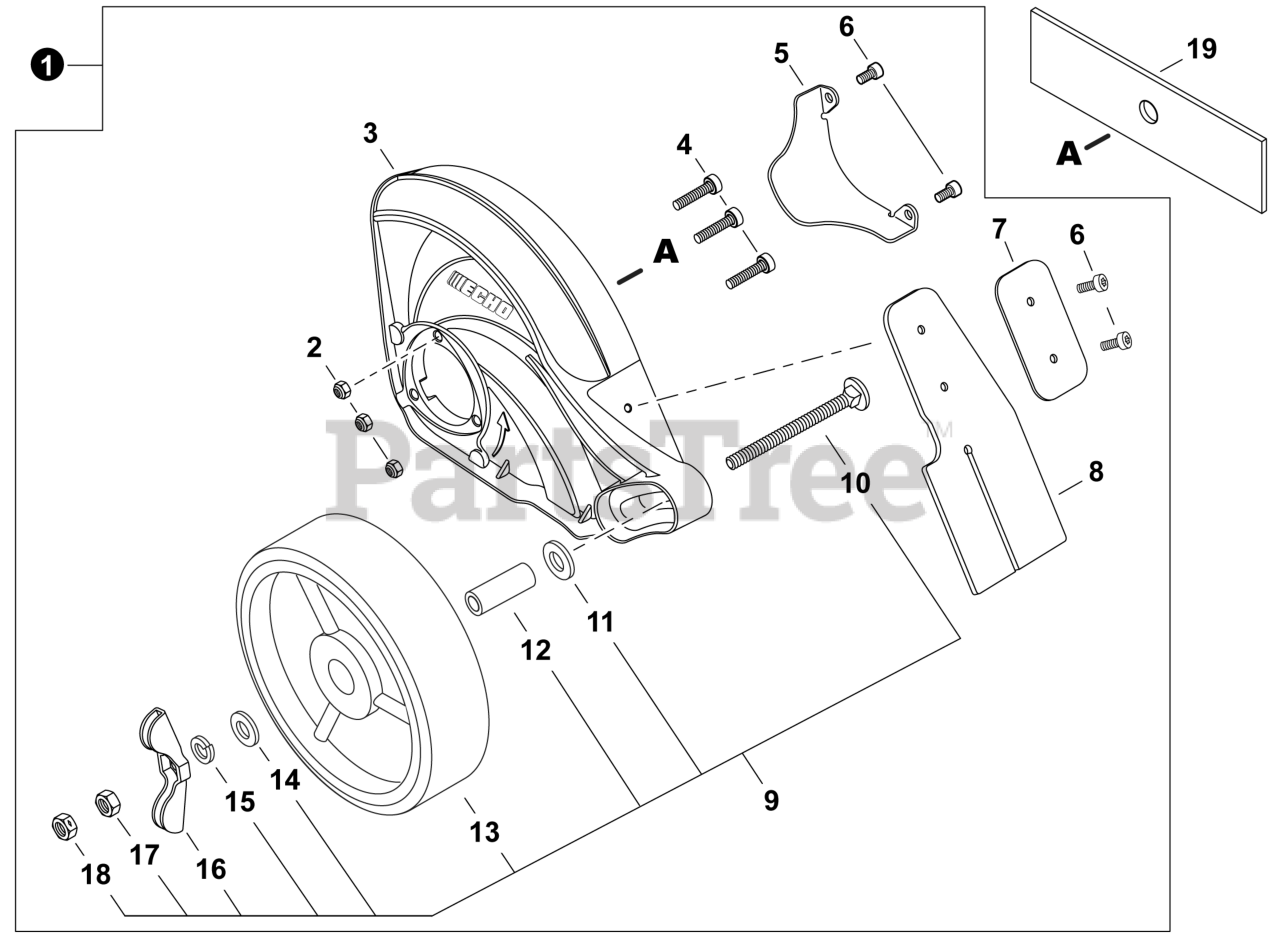

DPE-2600 - Echo Edger, 56V Battery (SN: U77000001001 - U77000999999) Edger Shield Parts Diagram

Edger, 56V Battery

Edger Shield Parts Diagram

  • Title

1

Echo P021049311

SHIELD KIT, EDGER

Note: Includes items 2-18

$72.99

$

In Stock, only 1 left!

0

2

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 5

0

3

Echo C550000740

SHIELD, BLADE

$37.99

$

In Stock, Qty 8

0

4

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

5

Echo C557000430

GUARD, SHIELD

$6.99

$

In Stock, Qty 20+

0

6

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

7

Echo C552000260

PLATE, FLAP

$2.49

$

In Stock, Qty 20+

0

8

Echo C550000730

FLAP, DEBRIS

$3.99

$

In Stock, Qty 17

0

9

Echo P021054320

WHEEL KIT

Note: Includes items 10-18

$29.99

$

Usually ships in 2-4 days

0

10

Echo V205001220

BOLT M8-1.25x80 MM

$4.49

$

In Stock, Qty 15

0

11

Echo 90060200010

WASHER M10

$0.99

$

In Stock, Qty 20+

0

12

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 20+

0

13

Echo C730000120

WHEEL

$12.99

$

In Stock, Qty 11

0

14

Echo 90060200008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

16

Echo V299000441

KNOB, FASTENER

$7.49

$

In Stock, Qty 7

0

17

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

18

Echo V265000340

NUT, LOCK M8

$1.49

$

In Stock, Qty 16

0

19

Echo 69601552632

BLADE - 2 PK

$11.99

$

In Stock, Qty 8

0
