DPG 1350 (8718-0) - Craftsman 1,350 Watt Portable Generator Panel No. 61795 Parts Diagram

1,350 Watt Portable Generator

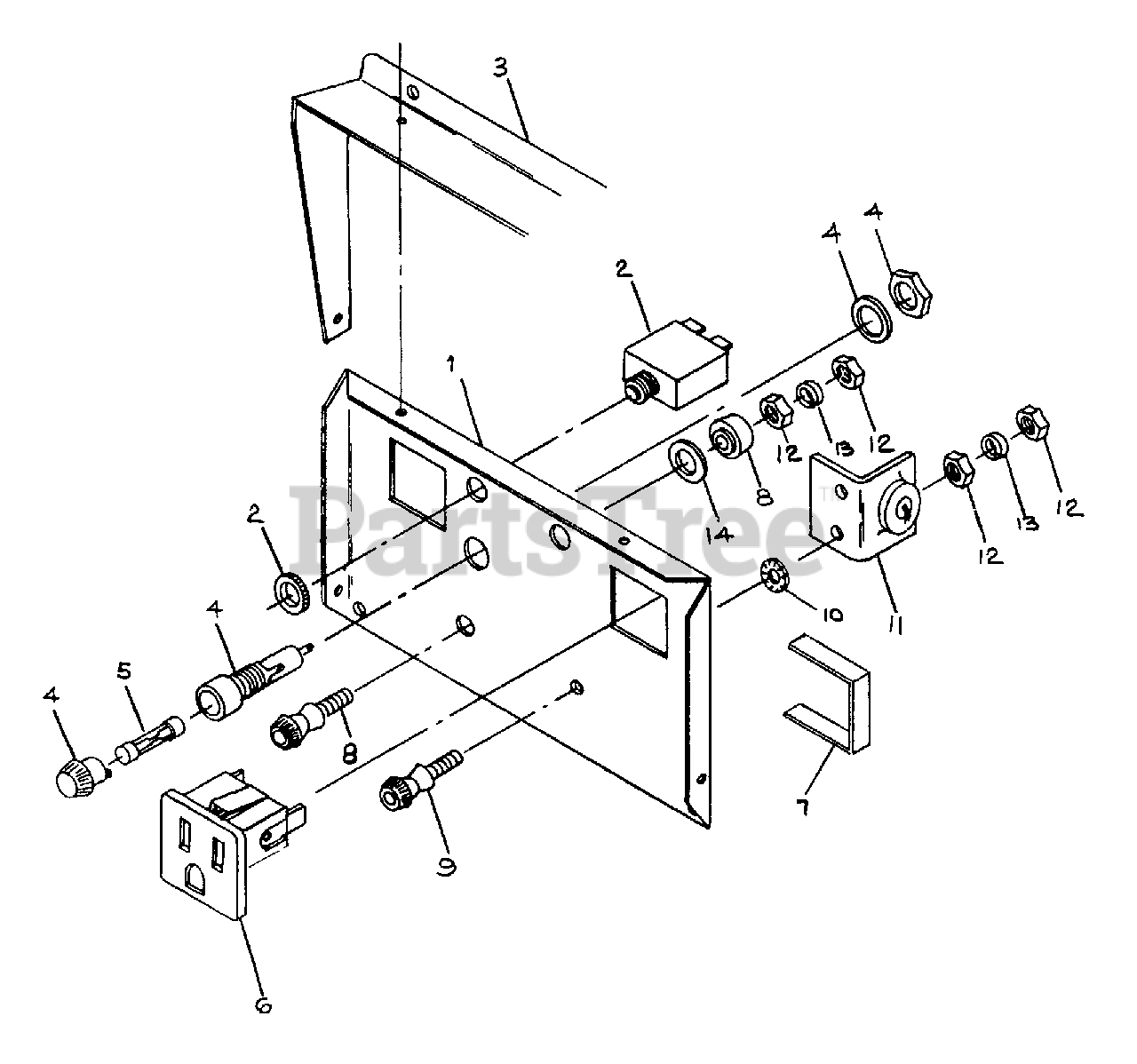

Panel No. 61795 Parts Diagram

  • Title

1

Briggs & Stratton 00761484A

PANEL, Control (without Circuit Breakers)

$

$

Currently unavailable

Briggs & Stratton 00761484C

PANEL, Control (with Circuit Breakers)

$

$

Currently unavailable

2

Briggs & Stratton 00756286

BREAKER, Circuit

$

$

Currently unavailable

3

Briggs & Stratton 00761485A

HOOD, Drip

$

$

Currently unavailable

4

Briggs & Stratton 00722669

HOLDER, Fuse

$

$

Currently unavailable

5

Briggs & Stratton 00722668

FUSE - 30 Ampere

$

$

Currently unavailable

6

Briggs & Stratton 00722693

RECEPTACLE - 120 Volts

$

$

Currently unavailable

7

Briggs & Stratton 00727272

RETAINER, 120 Volts Receptacle

$

$

Currently unavailable

8

Briggs & Stratton 00725367

POST, Battery Charge Terminal (Red)

$

$

Currently unavailable

9

Briggs & Stratton 00725368

POST, Battery Charge Terminal (Black)

$

$

Currently unavailable

10

Briggs & Stratton 00726579

WASHER, Shakeproof

$

$

Currently unavailable

11

Briggs & Stratton 00745992

DIODE ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 00722471

NUT, Hex - No. 8-32

$

$

Currently unavailable

13

Briggs & Stratton 00722264

WASHER, Lock - No. 8

$

$

Currently unavailable

14

Briggs & Stratton 00730798

WASHER, Fiber

$

$

Currently unavailable

Briggs & Stratton 007A25383

CABLE, Battery Charging

$

$

Currently unavailable
