DPG3750 (8720-1) - Generac 3,750 Watt Portable Generator AC Generator DPG-3750 No. 61797 Parts Diagram

3,750 Watt Portable Generator

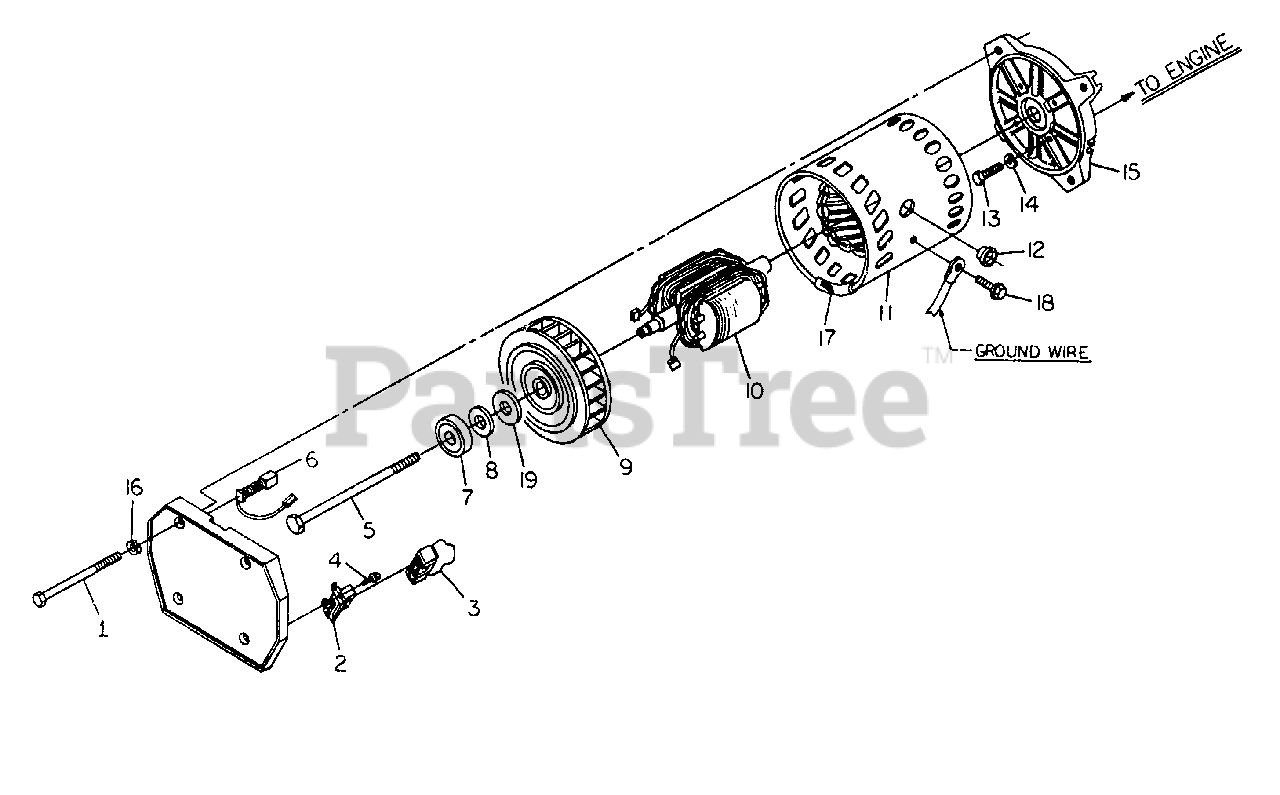

AC Generator DPG-3750 No. 61797 Parts Diagram

  • Title

1

Briggs & Stratton 00744395E

BOLT, Stator (120 Volt only units)

$

$

Currently unavailable

Briggs & Stratton 00744395H

BOLT, Stator (120/240 Volts units)

$

$

Currently unavailable

2

Briggs & Stratton 00722694

HOUSING, Receptacle (White)

$

$

Currently unavailable

3

Briggs & Stratton 00728293

RECTIFIER ASSEMBLY, Bridge

$

$

Currently unavailable

4

Briggs & Stratton 00759636

SCREW - No. 4 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 00758885B

BOLT, Rotor (3750 Watt Units only)

$

$

Currently unavailable

6

Briggs & Stratton 00759606

BRUSH ASSEMBLY (Red) - Positive

$

$

Currently unavailable

Briggs & Stratton 00759606A

BRUSH ASSEMBLY - Neutral

$

$

Currently unavailable

7

Briggs & Stratton 00724049

BEARING

$

$

Currently unavailable

8

Briggs & Stratton 00758886

WASHER (Special)

$

$

Currently unavailable

9

FAN, Cooling

Note: Cooling Fan is factory installed. If replacement is required, use item 10 (Rotor and Fan Assembly).

$

$

Not available

10

Briggs & Stratton 00759625

ROTOR AND FAN ASSEMBLY (3750 Watt Units)

$

$

Currently unavailable

11

Briggs & Stratton 00763098

STATOR ASSEMBLY (3750 Watt Units only)

$

$

Currently unavailable

12

Briggs & Stratton 00723484D

BUSHING, Snap

$

$

Currently unavailable

13

Briggs & Stratton 00722336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Currently unavailable

14

Briggs & Stratton 00722129

WASHER, Lock - 5/16"

$

$

Currently unavailable

15

Briggs & Stratton 00760220E

HOUSING, Engine Adapter (3750 Watt Units only)

$

$

Currently unavailable

16

Briggs & Stratton 00750993

NUT, Lock - 1/4"-20

$

$

Currently unavailable

17

Briggs & Stratton 00756326

TRIM, Vinyl - 3 1/2" long

$

$

Currently unavailable

18

Briggs & Stratton 00724489

SCREW (Crimptite) - No. 10-24 x 3/8"

$

$

Currently unavailable
