DPG3750 (8720-1) - Generac 3,750 Watt Portable Generator Engine Sheet Metal DPG-3750 Parts Diagram

3,750 Watt Portable Generator

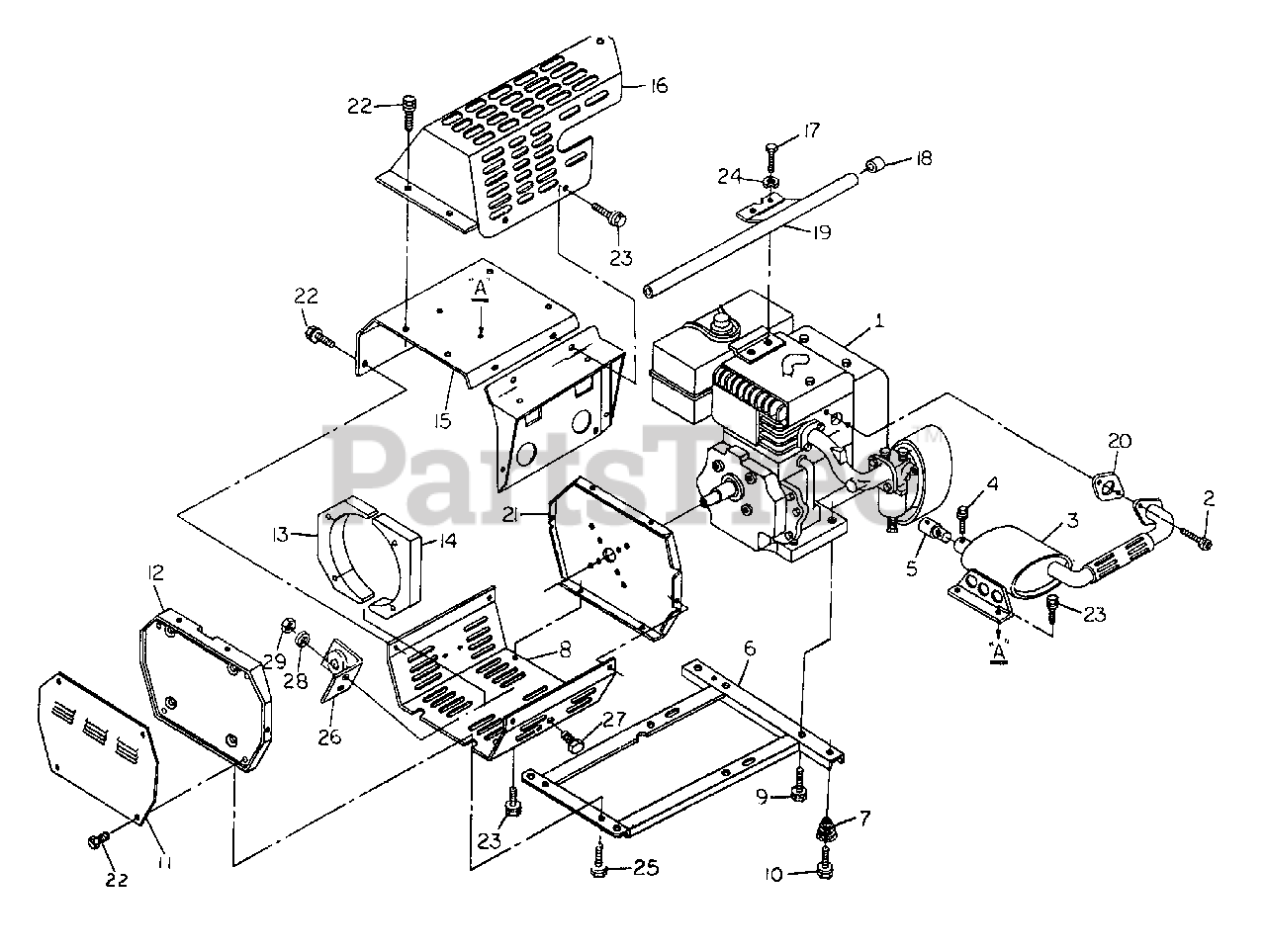

Engine Sheet Metal DPG-3750 Parts Diagram

  • Title

1

Briggs & Stratton 00761473

ENGINE, Tecumseh 8 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 00760706

CAPSCREW, Socket Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

3

Briggs & Stratton 00758196

MUFFLER, Exhaust (with Spark Arrestor)

$

$

Currently unavailable

4

Briggs & Stratton 00722774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 00759604

SCREEN, Spark Arrestor

$

$

Currently unavailable

6

Briggs & Stratton 00758898

BASE, Mounting

$

$

Currently unavailable

7

Briggs & Stratton 00723594

SPRING (without Loop)

$

$

Currently unavailable

8

Briggs & Stratton 00758876B

WRAPPER, Lower Generator

$

$

Currently unavailable

9

Briggs & Stratton 00759637

SCREW - 3/8"-16 x 3/4"

$

$

Currently unavailable

10

Briggs & Stratton 00724910

SCREW - 5/16" x 1/2"

$

$

Currently unavailable

11

Briggs & Stratton 00761771

PANEL, End

$

$

Currently unavailable

12

Briggs & Stratton 00761762

PANEL, End

$

$

Currently unavailable

13

Briggs & Stratton 00758887B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

14

Briggs & Stratton 00758887C

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

15

Briggs & Stratton 00761763B

WRAPPER, Upper Generator

$

$

Currently unavailable

16

Briggs & Stratton 00758884

COVER, Muffler and Head

$

$

Currently unavailable

17

Briggs & Stratton 00730332

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

18

Briggs & Stratton 00727794

CAPLUG

$

$

Currently unavailable

19

Briggs & Stratton 00761777

HANDLE, Carrying

$

$

Currently unavailable

20

Briggs & Stratton 00758894

GASKET, Exhaust

$

$

Currently unavailable

21

Briggs & Stratton 00760209

ADAPTER, Generator Sheet Metal

$

$

Currently unavailable

22

Briggs & Stratton 00759635

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

23

Briggs & Stratton 00756892

SCREW - No. 10-24 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 00722129

WASHER, Lock - 5/16"

$

$

Currently unavailable

25

Briggs & Stratton 00759634

SCREW - 1/4" x 1"

$

$

Currently unavailable

26

Briggs & Stratton 00745992

DIODE ASSEMBLY, Battery Charge

$

$

Currently unavailable

27

Briggs & Stratton 00736933

SCREW - No. 10-32 x 3/8"

$

$

Currently unavailable

28

Briggs & Stratton 00722152

WASHER, Lock - No. 10

$

$

Currently unavailable

29

Briggs & Stratton 00722158

NUT, Hex - No. 10-32

$

$

Currently unavailable
