DPG3750 (8720-1) - Generac 3,750 Watt Portable Generator Panel No. 63099 Parts Diagram

3,750 Watt Portable Generator

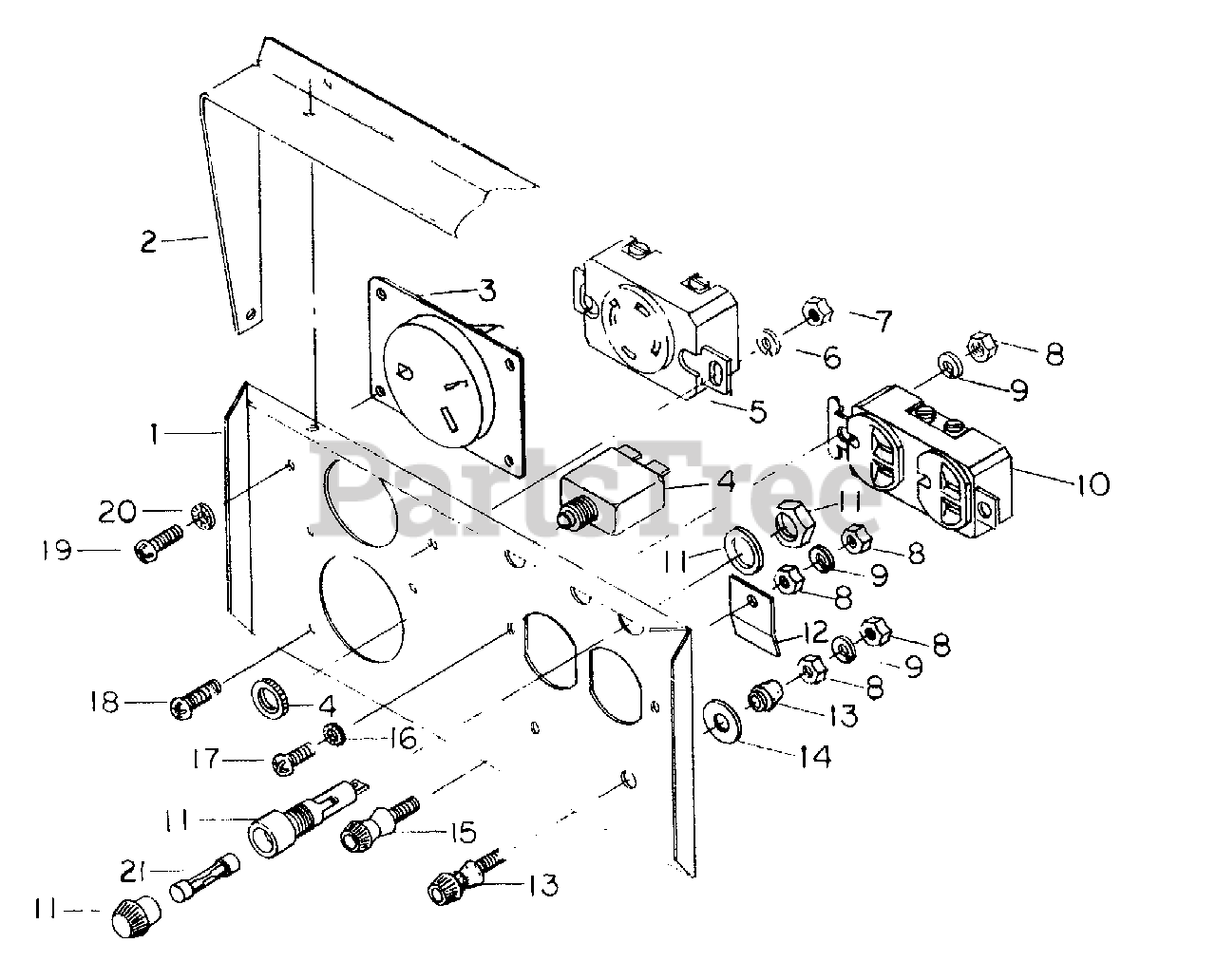

Panel No. 63099 Parts Diagram

  • Title

1

Briggs & Stratton 00763094

PANEL - Silkscreened

$

$

Currently unavailable

2

Briggs & Stratton 00761485B

HOOD, Panel

$

$

Currently unavailable

3

Briggs & Stratton 00763096

RECEPTACLE - 120 Volts (Recreational Vehicle Type)

$

$

Currently unavailable

4

Briggs & Stratton 00756286

BREAKER, Circuit - 15 Ampere

$

$

Currently unavailable

5

Briggs & Stratton 00743482

RECEPTACLE - 240 Volts (Twist-Lok)

$

$

Currently unavailable

6

Briggs & Stratton 00722152

WASHER, Lock - No. 10

$

$

Currently unavailable

7

Briggs & Stratton 00722158

NUT, Hex No. 10-32

$

$

Currently unavailable

8

Briggs & Stratton 00722471

NUT, Hex No. 8-32

$

$

Currently unavailable

9

Briggs & Stratton 00722264

WASHER, Lock - No. 8

$

$

Currently unavailable

10

Briggs & Stratton 00763807

RECEPTACLE - 120 Volts (Duplex special)

$

$

Currently unavailable

11

Briggs & Stratton 00722669

HOLDER, Fuse

$

$

Currently unavailable

12

Briggs & Stratton 00763097

RETAINER

$

$

Currently unavailable

13

Briggs & Stratton 00725367

POST, Battery Charging - RED

$

$

Currently unavailable

14

Briggs & Stratton 00730798

WASHER, Fiber

$

$

Currently unavailable

15

Briggs & Stratton 00725368

POST, Battery Charging - BLACK

$

$

Currently unavailable

16

Briggs & Stratton 00723365

WASHER, Lock (Shakeproof) - No. 8

$

$

Currently unavailable

17

Briggs & Stratton 00728985

SCREW, Pan Head Machine - No. 8-32 x 1/2"

$

$

Currently unavailable

18

Briggs & Stratton 00725105

SCREW, Round Head(Sems)-No.6-32 x 1/4"

$

$

Currently unavailable

19

Briggs & Stratton 00736701

SCREW, Pan Head Machine-No.10 x 32 x 5/8"

$

$

Currently unavailable

20

Briggs & Stratton 00722769

WASHER, Lock (Shakeproof) - No. 10

$

$

Currently unavailable

21

Briggs & Stratton 00722669

FUSE - 30 Ampere

$

$

Currently unavailable
