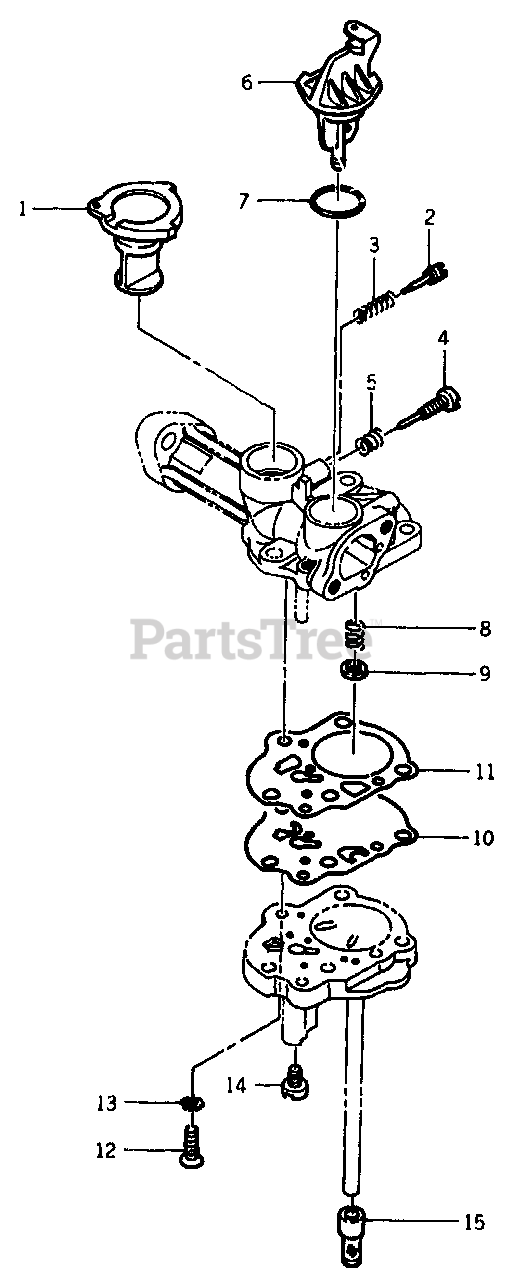

DPG850 (8779-0) - Generac 750 Watt Portable Generator Carburetor For 1.6 Horsepower Kawasaki Engine Parts Diagram

750 Watt Portable Generator

Carburetor For 1.6 Horsepower Kawasaki Engine Parts Diagram

  • Title

Briggs & Stratton 00717161892

CARBURETOR ASSEMBLY

Note: (Included Items 1 thru 15) - Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 00721661892

SHAFT, Throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 00721761892

SCREW, Adjustment

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 00721861892

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 00721961892

SCREW, Idle Speed Stop

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 00722061892

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 00722161892

SHAFT, Choke

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 00722261892

O-RING

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 00722361892

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 00722461892

CAP, Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 00722561892

DIAPHRAGM

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 00722661892

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 00722761892

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 00722861892

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 00722961892

JET, Main - No. 54

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 00723061892

STRAINER

Note: Contact Generac for quantity required

$

$

Currently unavailable
