DPPF-2100 - Echo Pole Saw, 56V Battery (SN: E60700001001 - E60700999999) Motor Parts Diagram

Pole Saw, 56V Battery

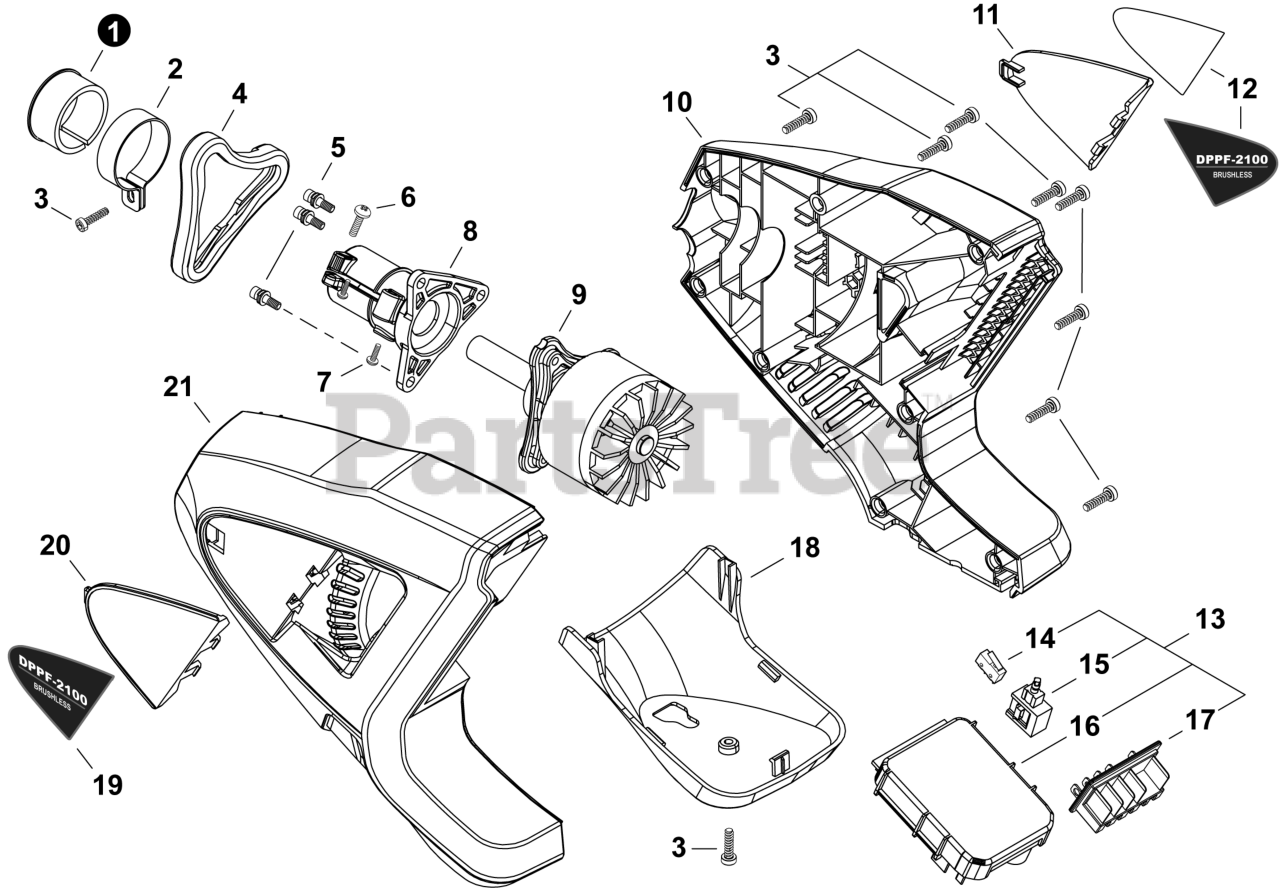

Motor Parts Diagram

  • Title

1

Echo V109000460

GASKET

$

$

Currently unavailable

2

Echo V495004100

CLAMP

$

$

Currently unavailable

3

Echo V252001040

SCREW - 4x16

$

$

Currently unavailable

4

Echo V109000470

GASKET

$

$

Currently unavailable

5

Echo V253001140

SCREW - 5x15

$

$

Currently unavailable

6

Echo V252001030

SCREW - 4x16

$

$

Currently unavailable

7

Echo V253001150

SCREW - 5x8

$

$

Currently unavailable

8

Echo V700000200

COUPLER

$

$

Currently unavailable

9

Echo A054000380

MOTOR ASSY

$

$

Currently unavailable

10

Echo A539000570

COVER, MOTOR - RIGHT

$

$

Currently unavailable

11

Echo A323000080

PIECE, COVER - RIGHT

$

$

Currently unavailable

12

Echo X503016590

LABEL - MODEL DPPF-2100 - RIGHT

$

$

Currently unavailable

13

Echo V043001240

CONTROL CABLE ASSY

Note: Includes items 14-17

$

$

Currently unavailable

14

Echo YH321000340

SWITCH, HIGH/LOW MICRO

$3.99

$

Usually ships in 2-4 days

0

15

Echo YH321000330

SWITCH, VARIABLE SPEED

$11.99

$

In Stock, only 1 left!

0

16

Echo YH317000010

PCBA (PRINTED CIRCUIT BOARD ASSEMBLY)

$63.99

$

Usually ships in 2-4 days

0

17

Echo YH322000000

TERMINAL BLOCK, BATTERY

$7.99

$

Usually ships in 2-4 days

0

18

Echo A175000450

STAND

$

$

Currently unavailable

19

Echo X503016610

LABEL - MODEL DPPF-2100 - LEFT

$

$

Currently unavailable

20

Echo A323000070

PIECE, COVER - LEFT

$

$

Currently unavailable

21

Echo A539000560

COVER, MOTOR - LEFT

$

$

Currently unavailable
