DRT 70 (960910013-00) - Husqvarna Rear-Tine Tiller (2012-03) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Tiller

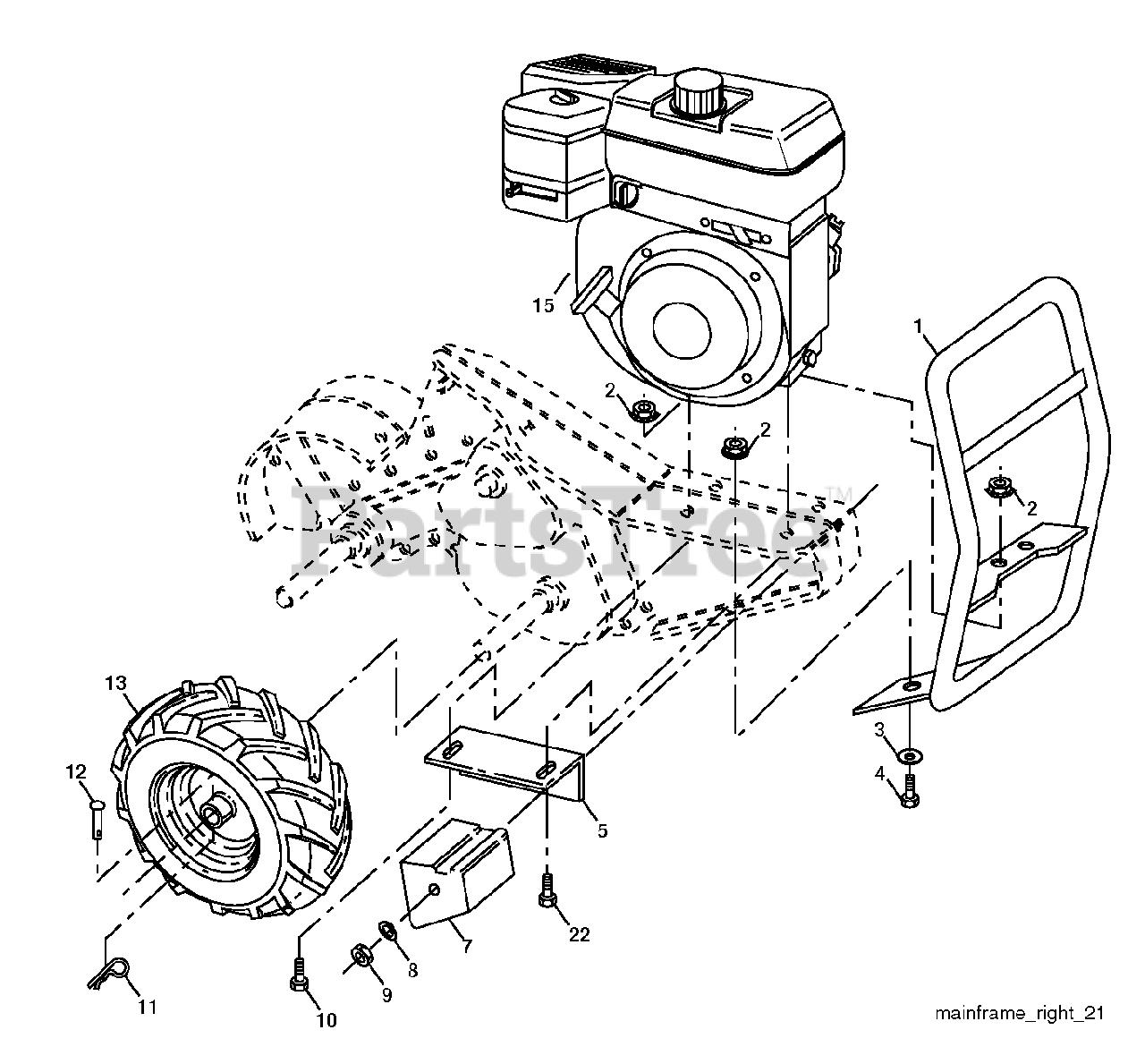

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Husqvarna 532185190

BUMPER.ASM.TILLER.
(Superseded to 583879301)

$

$

Not available

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532102332

DNO BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

7

Husqvarna 532102173

COUNTERWEIGHT, RH

$42.99

$

Usually ships in 3-10 days

0

8

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 3 left!

0

10

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$1.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

12

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 532102190

TIRE.13X5-6.CHEVRON.TILLER

$93.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532150740

RIM.ASM.6".SILVER

$109.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

15

000000000

Note: Briggs Stratton Model No 122002 (Order parts from Engine Manufacturer)

$

$

Not available

22

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

Usually ships in 3-10 days

0
