DRT 900 (960920028-00) - Poulan Pro Rear-Tine Tiller (2012-02) TRANSMISSION Parts Diagram

Rear-Tine Tiller

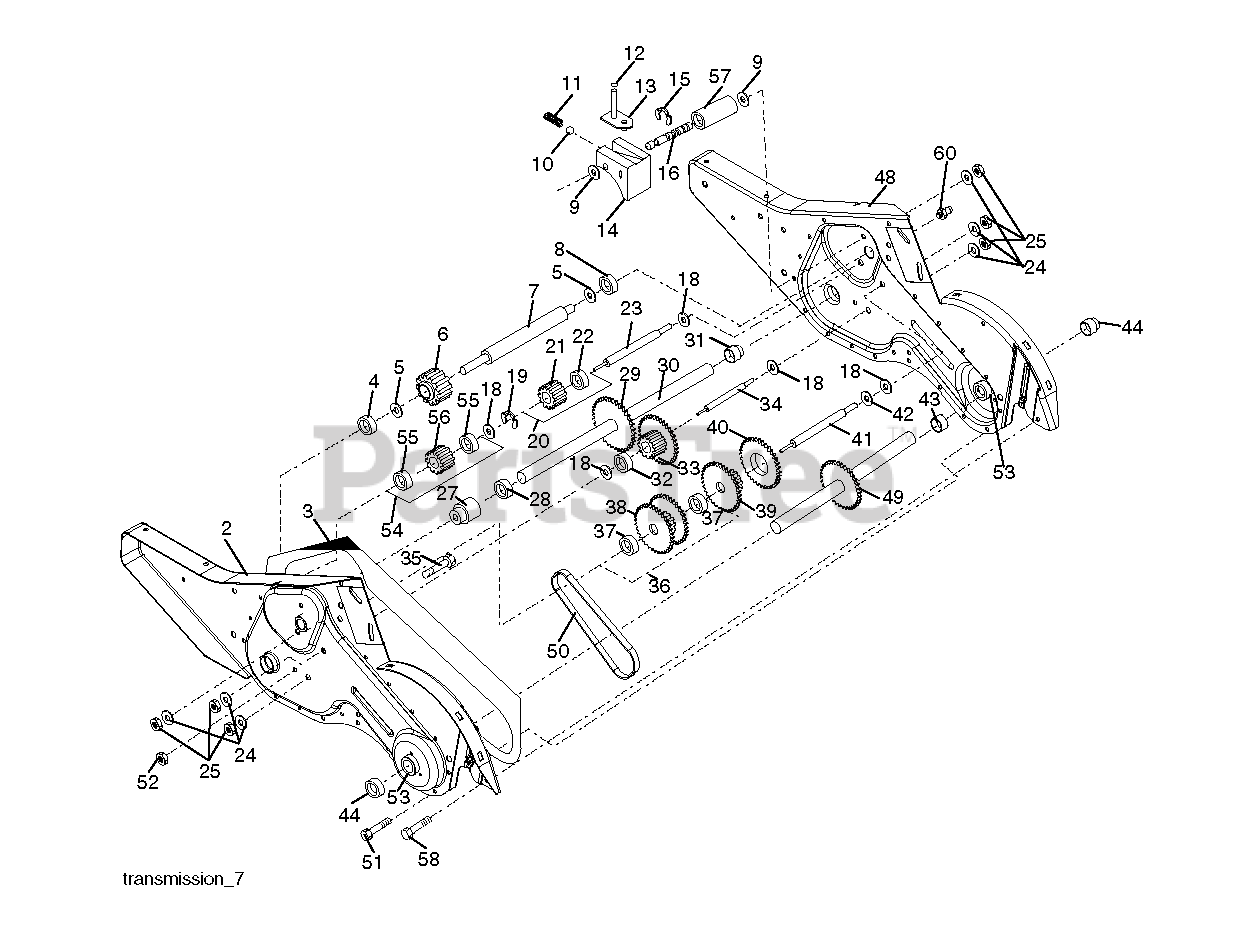

TRANSMISSION Parts Diagram

  • Title

--

Poulan 532188240

TRANSMISSION.ASM.17
(Superseded to 532181104)

Note: (Includes Key Nos 2-52)

$

$

Not available

2

Poulan 532188220

GEARCASE.ASM.DRT.LH.

Note: (Includes Key No 4)

$157.99

$

In Stock, only 1 left!

0

3

Poulan 532431022

GASKET.GEARCASE.CRT/DRT.TILLER

$25.99

$

In Stock, Qty 19

0

4

Poulan 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 20+

0

5

Poulan 532001370

THRUST WASHER

$6.49

$

In Stock, Qty 19

0

6

Poulan 532161520

GEAR.PINION.INPUT.DRT
(Superseded to 586196201)

$

$

Not available

7

Poulan 532161518

SHAFT.INPUT.D.9TEETH

$78.99

$

Usually ships in 3-10 days

0

8

Poulan 532048950

$

$

Not available

9

Poulan 532154467

WASHER, SEAL

$7.49

$

In Stock, Qty 12

0

10

Poulan 532007392

BALL, STEEL
(Superseded to 532124862)

$

$

Not available

11

Poulan 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 15

0

12

Poulan 532106160

O-RING TI

$6.49

$

In Stock, only 1 left!

0

13

Poulan 532142145

SHIFTING ARM

$

$

Not available

14

Poulan 532008353

SHIFT FORK TI

$34.99

$

In Stock, Qty 10

0

15

Poulan 812000039

KLIP RING

$6.49

$

In Stock, Qty 13

0

16

Poulan 532161516

SHAFT.SHIFT.DRT

$9.99

$

Usually ships in 3-10 days

0

18

Poulan 532004358

WASHER

$7.49

$

In Stock, only 2 left!

0

19

Poulan 812000040

KLIP RING

$6.49

$

In Stock, only 1 left!

0

20

Poulan 532102114

GEAR ASSY CRT

Note: (Includes Key Nos 21 and 22)

$

$

Not available

21

Poulan 532102115

GEAR-REV IDLR CRT

$17.99

$

Usually ships in 3-10 days

0

22

Poulan 532006803

NEEDLE BEARING TI

$10.99

$

In Stock, Qty 6

0

23

Poulan 532161527

SHAFT.IDLER.REVERSE.CRT

$24.99

$

In Stock, only 2 left!

0

24

Poulan 532551143

$

$

Not available

25

Poulan 532541143

$

$

Not available

27

Poulan 532143009

BEARING, SHAFT LH CRT
(Superseded to 532431219)

$

$

Not available

28

Poulan 532106390

SPACER

$4.99

$

In Stock, only 1 left!

0

29

Poulan 532102134

CHAIN CRT

$31.99

$

In Stock, Qty 20+

0

30

Poulan 532150737

GROUND SHAFT ASS'Y

$

$

Not available

31

Poulan 532143008

BEARING, SHAFT RH CRT

$

$

Not available

32

Poulan 532106388

SPACER TI

$6.49

$

In Stock, only 1 left!

0

33

Poulan 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

34

Poulan 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$27.99

$

Usually ships in 3-10 days

0

35

Poulan 532102101

SCRW WHIZ LOK CRT

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532161524

GEAR & SPROCKET.ASM.WBEARIN

Note: (Includes Key Nos 37 and 38)

$206.99

$

In Stock, only 2 left!

0

37

Poulan 532100413

BEARING.NEEDLE.CRT
(Superseded to 585695501)

$24.99

$

Usually ships in 3-10 days

0

38

Poulan 532161525

ASM.GEAR & SPROCKET
(Superseded to 532161524)

$206.99

$

In Stock, only 2 left!

0

39

Poulan 532161526

GEAR.CLUSTER.DRT.TILLER

$

$

Not available

40

Poulan 532105346

GEAR TI

$27.99

$

Usually ships in 3-10 days

0

41

Poulan 532161523

SHAFT.REDUCTION.FIRST.DRT

$

$

Not available

42

Poulan 532004220

BRNG RACE T

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 532106146

SPACER TI

$34.99

$

In Stock, only 1 left!

0

44

Poulan 532155236

SEAL ASM, OIL

$7.49

$

In Stock, Qty 14

0

48

Poulan 532188235

GEARCASE.ASM.DRT.RH.
(Superseded to 532181104)

Note: (Includes Key No 8)

$

$

Not available

49

Poulan 532431485

SHAFT.ASM.TINE

$

$

Not available

50

Poulan 532106147

CHAIN.TILLER

$66.99

$

In Stock, Qty 6

0

51

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

52

Poulan 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 532165140

BEARING KIT

$93.99

$

In Stock, Qty 7

0

54

Poulan 532161528

GEAR.ASM.DRT.TILLER

Note: (Includes Key No 55)

$

$

Not available

55

Poulan 532003400

BEARING.NEEDLE
(Superseded to 580755701)

$10.99

$

In Stock, only 2 left!

0

56

Poulan 532161529

GEAR.DRT.IDLER
(Superseded to 532161528)

$

$

Not available

57

Poulan 532165889

SPACER.SPLIT

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 532179520

BOLT SHOULDER 1/4-20 UNC X.875

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 532183226

FITTING.GREASE.TAPERED

$7.49

$

In Stock, only 3 left!

0

--

Poulan 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available
