DRT 900 (960930018-04) - Husqvarna Rear-Tine Tiller (2013-03) "MAINFRAME, RIGHT SIDE" Parts Diagram

Rear-Tine Tiller

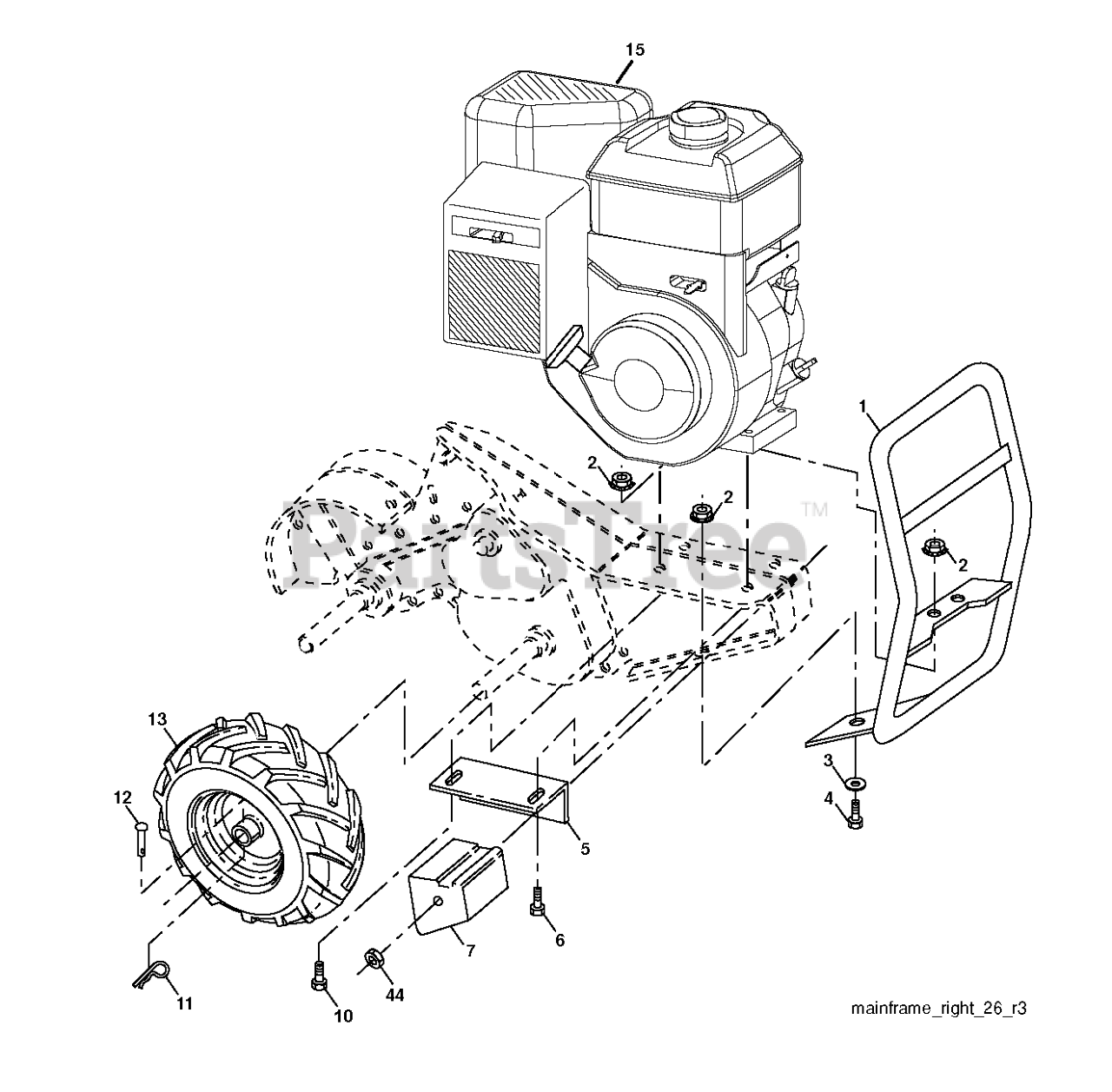

"MAINFRAME, RIGHT SIDE" Parts Diagram

  • Title

6

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

7

Husqvarna 581010401

COUNTERWEIGHT.RH

$42.99

$

Usually ships in 3-10 days

0

15

000000000

Note: Briggs & Stratton Model 12T402-0124-F8 (432683)

$

$

Not available

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 581864701

BRACKET.REINFORCEMENT.RH.BLACK

$

$

Not available

44

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 581509901

WHEEL.ASM.DRT.13X5-6.RT.SILVER

$145.99

$

Usually ships in 3-10 days

0

1

Husqvarna 583879301

BUMPER.ASM.TILLER.BLACK

$

$

Not available

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$1.49

$

Usually ships in 3-10 days

0
