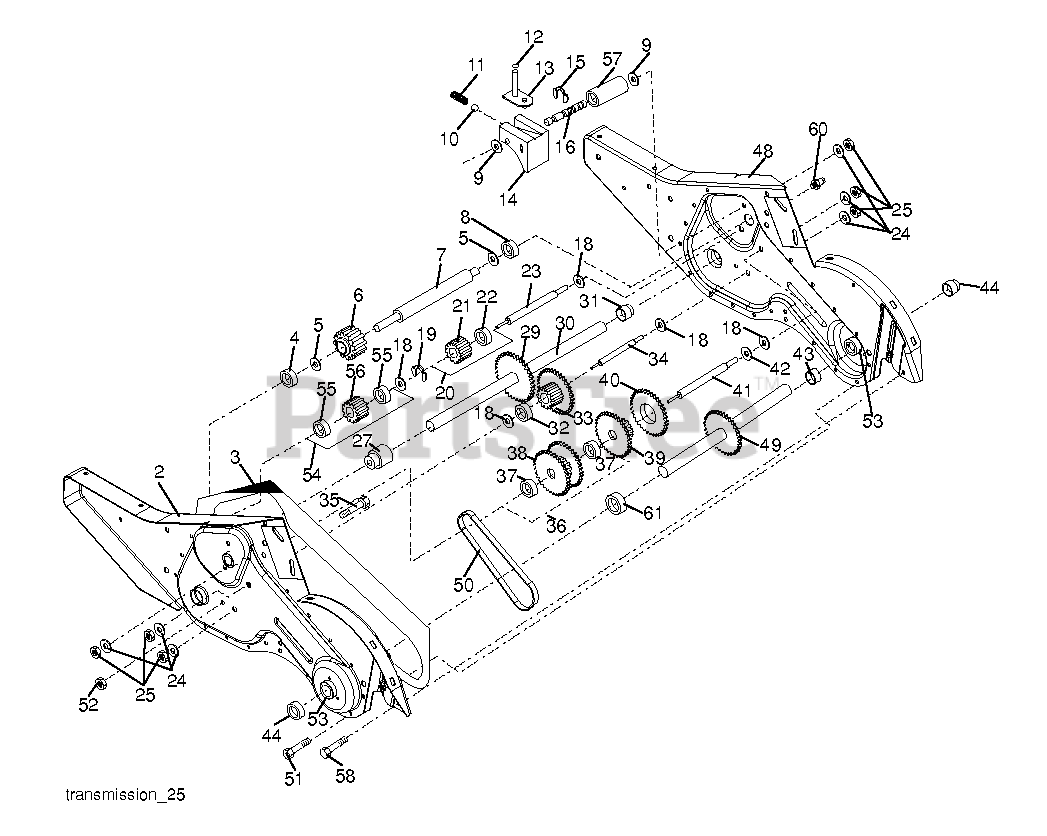

DRT 900 E (960930014-02) - Husqvarna Rear-Tine Tiller (2011-09) TRANSMISSION Parts Diagram

Rear-Tine Tiller

TRANSMISSION Parts Diagram

  • Title

--

Husqvarna 532188240

TRANSMISSION.ASM.17
(Superseded to 532181104)

Note: . 2 3 4-52

$

$

Not available

2

Husqvarna 532188220

GEARCASE.ASM.DRT.LH.

Note: LH. 4

$157.99

$

In Stock, only 1 left!

0

3

Husqvarna 532431022

GASKET.GEARCASE.CRT/DRT.TILLER

$25.99

$

In Stock, Qty 16

0

4

Husqvarna 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 16

0

5

Husqvarna 532001370

THRUST WASHER

$6.49

$

In Stock, Qty 17

0

6

Husqvarna 532161520

GEAR.PINION.INPUT.DRT
(Superseded to 586196201)

$

$

Not available

7

Husqvarna 532161518

SHAFT.INPUT.D.9TEETH

$78.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532004895

BEARING

$17.99

$

In Stock, Qty 20+

0

9

Husqvarna 532154467

WASHER, SEAL (2 2)

$7.49

$

In Stock, Qty 9

0

10

Husqvarna 532007392

BALL, STEEL
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, Qty 13

0

12

Husqvarna 532106160

O-RING TI

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532142145

BRACKET ASM.SHIFT.CRT

$

$

Not available

14

Husqvarna 532008353

SHIFT FORK TI

$34.99

$

In Stock, Qty 10

0

15

Husqvarna 812000039

KLIP RING

$6.49

$

In Stock, Qty 12

0

16

Husqvarna 532161516

SHAFT.SHIFT.DRT

$9.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532004358

WASHER

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 812000040

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532102114

GEAR ASSY CRT

Note: . 21 22

$

$

Not available

21

Husqvarna 532102115

GEAR-REV IDLR CRT

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532006803

NEEDLE BEARING TI

$10.99

$

In Stock, only 4 left!

0

23

Husqvarna 532161527

SHAFT.IDLER.REVERSE.CRT

$24.99

$

In Stock, only 2 left!

0

24

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

25

Husqvarna 873610700

NUT.ASF.HEX.7/16

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532431219

BEARING.GROUND.DRIVE

Note: LH

$

$

Not available

29

Husqvarna 532102134

CHAIN CRT

$31.99

$

In Stock, Qty 20+

0

30

Husqvarna 532150737

GROUND SHAFT ASS'Y

$

$

Not available

31

Husqvarna 532143008

BEARING, SHAFT RH CRT

Note: RH

$

$

Not available

32

Husqvarna 532106388

SPACER TI

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

34

Husqvarna 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$27.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532102101

SCRW WHIZ LOK CRT

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532161524

GEAR & SPROCKET.ASM.WBEARIN

Note: . 37 38

$206.99

$

In Stock, only 2 left!

0

37

Husqvarna 532100413

BEARING.NEEDLE.CRT
(Superseded to 585695501)

$24.99

$

In Stock, only 2 left!

0

38

Husqvarna 532161525

ASM.GEAR & SPROCKET
(Superseded to 532161524)

$206.99

$

In Stock, only 2 left!

0

39

Husqvarna 532161526

GEAR.CLUSTER.DRT.TILLER

$

$

Not available

40

Husqvarna 532105346

GEAR TI

$27.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532161523

SHAFT.REDUCTION.FIRST.DRT

$

$

Not available

42

Husqvarna 532004220

BRNG RACE T

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532106146

SPACER TI

$34.99

$

In Stock, only 1 left!

0

44

Husqvarna 532155236

SEAL ASM, OIL

$7.49

$

In Stock, Qty 10

0

48

Husqvarna 532188235

GEARCASE.ASM.DRT.RH.
(Superseded to 532181104)

$

$

Not available

49

Husqvarna 532431485

SHAFT.ASM.TINE

$

$

Not available

50

Husqvarna 532106147

CHAIN.TILLER

$66.99

$

In Stock, Qty 5

0

51

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532165140

BEARING KIT

$93.99

$

In Stock, Qty 6

0

54

Husqvarna 532161528

GEAR.ASM.DRT.TILLER

Note: . 55

$

$

Not available

55

Husqvarna 532003400

BEARING.NEEDLE
(Superseded to 580755701)

$10.99

$

In Stock, only 2 left!

0

56

Husqvarna 532161529

GEAR.DRT.IDLER
(Superseded to 532161528)

$

$

Not available

57

Husqvarna 532165889

SPACER.SPLIT

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532179520

BOLT SHOULDER 1/4-20 UNC X.875

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532183226

FITTING.GREASE.TAPERED

$7.49

$

In Stock, only 3 left!

0

61

Husqvarna 532431015

SPACER.1.015X1.50X.650

$4.99

$

In Stock, only 1 left!

0

Husqvarna 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

Note: NOT SHOWN

$

$

Not available
