DRT 900 E - Husqvarna Rear-Tine Tiller (2013-03) "MAINFRAME, RIGHT SIDE" Parts Diagram

Rear-Tine Tiller

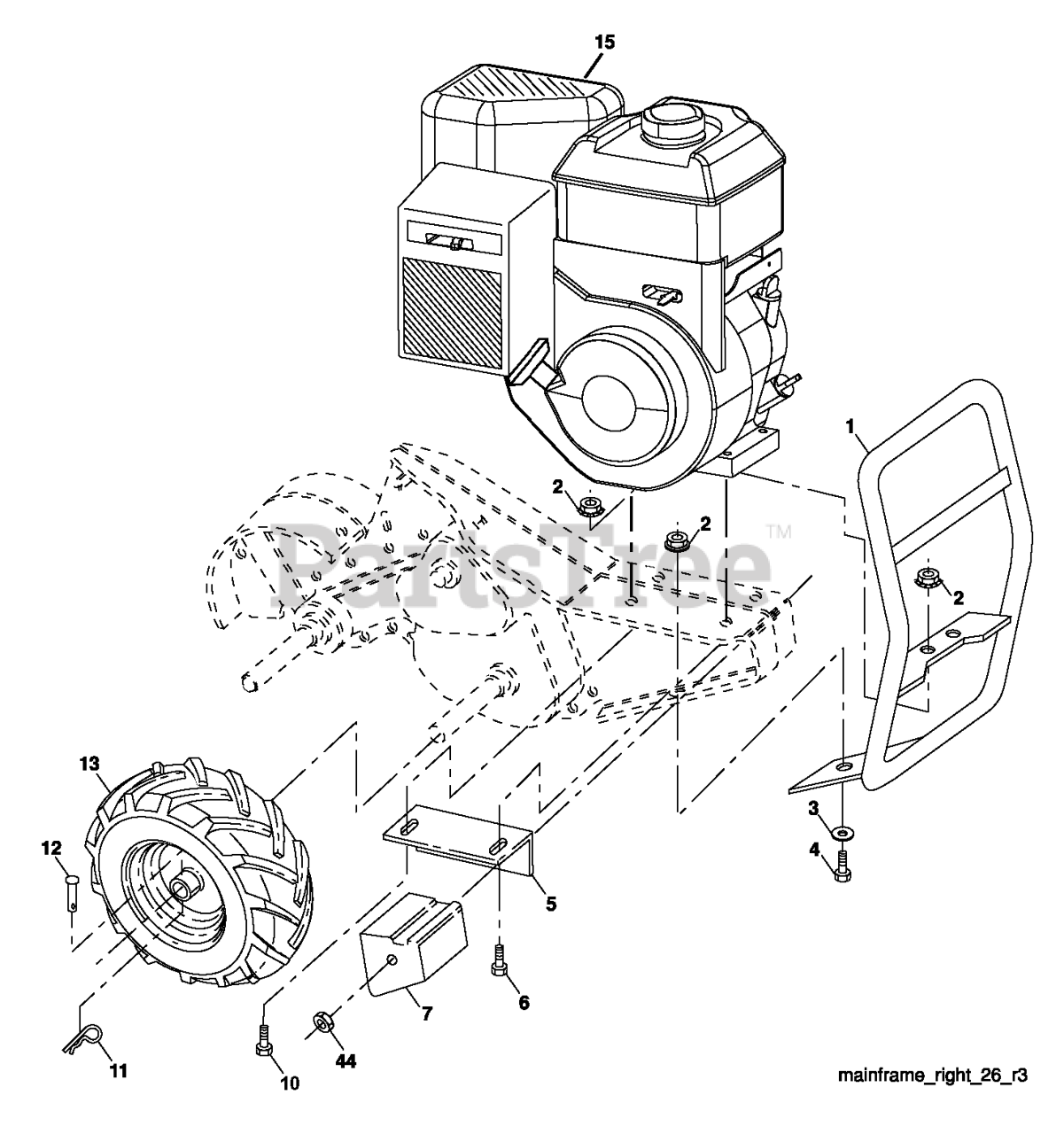

"MAINFRAME, RIGHT SIDE" Parts Diagram

  • Title

1

Husqvarna 581602202

BUMPER.ASM.REAR.TILLER.479

$45.99

$

In Stock, only 4 left!

0

13

Husqvarna 583969701

WHEEL.DRT.RH.13X5X6.SILVER.KEN

$

$

Not available

12

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 581864701

BRACKET.REINFORCEMENT.RH.BLACK

$

$

Not available

15

000000000

Note: B&S 12T405-1627-F1 FOR PARTS & SERVICE 1-800-233-3723

$

$

Not available

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$1.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532102173

COUNTERWEIGHT, RH

$42.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

6

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0
