DRT 900 H (960930012-01) - Husqvarna Rear-Tine Tiller (2010-10) TINE SHIELD Parts Diagram

Rear-Tine Tiller

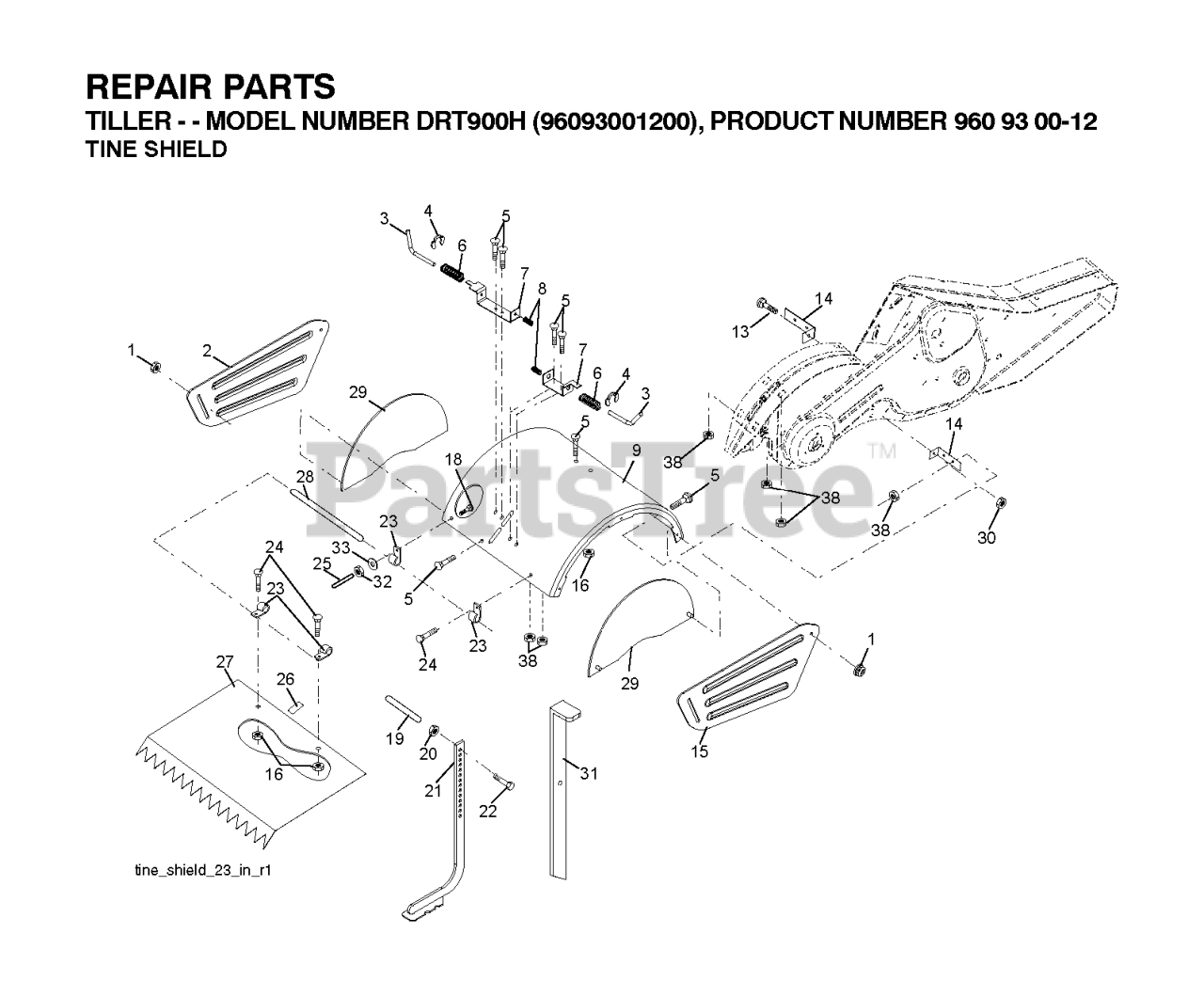

TINE SHIELD Parts Diagram

  • Title

9

Husqvarna 532403889

SHIELD.PNT.TINE.17"M
(Superseded to 532440444)

$56.99

$

In Stock, only 2 left!

0

18

Husqvarna 872040410

BOLT

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

2

Husqvarna 532162952

SHIELD
(Superseded to 532440452)

Note: LH

$

$

Not available

7

Husqvarna 532008392

BRACKET.LATCH.STAKE.3.20.BLACK

$

$

Not available

19

Husqvarna 532102701

GRIP CRT

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 3 left!

0

24

Husqvarna 872140404

BOLT

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

30

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532004440

HINGE CRT

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532403960

SHIELD.ASM.SIDE.ORANGE.(OLD)
(Superseded to 585414301)

$

$

Not available

15

Husqvarna 532162953

SIDE SHIELD RH
(Superseded to 532440450)

Note: RH

$

$

Not available

33

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 532120588

PIN.HINGE.TILLER

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532008394

SPRING TI

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

PAD IDLER TI

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532102156

STAKE.DEPTH.16.CRT.BLACK

$

$

Not available

27

Husqvarna 532125016

SHIELD LEVELING
(Superseded to 532440448)

$37.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 874930632

BOLT.375-16

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 532109230

SPRING CRT

$6.49

$

In Stock, Qty 12

0

31

Husqvarna 532423463

RP.STAKE.DEPTH.DRAG.TILLR.GREY

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532124343

BRACKET.TINE.SHIELD.TILLER
(Superseded to 584459301)

$22.99

$

Usually ships in 3-10 days

0
