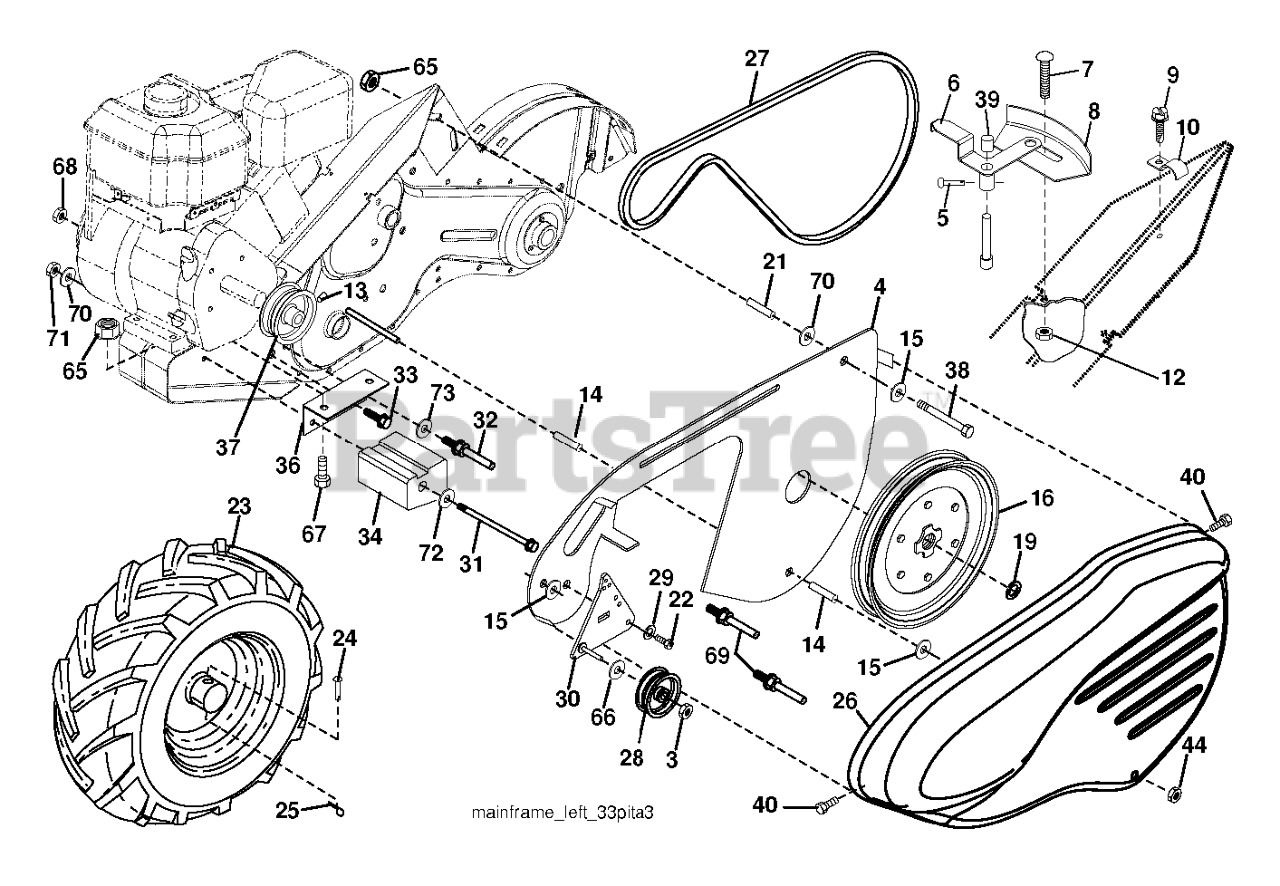

DRT 900 H (960930012-06) - Husqvarna Rear-Tine Tiller (2013-12) "MAINFRAME, LEFT SIDE" Parts Diagram

Rear-Tine Tiller

"MAINFRAME, LEFT SIDE" Parts Diagram

  • Title

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$20.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

6

Husqvarna 532196066

COVER.MANDREL.LH.54"20

$28.99

$

In Stock, Qty 5

0

60

Husqvarna 532187607

BAFFLE CENTER 54" MOWER
(Superseded to 531168801)

$26.99

$

In Stock, Qty 8

0

120

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 873680600

LOCKNUT

$

$

Not available

97

Husqvarna 532178515

WASHER

$6.99

$

In Stock, Qty 20+

0

122

Husqvarna 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, Qty 12

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

50

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.49

$

In Stock, Qty 20+

0

190

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

16

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$3.99

$

In Stock, Qty 20+

0

242

Husqvarna 532415598

PORT.WASHOUT

$7.99

$

In Stock, Qty 20+

0

59

Husqvarna 532187344

BAFFLE.LEFT.54"
(Superseded to 531168701)

$26.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

196

Husqvarna 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532199300

DECK.ASM SVC.54".5GWB.GREY
(Superseded to 532199298)

$

$

Not available

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532187292

RP.MANDREL ASM. SERVICE
(Superseded to 587820301)

Note: "INCLUDES HOUSING, SHAFT ASSEMBLY, AND BEARING ONLY - PULLEY/NUT/WASHER AND BLADE/BOLT/WASHERS NOT INCLUDED"

$62.99

$

In Stock, Qty 20+

0

13

Husqvarna 532187291

SHAFT ASM MANDREL

$31.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 532197181

COVER.MANDREL.RH.54.20

$34.99

$

In Stock, Qty 7

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

In Stock, Qty 20+

0

113

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

39

Husqvarna 532197380

RB PULLEY.IDLER.4.50/HUB SPEC
(Superseded to 532196104)

$45.99

$

In Stock, Qty 20+

0

52

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$43.99

$

In Stock, Qty 20+

0

12

Husqvarna 532404851

ROD.ANTI.SWAY.48/54"K4

$28.99

$

In Stock, Qty 20+

0

47

Husqvarna 532196103

RP.BELT.DRIVE.54."2006
(Superseded to 587686701)

$68.99

$

In Stock, Qty 20+

0

192

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$43.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

188

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

114

Husqvarna 532187556

ROD TENSION RELIEF

$22.99

$

In Stock, only 1 left!

0

187

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

194

Husqvarna 872140716

BOLT.CARR.SQNK.7/16
(Superseded to 874490736)

$13.99

$

In Stock, Qty 13

0

- -

Husqvarna 532415598

PORT.WASHOUT

$7.99

$

In Stock, Qty 20+

0

98

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 20+

0

43

Husqvarna 532196065

ARM.IDLER
(Superseded to 531169301)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532187256

BLADE.BAGGING.54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 20+

0

185

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 532188938

DEFLECTOR
(Superseded to 532187257)

$74.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

- -

Husqvarna 532187255

54" MULCH BLADE

$22.99

$

In Stock, Qty 20+

0

1

Husqvarna 532403125

DECK.WELDMENT.54"MS418
(Superseded to 532199298)

$

$

Not available

58

Husqvarna 532187342

BAFFLE.RIGHT.54"
(Superseded to 531168601)

$20.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

189

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$17.99

$

In Stock, Qty 14

0

12

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 874770508

BOLT

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532130812

RP.ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 4 left!

0

38

Husqvarna 874760544

BOLT
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 6

0

9

Husqvarna 532086777

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 583879201

PANEL.INDICATOR.SHIFT.BLACK.
(Superseded to 532161530)

$

$

Not available

24

Husqvarna 532171271

RIVET
(Superseded to 532126875)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 532440438

GUARD.BELT.TILLER.ORANGE

$51.99

$

In Stock, only 1 left!

0

4

Husqvarna 583877701

SHIELD.INNER.BELT.GUARD.RT.BLA
(Superseded to 532432420)

Note: RT

$66.99

$

Usually ships in 3-10 days

0

65

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$

$

Not available

5

Husqvarna 532164329

PIN.SPIROL.FLARED

$4.99

$

In Stock, only 1 left!

0

73

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532102141

SHIFT ARM CRT

$

$

Not available

13

Husqvarna 823230506

SET SCREW

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 812000028

RETAINING RING LT

$2.49

$

In Stock, only 2 left!

0

28

Husqvarna 532104679

PULLEY-IDLER TI

$20.99

$

In Stock, Qty 5

0

29

Husqvarna 812000032

KLIP RING

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 873510600

NUT

$

$

Not available

30

Husqvarna 584289201

BRACKET.IDLER.ASM.LONG

$

$

Not available

16

Husqvarna 532145102

SHEAVE, TRANSMISSION

$74.99

$

In Stock, only 1 left!

0

40

Husqvarna 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 532156117

SPACER-SPLIT.327 X .42

$

$

Not available

33

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

70

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 532140062

CAP.PLUNGER.BLACK

$

$

Not available

15

Husqvarna 819112206

WASHER.FLAT.34X1.38X22

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532162756

LEVER.ASM.SHIFT.RED

$20.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 581509902

WHEEL.ASM.DRT.13X5-6.LT.SILVER

$

$

Not available

36

Husqvarna 581864801

BRACKET.REINFORCEMENT.LH.PNT
(Superseded to 532102331)

Note: LH

$8.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532131691

SPACER SPLIT

$5.99

$

Usually ships in 3-10 days

0

66

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

71

Husqvarna 873680600

LOCKNUT

$

$

Not available

7

Husqvarna 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

27

Husqvarna 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, Qty 20+

0

34

Husqvarna 581010601

COUNTERWEIGHT.LH

Note: LH

$113.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

10

Husqvarna 532446045

CLIP.PLATED
(Superseded to 532009484)

$5.99

$

In Stock, only 3 left!

0

67

Husqvarna 874760524

BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532164173

KEEPER.BELT.ENGINE

$6.99

$

In Stock, only 2 left!

0

31

Husqvarna 581747201

BOLT.FIN.HEX.3/8-16UNC X 11.5

$7.99

$

Usually ships in 3-10 days

0
