DS 250 - Husqvarna Drill System (2008-27) CARRIAGE Parts Diagram

Drill System

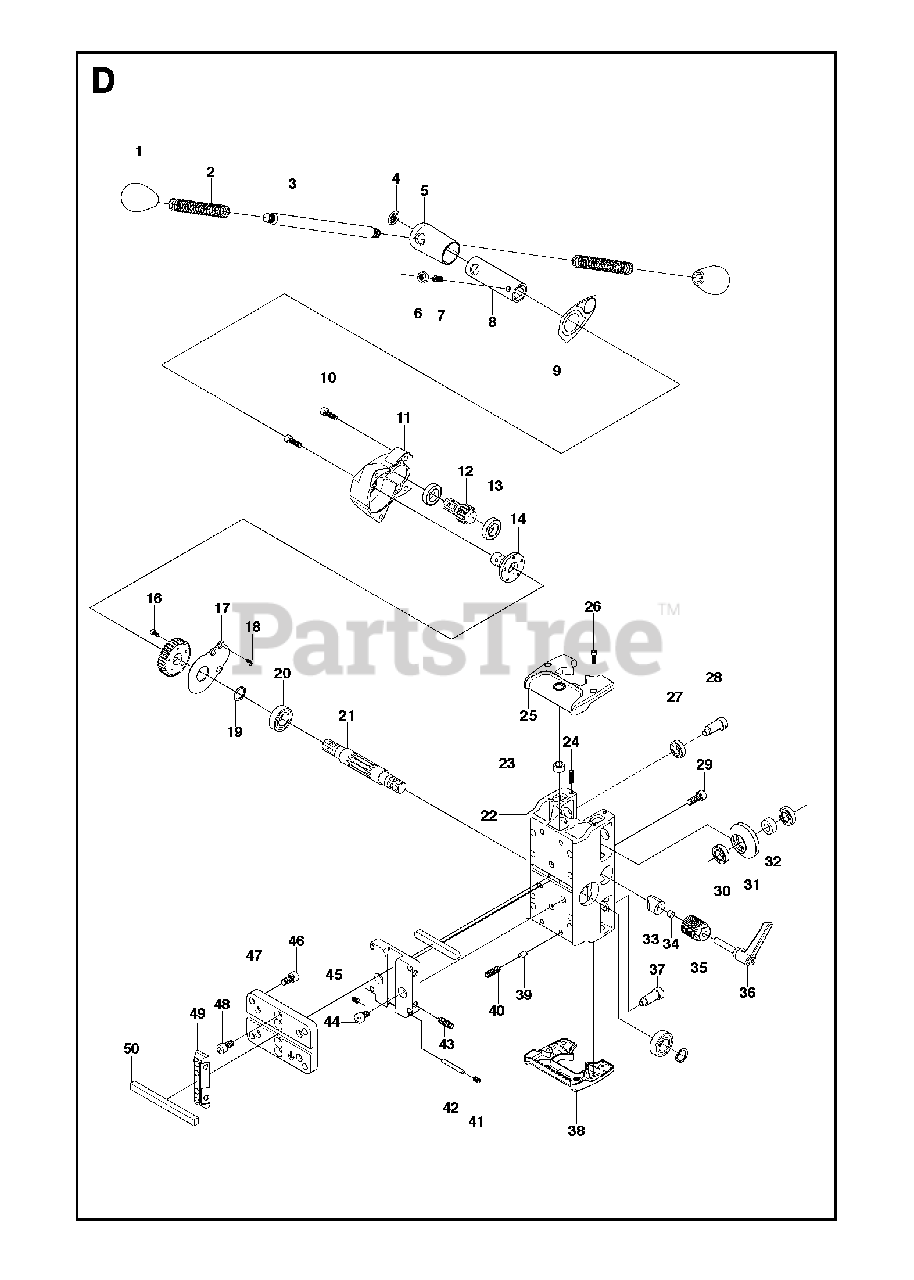

CARRIAGE Parts Diagram

  • Title

1

Husqvarna Construction 531 14 06-72

GRIP

$43.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 541 40 51-63

SPRING

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 541 40 49-05

SHAFT

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 541 40 50-47

DECAL

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 541 40 51-37

HANDLE

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 732 21 18-01

LOCK NUT

$4.99

$

In Stock, Qty 8

0

7

Husqvarna Construction 541 40 41-33

BALL

$3.49

$

In Stock, only 2 left!

0

8

Husqvarna Construction 541 40 40-44

SHAFT

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 541 40 49-35

DECAL

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 725 53 72-01

SCREW IHSCM
(Superseded to 725537455)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 541 40 49-27

GEAR HOUSING

$60.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 541 40 49-11

MODULE

$57.17

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 541 40 49-10

BEARING

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 541 40 49-13

SHAFT

$56.00

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 725 52 87-01

SCREW IHSCM

$1.99

$

In Stock, Qty 10

0

17

Husqvarna Construction 541 40 49-28

COVER PLATE

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 725 62 87-01

SCREW IHCSFM

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 735 31 19-00

CIRCLIP

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 738 21 03-04

BALL BEARING

$113.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 541 40 48-06

CARRIAGE

$58.63

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 541 40 47-98

CARRIAGE

$485.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 541 40 50-36

LEVEL

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 728 73 70-01

SCREW IHSETM

$

$

Not available

25

Husqvarna Construction 541 40 48-00

GUARD

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 725 52 93-01

SCREW IHSCM

$3.49

$

In Stock, only 3 left!

0

27

Husqvarna Construction 541 40 48-03

ECCENTRIC BUSHING

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 541 40 48-05

ECCENTRIC DISC

$144.99

$

In Stock, only 1 left!

0

29

Husqvarna Construction 725 54 51-01

SCREW IHSCM

$3.49

$

In Stock, Qty 13

0

30

Husqvarna Construction 725 54 30-01

TBD

$

$

Not available

31

Husqvarna Construction 541 40 40-34

BEARING

$36.17

$

Usually ships in 3-10 days

0

32

Husqvarna Construction 541 40 48-95

NYLON ROLLER

$36.17

$

Usually ships in 3-10 days

0

33

Husqvarna Construction 541 40 40-36

SPACER

$

$

Not available

34

Husqvarna Construction 541 40 48-66

FRICTION BRAKE

$22.99

$

In Stock, only 1 left!

0

35

Husqvarna Construction 541 40 48-65

BRAKE THRUST PLATE

$22.99

$

In Stock, only 1 left!

0

36

Husqvarna Construction 541 40 48-64

BRAKE

$15.99

$

In Stock, only 2 left!

0

37

Husqvarna Construction 541 40 48-62

GUARD

$6.99

$

In Stock, only 1 left!

0

38

Husqvarna Construction 541 40 48-04

SHAFT

$10.99

$

In Stock, only 2 left!

0

39

Husqvarna Construction 541 40 48-62

GUARD

$6.99

$

In Stock, only 1 left!

0

40

Husqvarna Construction 541 40 40-32

GUIDE

$12.99

$

In Stock, only 4 left!

0

41

Husqvarna Construction 728 64 53-01

SCREW IHSETM

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna Construction 720 13 18-50

PARALLEL PIN

$

$

Not available

43

Husqvarna 728 83 64-01

SCREW IHSETM
(Superseded to 593574701)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna Construction 728 74 55-01

SCREW IHSETM

$2.52

$

Usually ships in 3-10 days

0

45

Husqvarna Construction 725 54 47-01

SCREW IHSCM

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna Construction 541 40 51-41

QUICK ATTACH DOVE TAIL RECEIVER

$579.99

$

Usually ships in 3-10 days

0

47

Husqvarna Construction 541 40 51-42

QA DOVETAIL BRACKET

$149.99

$

Usually ships in 3-10 days

0

48

Husqvarna Construction 725 54 49-01

SCREW IHSCM

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna Construction 541 40 51-39

QA MOTOR PLATE

$115.50

$

Usually ships in 3-10 days

0

50

Husqvarna Construction 725 54 49-01

SCREW IHSCM

$4.99

$

Usually ships in 3-10 days

0

51

Husqvarna Construction 541 40 51-43

KEY

$17.99

$

Usually ships in 3-10 days

0
