DS 250 Single Speed - Husqvarna Drill System (2013-01) BACK SUPPORT Parts Diagram

Drill System

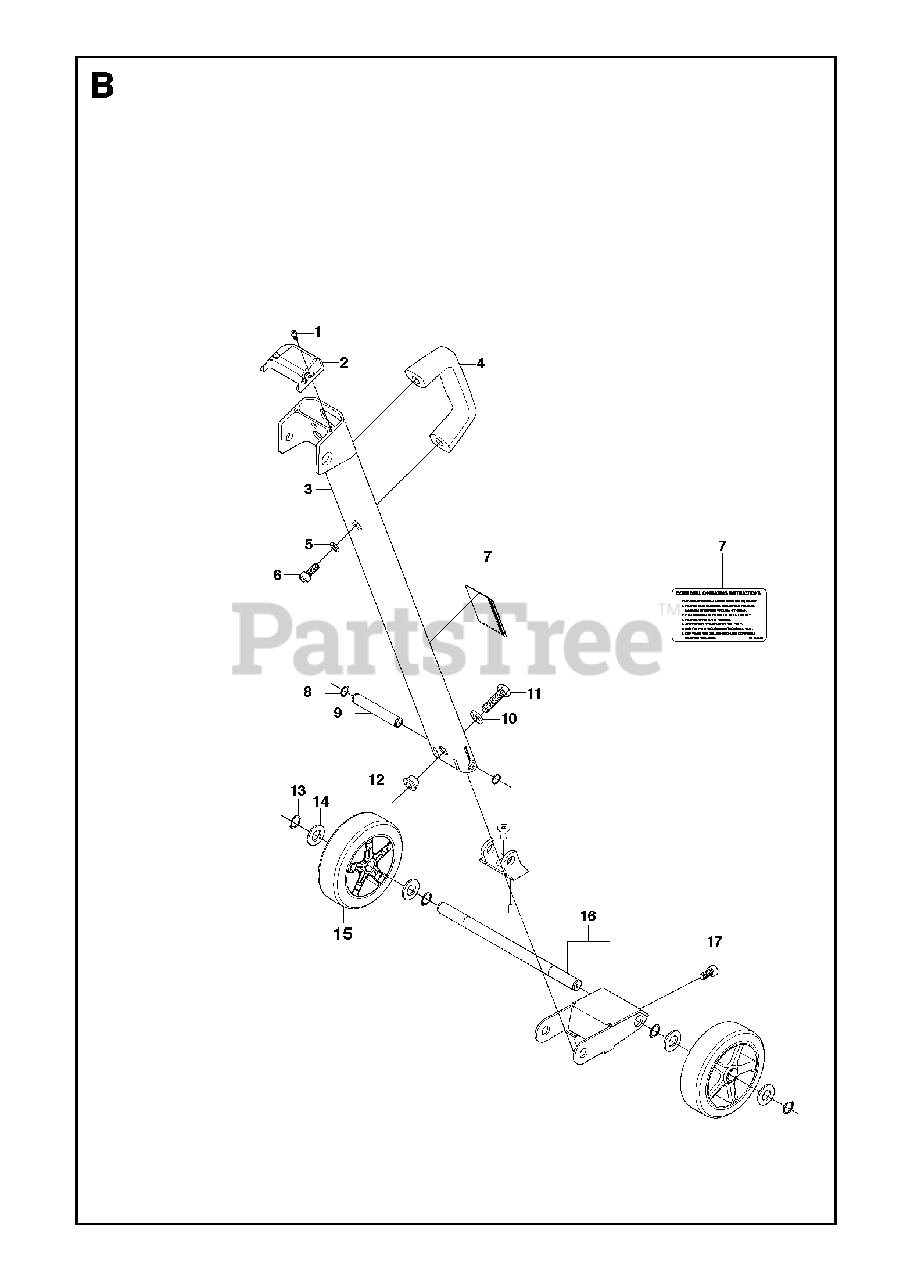

BACK SUPPORT Parts Diagram

  • Title

1

Husqvarna Construction 725 52 89-01

SCREW IHSCM

$1.99

$

In Stock, Qty 20+

0

2

Husqvarna Construction 541 40 48-99

GUARD

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 541 40 49-09

HANDLE

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 541 40 48-83

SUPPORT

$133.99

$

Usually ships in 3-10 days

0

5

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna Construction 725 54 51-01

SCREW IHSCM

$3.49

$

In Stock, Qty 13

0

7

Husqvarna Construction 541 40 40-98

DRILL

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 735 31 15-00

CIRCLIP

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 541 40 50-88

PIVOT

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna Construction 725 24 97-71

SCREW EHHM

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna Construction 541 40 50-67

COLUMN

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 735 31 17-01

CIRCLIPNot for Single Speed

$

$

Not available

14

Husqvarna 734 11 82-01

WASHERNot for Single Speed

$5.49

$

In Stock, Qty 12

0

15

Husqvarna Construction 541 40 50-84

WHEELNot for Single Speed

$50.99

$

In Stock, only 2 left!

0

16

Husqvarna Construction 541 40 50-87

WHEELNot for Single Speed

$66.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 725 54 49-01

SCREW IHSCMNot for Single Speed

$4.99

$

Usually ships in 3-10 days

0
