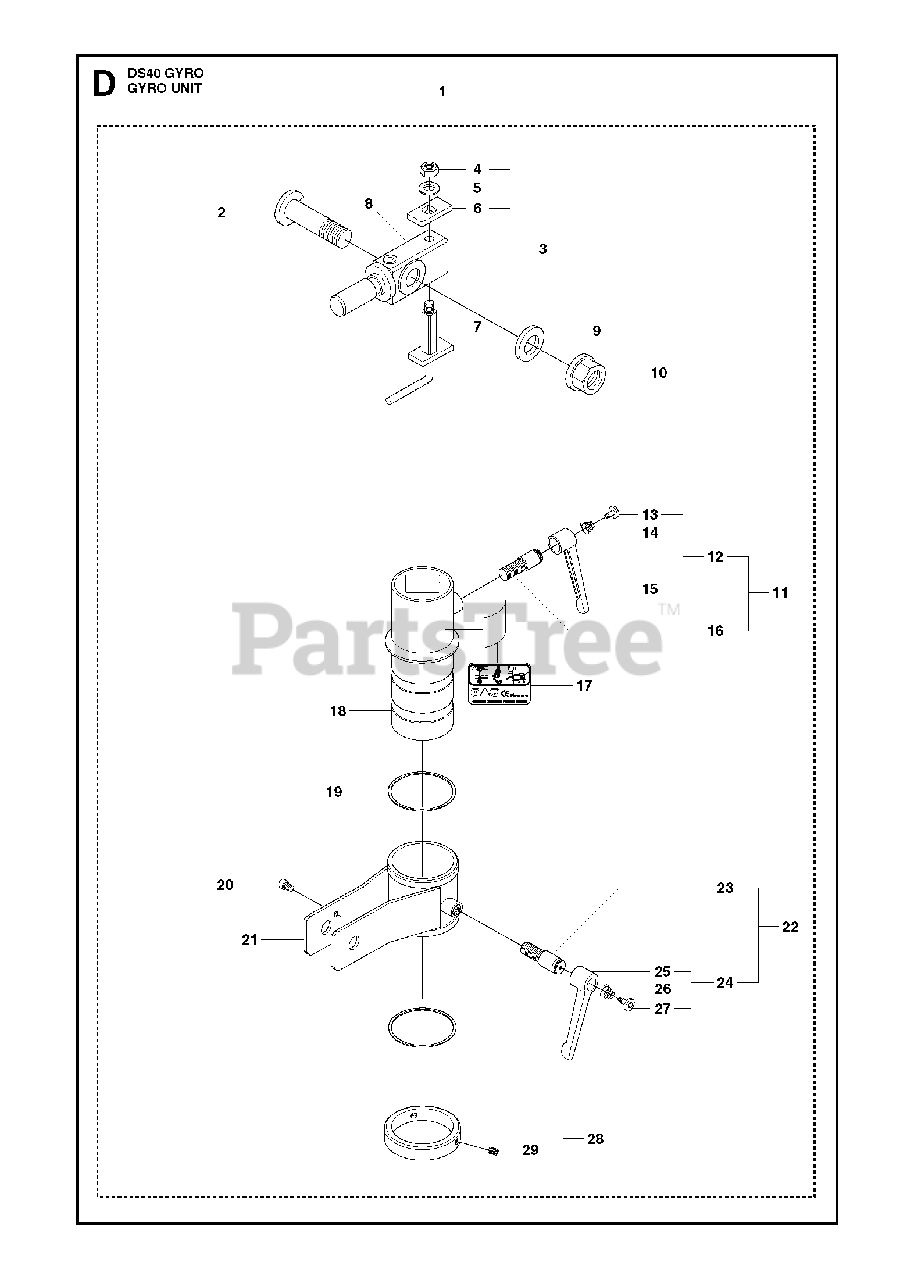

GYRO UNIT Parts Diagram

  • Title

1

Husqvarna Construction 506 40 91-05

BRACKET GYROIncl. 2, 3, 8-11, 17-22, 28

$

$

Not available

2

Husqvarna Construction 531 14 07-90

SHAFT

$

$

Not available

3

Husqvarna Construction 506 40 16-02

LOCK ARMIncl. 4-7

$

$

Not available

4

Husqvarna Construction 531 14 06-00

NUT

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 531 14 07-22

WASHER

$10.44

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 531 14 07-75

WASHER

$

$

Not available

7

Husqvarna Construction 531 14 07-89

KNOB

$

$

Not available

8

Husqvarna Construction 544 34 97-02

RETAINER

$

$

Not available

9

Husqvarna Construction 531 14 07-87

WASHER

$

$

Not available

10

Husqvarna 501 38 01-01

NUT

$

$

Not available

11

Husqvarna Construction 506 40 77-13

KNOBIncl. 12, 16

$

$

Not available

12

Husqvarna 501 38 46-03

HANDLEIncl. 13-15

$

$

Not available

13

Husqvarna 501 38 60-01

SCREW

$

$

Not available

14

Husqvarna 501 38 47-01

SPRING

$

$

Not available

15

Husqvarna Construction 504 01 81-01

HANDLE

$

$

Not available

16

Husqvarna Construction 544 23 56-02

SCREW

$38.38

$

Usually ships in 3-10 days

0

17

Husqvarna 544 12 85-01

LABEL

$

$

Not available

18

Husqvarna Construction 504 02 31-01

SLEEVE

$

$

Not available

19

Husqvarna Construction 531 14 07-99

WASHER

$

$

Not available

20

Husqvarna Construction 531 14 08-00

SCREW

$

$

Not available

21

Husqvarna Construction 504 02 33-01

RETAINER

$

$

Not available

22

Husqvarna Construction 506 40 77-13

KNOBIncl. 23, 24

$

$

Not available

23

Husqvarna Construction 544 23 56-02

SCREW

$38.38

$

Usually ships in 3-10 days

0

24

Husqvarna 501 38 46-03

HANDLEIncl. 25-27

$

$

Not available

25

Husqvarna Construction 504 01 81-01

HANDLE

$

$

Not available

26

Husqvarna 501 38 47-01

SPRING

$

$

Not available

27

Husqvarna 501 38 60-01

SCREW

$

$

Not available

28

Husqvarna Construction 506 40 18-02

CIRCLIPIncl. 29

$

$

Not available

29

Husqvarna Construction 531 14 06-70

STOP SCREW

$2.63

$

Usually ships in 3-10 days

0
