DS 70 Gyro - Husqvarna Drill System (2009-26) EXPANDABLE COLLUMN Parts Diagram

Drill System

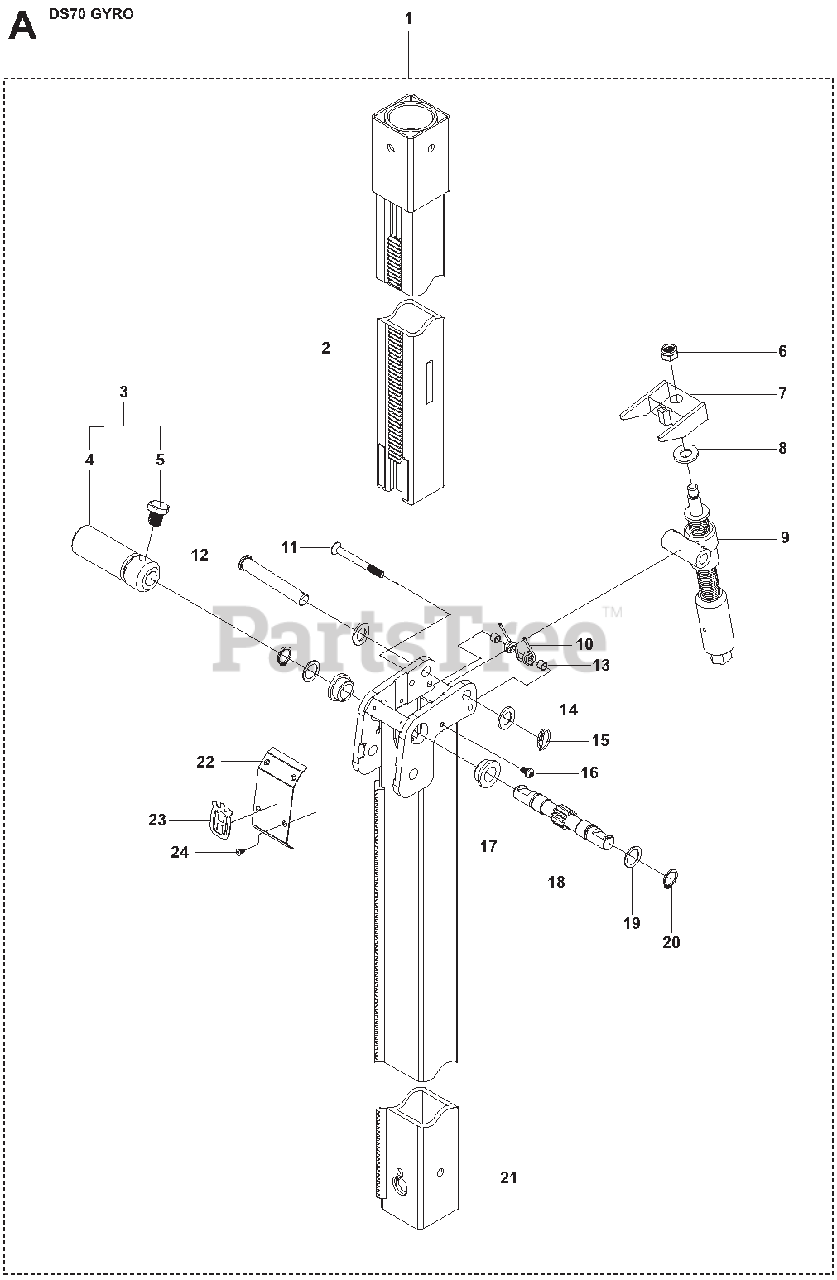

EXPANDABLE COLLUMN Parts Diagram

  • Title

1

Husqvarna Construction 504 90 85-01

COLUMNIncl 2-34

$

$

Not available

2

Husqvarna Construction 522 98 74-01

TUBE

$

$

Not available

3

Husqvarna Construction 522 94 89-01

FEED HANDLEIncl 4-5

$

$

Not available

4

Husqvarna Construction 525 86 22-01

HANDLE

$

$

Not available

5

Husqvarna Construction 522 95 50-01

SCREW

$

$

Not available

6

Husqvarna Construction 531 14 06-14

NUT

$7.49

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 522 98 28-01

FORK

$

$

Not available

8

Husqvarna Construction 522 98 27-01

WEAR WASHER

$

$

Not available

9

Husqvarna Construction 522 98 26-01

HANDLE

$

$

Not available

10

Husqvarna Construction 522 85 55-01

SPRING

$

$

Not available

11

Husqvarna Construction 522 98 76-01

SCREW

$

$

Not available

12

Husqvarna Construction 522 98 68-01

AXLE

$

$

Not available

13

Husqvarna Construction 522 98 67-01

SLEEVE

$

$

Not available

14

Husqvarna Construction 531 14 06-11

SPACER

$1.34

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 574 22 05-01

SPRINT

$

$

Not available

16

Husqvarna Construction 531 11 95-10

SCREW

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 522 98 69-01

BEARING BUSH

$

$

Not available

18

Husqvarna Construction 522 83 08-01

GEAR WHEEL SHAFT

$

$

Not available

19

Husqvarna Construction 574 36 13-01

WASHER

$

$

Not available

20

Husqvarna Construction 504 90 83-35

CASE

$

$

Not available

21

Husqvarna Construction 522 98 75-01

TUBE

$

$

Not available

22

Husqvarna Construction 522 99 90-01

PLATE

$

$

Not available

23

Husqvarna Construction 522 99 84-01

DECAL

$

$

Not available

24

Husqvarna Construction 522 99 76-01

SCREW

$

$

Not available
