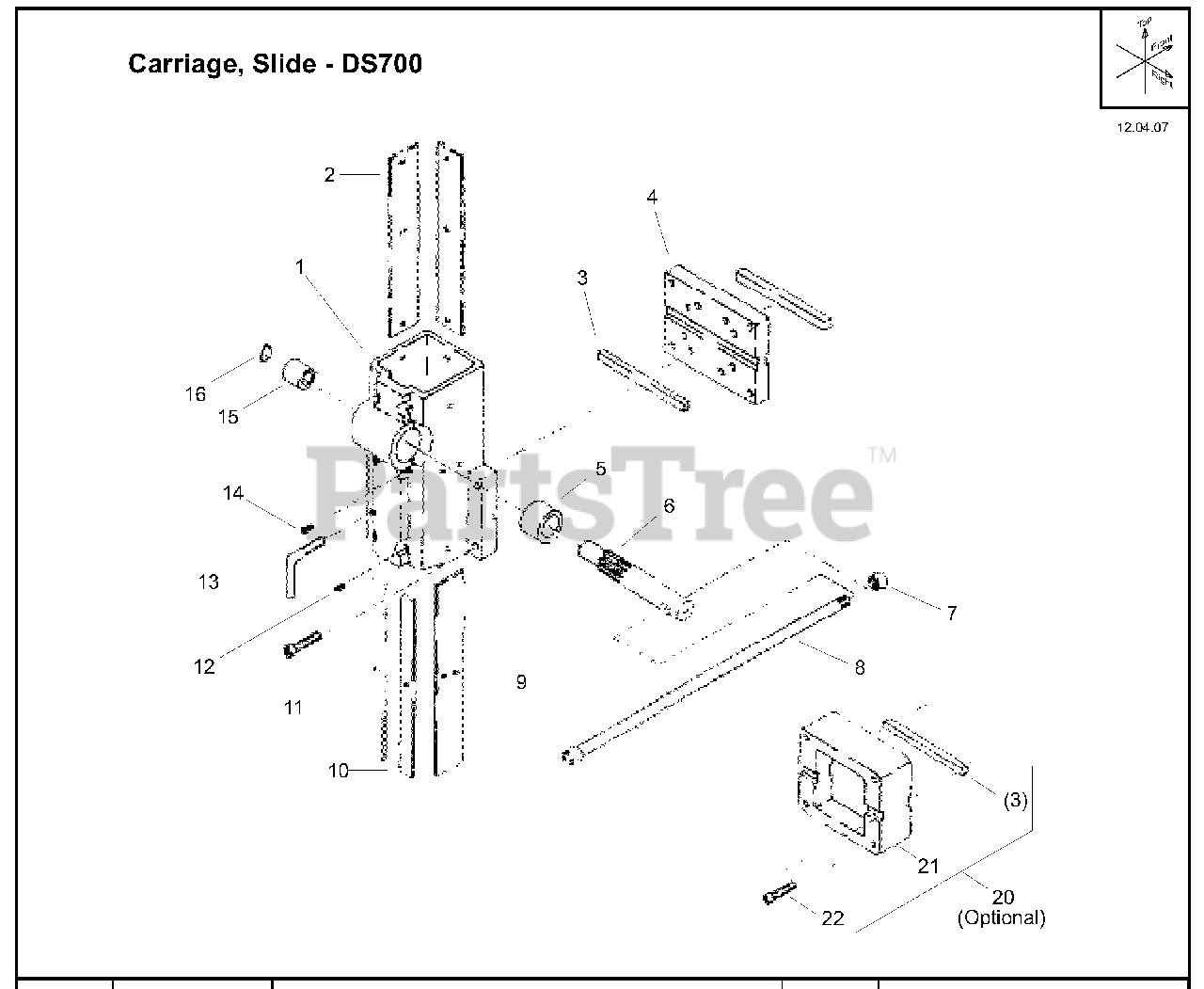

DS 700 (504625401) - Husqvarna Drill Stand (2007-12) Carriage, Slide Parts Diagram

Drill Stand

Carriage, Slide Parts Diagram

  • Title

Husqvarna 541401728

Carriage, Slide, DS700 - compl

Note: Incls: 1 - 16

$

$

Not available

1

Husqvarna 541401708

Body, Carriage - Husq Orange

$

$

Not available

2

Husqvarna 541401704

Plate, Wear, Wide - Fixed

$138.99

$

Usually ships in 3-10 days

0

3

Husqvarna 541401768

Key, 3/8" Sq x 5.0

$

$

Not available

4

Husqvarna 541401774

Plate, Motor Adapter

$223.99

$

Usually ships in 3-10 days

0

5

Husqvarna 541401747

Bushing, Bronze - 1"ID x 1-1/4 OD x 7/8

$23.99

$

Usually ships in 3-10 days

0

6

Husqvarna 541401724

Pinion, Slide Handle Type

$

$

Not available

7

Husqvarna 541401713

Cap, Slide Handle

$

$

Currently unavailable

8

Husqvarna 541401719

Slide, Handle

$400.99

$

Usually ships in 3-10 days

0

9

Husqvarna 541401700

Plate, Wear, Wide - Adjustable

$136.99

$

Usually ships in 3-10 days

0

10

Husqvarna 541401756

Plate, Wear, Narrow - Adjustable

$112.99

$

Usually ships in 3-10 days

0

11

Husqvarna 091067

Capscrew, Soc Hd 3/8-16 x 1-1/2"

$

$

Currently unavailable

12

Husqvarna 020541

Screw, Set, Soc 1/4-20 x 3/8"

$

$

Currently unavailable

13

Husqvarna 166038

Knob, Carriage Lock DS700
(Superseded to 542 16 60-38)

$25.99

$

Usually ships in 3-10 days

0

14

Husqvarna 541403763

Mach Screw, Flat Hd 10-32 x 3/8" Brass

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 541401752

Bushing, Bronze - 5/8"ID x 7/8 OD x 7/8

$16.99

$

Usually ships in 3-10 days

0

16

Husqvarna 541401743

Ring, Retaining

Note: Optional

$12.99

$

In Stock, only 1 left!

0

20

Husqvarna 504544101

Kit, 2" Spacer Block, DS700

Note: Incls: 21 - 22, (3)

$293.99

$

Usually ships in 3-10 days

0

21

Husqvarna 541201993

Block, 2" Spacer, DS700 Husq Orange

$255.99

$

Usually ships in 3-10 days

0

22

Husqvarna 020479

Capscrew, Soc Hd 3/8-16 x 3-1/2"

$

$

Not available

3

Husqvarna 541401768

Key, 3/8" Sq x 5.0

$

$

Not available
