DS 700 (504625401) - Husqvarna Drill Stand (2007-12) Drill Stand Parts Diagram

Drill Stand

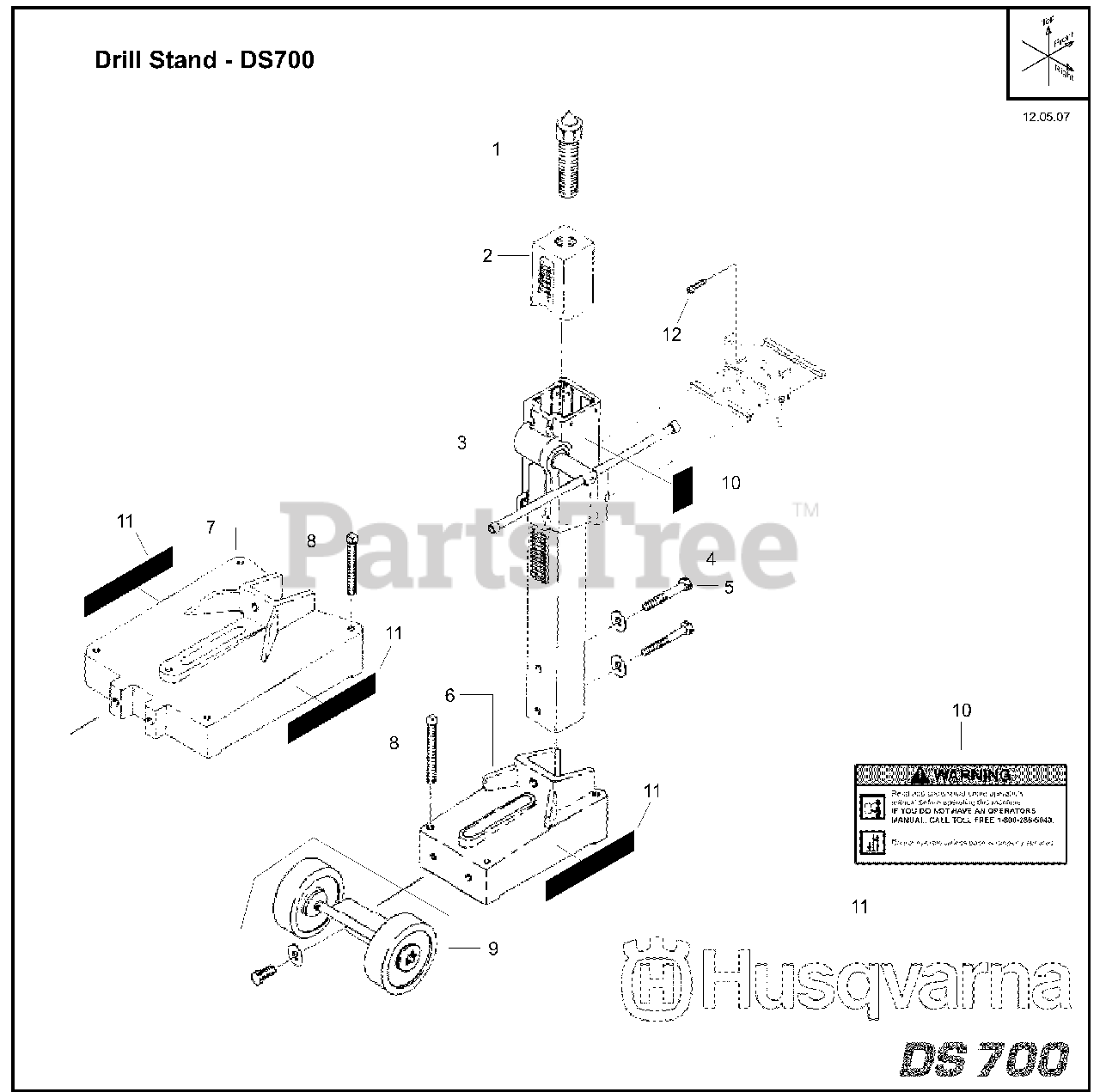

Drill Stand Parts Diagram

  • Title

1

Husqvarna 541401734

Screw, Ceiling Jack, 1"-8UNC

$64.99

$

Usually ships in 3-10 days

0

2

Husqvarna 541401785

Column w/ Rack - 2-1/2" Sq x 42"

$1520.99

$

Usually ships in 3-10 days

0

3

Husqvarna 541401728

Carriage, Slide - compl

Note: See Diag B

$

$

Not available

4

Husqvarna 020745

Washer, Flat 1/2"

$

$

Currently unavailable

5

Husqvarna 020415

Capscrew, Hex Hd 1/2-13 x 3.25"

$

$

Currently unavailable

6

Husqvarna 541403894

Base, Small, DS700 - Husq Orange

$

$

Not available

7

Husqvarna 541403896

Base, Large, DS700 - Husq Orange

Note: See Diag I for Vacuum Base

$795.99

$

Usually ships in 3-10 days

0

8

Husqvarna 020219

Capscrew, Sq Hd 1/2-13 x 4"

$3.62

$

Usually ships in 3-10 days

0

9

Husqvarna 541401126

Axle & Wheels - compl

Note: See Diag F

$173.99

$

Usually ships in 3-10 days

0

10

Husqvarna 174545

Decal, WARNING - Secure / Read

$

$

Not available

11

Husqvarna 502464201

Decal, HUSQVARNA DS700

$

$

Not available

12

Husqvarna 020470

Capscrew, Soc Hd 1/4-20 x 1"

Note: For Milwaukee Motor

$

$

Currently unavailable

12

Husqvarna 020469

Capscrew, Soc Hd 1/4-28 x 1"

Note: For Dewalt Motor

$

$

Not available

12

Husqvarna 174446

Capscrew, Soc Hd M8-1.25 x 25

Note: For Cardi Motor

$3.99

$

Usually ships in 3-10 days

0
