DS 700 (504625401) - Husqvarna Drill Stand (2007-12) Vacuum System - Single Pad Parts Diagram

Drill Stand

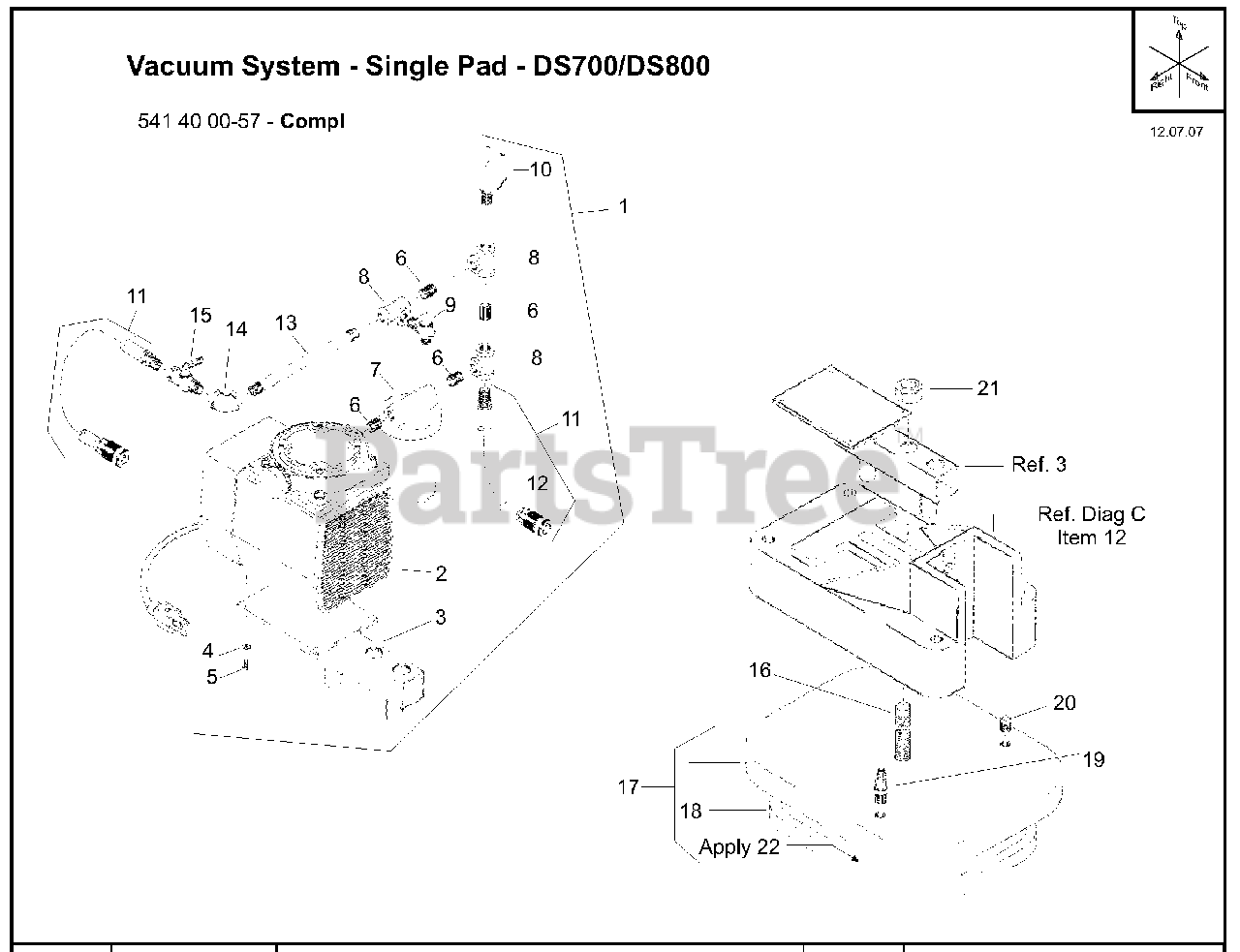

Vacuum System - Single Pad Parts Diagram

  • Title

1

Husqvarna 541401607

Vacuum Pump Assy

Note: Includes Items 2 - 15

$1736.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505549502

Pump, Vacuum

Note: Incls: Muffler

$738.99

$

Usually ships in 3-10 days

0

Husqvarna 162120

Muffler, Vacuum Pump
(Superseded to 917162120)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 162119

Kit, Vacuum Pump Service
(Superseded to 917162119)

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 541401592

Frame - Vacuum Pump

$

$

Not available

4

Husqvarna 541402289

Washer, Flat 1/4 SAE
(Superseded to 539990055)

$3.99

$

In Stock, Qty 19

0

5

Husqvarna 541205252

Capscrew, Soc Hd 10-32 x 1/2

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna 541402423

Pipe Fit., Nipple 1/4 NPT x Close - Galv

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 162438

Trap, Water

Note: Incls: Ball & Jar

$

$

Not available

Husqvarna 175308

Ball, Water Trap
(Superseded to 162438)

$

$

Not available

Husqvarna 175309

Jar, Water Trap

$111.99

$

Usually ships in 3-10 days

0

8

Husqvarna 541402422

Pipe Fit., Female Tee 1/4 NPT - Galv

$

$

Not available

9

Husqvarna 162439

Valve, Release 1/4 NPT

$

$

Currently unavailable

10

Husqvarna 090662

Gauge, Vacuum

$

$

Not available

11

Husqvarna 541401508

Hose Assy

Note: Includes Item 12

$

$

Not available

12

Husqvarna 541400323

Body, Quick Disconnect, 1/4 PL

$

$

Not available

13

Husqvarna 541402359

Pipe Fit., Nipple 1/4 x 7 Galv

$

$

Not available

14

Husqvarna 541402358

Pipe Fit., 90 Deg Fem Elbow 1/4 NPT - Galv

$

$

Not available

15

Husqvarna 541401493

Valve Shut-Off - Single Pad

$53.99

$

Usually ships in 3-10 days

0

16

Husqvarna 541401405

Stud, Pad 3/4-10 x 8"

$

$

Not available

17

Husqvarna 541401932

Pad, Vacuum

Note: Includes Rubber Gasket

$422.99

$

Usually ships in 3-10 days

0

18

Husqvarna 541401930

Gasket, Rubber

Note: Replacement Gasket

$

$

Not available

19

Husqvarna 541401901

Stem, Quick Disconnect

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 541401899

Pipe Fit., Plug 1/4 NPT

$

$

Not available

21

Husqvarna 541403748

Nut, Hex 3/4-10

$1.49

$

Usually ships in 3-10 days

0

22

Husqvarna 090249

Adhesive, Tube - 5 OZ

Note: Used on 18

$107.99

$

In Stock, only 1 left!

0
