DS 800 (504625401) - Husqvarna Drill Stand (2007-12) Angel Bracket Parts Diagram

Drill Stand

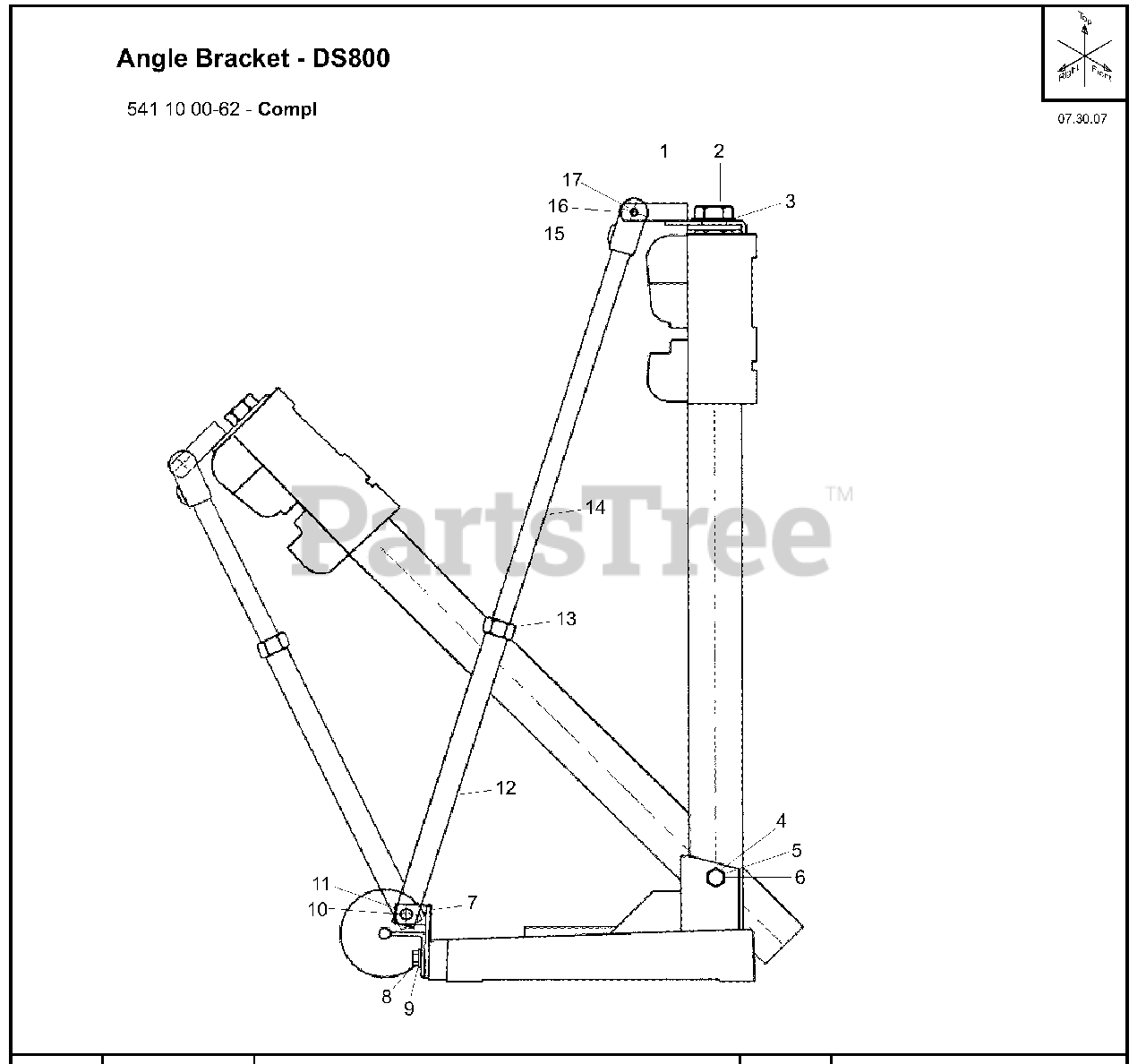

Angel Bracket Parts Diagram

  • Title

1

Husqvarna 541400540

Bracket, Upper Backstay - DS800

$

$

Not available

2

Husqvarna 541403592

Capscrew, Hex Hd, 1-1/4" - 7 x 1-1/2

$

$

Not available

3

Husqvarna 541403593

Washer, Flat 1-1/4 SAE

$

$

Not available

4

Husqvarna 541403735

Washer, Flat 5/8 SAE

$

$

Not available

5

Husqvarna 541403734

Locknut, 5/8-11 Thin Flexloc

$

$

Not available

6

Husqvarna 541403594

Capscrew, Hex Hd, 5/8-11 x 4-1/4

$

$

Not available

7

Husqvarna 541401694

Bracket, Lower Backstay

$

$

Not available

8

Husqvarna 541403777

Capscrew, Hex Hd, 1/2-13 x 1-1/4

$

$

Not available

9

Husqvarna 541403798

Washer, Flat 1/2 SAE

$

$

Not available

10

Husqvarna 541403653

Capscrew, Hex Hd, 5/8-11 x 2-1/2

$

$

Currently unavailable

11

Husqvarna 541403734

Locknut, 5/8-11 Thin Flexloc

$

$

Not available

12

Husqvarna 541401688

Backstay, Lower

$

$

Not available

13

Husqvarna 541401677

Nut, Jam - Backstay

$

$

Not available

14

Husqvarna 541401683

Backstay, Upper

$

$

Not available

15

Husqvarna 541401666

Adapter, Upper Bracket Rod

$

$

Not available

16

Husqvarna 541403789

Capscrew, Hex Hd, 3/8-16 x 1-1/2

$

$

Not available

17

Husqvarna 541403788

Locknut, Fiber 3/8-16

$

$

Not available
