DS 800 (504625401) - Husqvarna Drill Stand (2007-12) Carriage, Roller Parts Diagram

Drill Stand

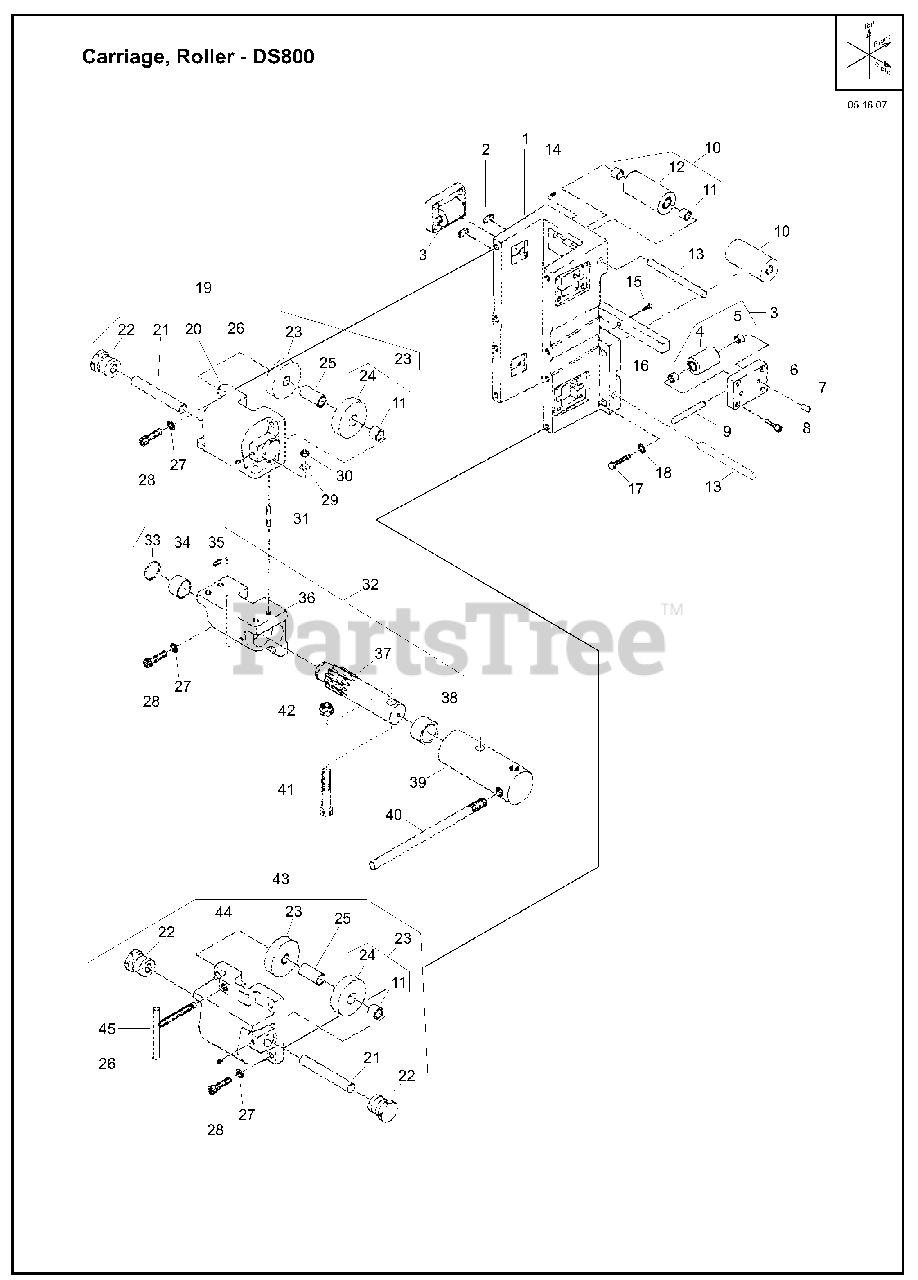

Carriage, Roller Parts Diagram

  • Title

Husqvarna 541401507

Roller Carriage w/ Handle

Note: Incls: 1 - 45

$2696.99

$

Usually ships in 3-10 days

0

1

Husqvarna 541403842

Body, Roller Carriage, Husq Orange

$692.99

$

Usually ships in 3-10 days

0

2

Husqvarna 541401557

Spacer, Rubber, Side Roller

$4.49

$

Usually ships in 3-10 days

0

3

Husqvarna 541401538

Roller, Side - compl

Note: Incls: 4 - 5

$66.99

$

Usually ships in 3-10 days

0

4

Husqvarna 502448901

Roller, Side

$

$

Currently unavailable

5

Husqvarna 541401541

Bushing, .252ID x .377OD x .25

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 541403843

Housing, Roller Husq Orange

$104.99

$

Usually ships in 3-10 days

0

7

Husqvarna 020670

Screw, Soc Hd Set, .25-20 X .5 Cup Pt

$

$

Currently unavailable

8

Husqvarna 020386

Capscrew, Soc Hd, 10-24 x .75 Gr8

$

$

Not available

9

Husqvarna 541401544

Shaft, Side Roller

$33.99

$

Usually ships in 3-10 days

0

10

Husqvarna 541401525

Roller, Carriage - compl

Note: Incls: 11 - 12

$83.99

$

Usually ships in 3-10 days

0

11

Husqvarna 541401540

Bushing, .377ID x .502OD x .50

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 502448801

Roller, Carriage

$

$

Currently unavailable

13

Husqvarna 541401522

Shaft, Roller

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 541402275

Screw, Soc Hd Set, 10-24 x .312 Cup Pt

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 541205036

Screw, Fl Hd 8-32 x 3/4" Brass

$1.49

$

Usually ships in 3-10 days

0

16

Husqvarna 541400498

Key, .500 Sq x 5.88"

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990655

Capscrew, Hex Hd, .375-16 x 1.5

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 541205245

Washer, Lock 3/8", Int Tooth

$0.99

$

Usually ships in 3-10 days

0

19

Husqvarna 541401564

Upper Roller Housing - compl

Note: Incls: 20 - 26

$644.99

$

Usually ships in 3-10 days

0

20

Husqvarna 541401562

Housing, Roller, Top, Husq Orange

$

$

Not available

21

Husqvarna 541401533

Shaft, Eccentric Adj. Roller

$20.99

$

Usually ships in 3-10 days

0

22

Husqvarna 541401546

Adjuster, Eccentric Roller

$56.99

$

Usually ships in 3-10 days

0

23

Husqvarna 541401537

Roller, Adjustable – compl

Note: Incls: 24 & 11(x1)

$61.99

$

Usually ships in 3-10 days

0

24

Husqvarna 502448701

Roller, Adjustable

$

$

Currently unavailable

25

Husqvarna 541401531

Spacer, Roller

$20.99

$

Usually ships in 3-10 days

0

26

Husqvarna 020541

Screw, Soc Hd Set, .25-20 x .375 Cup Pt

$

$

Currently unavailable

27

Husqvarna 020793

Washer, Lock, 5/16 Internal Tooth

$

$

Not available

28

Husqvarna 162699

Capscrew, Soc Hd, .3125-18 x 1.25 Gr8

$2.49

$

Usually ships in 3-10 days

0

29

Husqvarna 020762

Washer, Flat SAE .25

$

$

Currently unavailable

30

Husqvarna 166887

Nut, Hex Jam .25-28

$

$

Not available

31

Husqvarna 541401468

Stud, TBE, .25-20 / .25-28 x 1.00

$13.99

$

Usually ships in 3-10 days

0

32

Husqvarna 541401500

Pinion Bracket – compl

Note: Incls:33-38

$638.99

$

Usually ships in 3-10 days

0

33

Husqvarna 541401472

Retaining Ring, .750 D

$8.49

$

In Stock, only 1 left!

0

34

Husqvarna 541401476

Bushing, .753ID x .876 OD x .75

$56.99

$

Usually ships in 3-10 days

0

35

Husqvarna 541403754

Screw, Soc Hd Set, .25-20 x .312 Dog Pt

$1.49

$

Usually ships in 3-10 days

0

36

Husqvarna 541401481

Bracket, Pinion, Husq Orange

$

$

Not available

37

Husqvarna 541400459

Gear, Pinion, DS 800

$154.99

$

Usually ships in 3-10 days

0

38

Husqvarna 541401474

Bushing, 1.128ID x 1.313OD x .750

$59.99

$

Usually ships in 3-10 days

0

39

Husqvarna 541402513

Hub, Handle

$135.99

$

Usually ships in 3-10 days

0

40

Husqvarna 541400411

Handle

$27.99

$

Usually ships in 3-10 days

0

41

Husqvarna 541204943

Capscrew, Hex Hd, 1/2-13 x 2-1/4

$1.49

$

Usually ships in 3-10 days

0

42

Husqvarna 020201

Locknut, Fiber .50-13

$

$

Currently unavailable

43

Husqvarna 541401527

Lower Roller Housing - compl

Note: Incls: 21, 22, 24-26, 44, 45

$

$

Not available

44

Husqvarna 541401517

Housing, Roller Lower, Husq Orange

$195.99

$

Usually ships in 3-10 days

0

45

Husqvarna 541401515

Screw, Lock, DS800

$48.99

$

Usually ships in 3-10 days

0
