DS 800 (504625401) - Husqvarna Drill Stand (2007-12) Control Panel Parts Diagram

Drill Stand

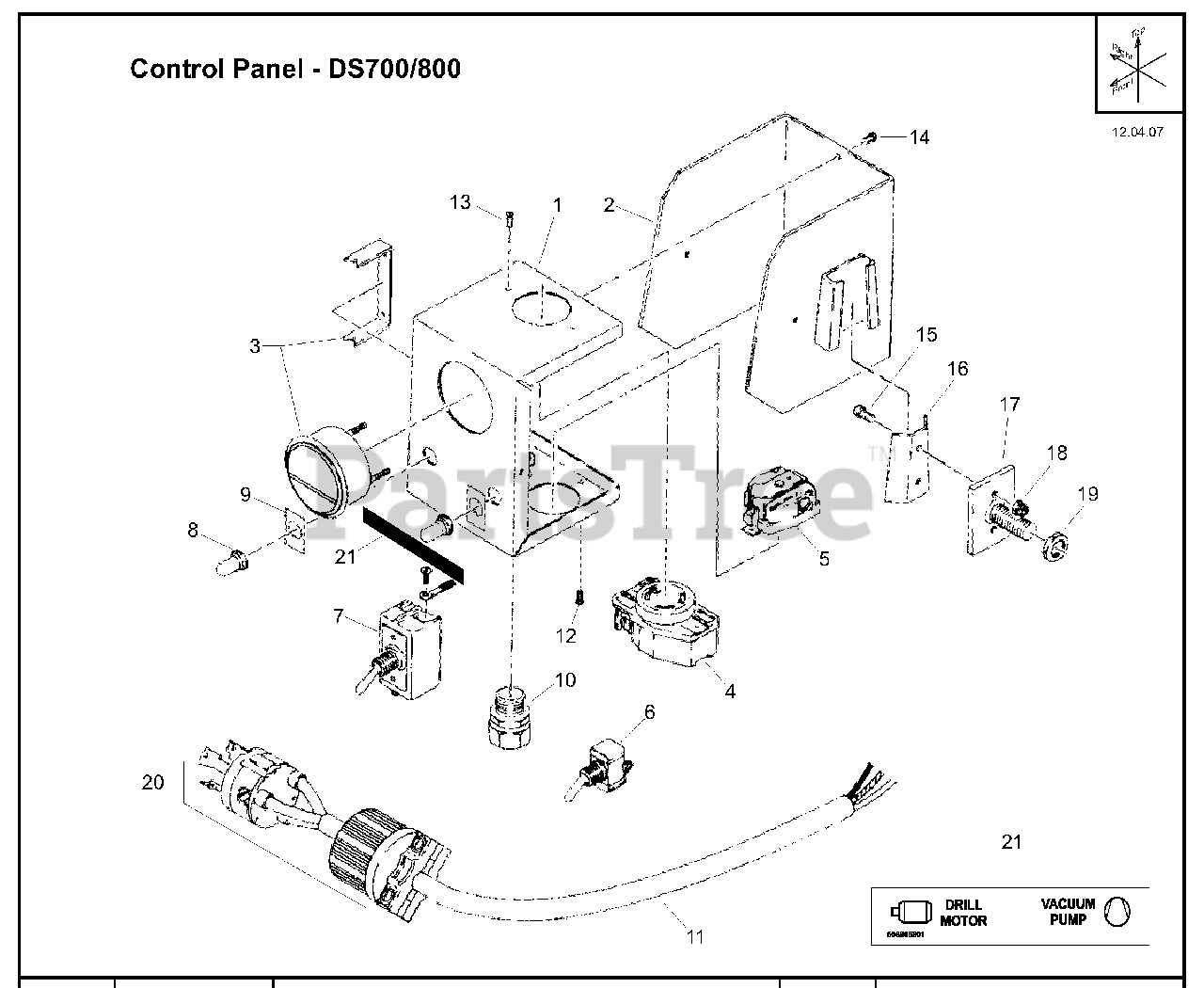

Control Panel Parts Diagram

  • Title

Husqvarna 541404016

Control Panel, 20 Amp - compl

Note: Incls: 1 - 20

$756.99

$

Usually ships in 3-10 days

0

1

Husqvarna 541401442

Panel, Front Husq Gray

$

$

Not available

2

Husqvarna 541401440

Panel, Back Husq Gray

$

$

Not available

3

Husqvarna 541201907

Ammeter, 0-30A

$

$

Currently unavailable

4

Husqvarna 541401037

Receptacle, 125-20A, Single Twist Lock

Note: For Drill Motor

$123.99

$

Usually ships in 3-10 days

0

5

Husqvarna 541401438

Receptacle, 125-15A, Single

Note: For Vacuum Pump

$86.99

$

Usually ships in 3-10 days

0

6

Husqvarna 541201976

Switch, Toggle

Note: For Vacuum Pump

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 541401018

Switch, Toggle

Note: For Drill Motor

$60.99

$

Usually ships in 3-10 days

0

8

Husqvarna 182146

Boot, Half - Toggle Switch
(Superseded to 542 18 21-46)

$26.99

$

In Stock, only 2 left!

0

9

Husqvarna 090552

Switch Plate

$

$

Currently unavailable

10

Husqvarna 541403677

Strain Relief

$

$

Not available

11

Husqvarna 541400246

Wire, 12/3 SOW (Per Foot)

Note: Power Cord

$

$

Not available

12

Husqvarna 541403764

Capscrew, Button Hd 8-32 x 3/8"

$0.99

$

Usually ships in 3-10 days

0

13

Husqvarna 541403766

Capscrew, Button Hd 6-32 x 3/8"

$

$

Not available

14

Husqvarna 541403767

Capscrew, Button Hd 10-32 x 1/4"

$

$

Not available

15

Husqvarna 162496

Capscrew, Soc Hd 1/4-20 x 3/4"

$

$

Currently unavailable

16

Husqvarna 541401444

Clip, Dovetail - Male

$26.99

$

Usually ships in 3-10 days

0

17

Husqvarna 541401446

Bracket, Mounting Adapter, 1/2-20 UNF

$

$

Not available

18

Husqvarna 020195

Locknut, Fiber .25-20

$

$

Currently unavailable

19

Husqvarna 15701488

Jam Nut, 1/2-20 UNF

$

$

Currently unavailable

20

Husqvarna 030103

Plug, 125V-20A, Twist Lock L5-20P

$

$

Not available

21

Husqvarna 506605801

Decal, Control Panel, DS700/800

Note: Drill Motor - Vacuum Pump

$3.49

$

Usually ships in 3-10 days

0
