DS 800 (504625401) - Husqvarna Drill Stand (2007-12) Drill Stand Parts Diagram

Drill Stand

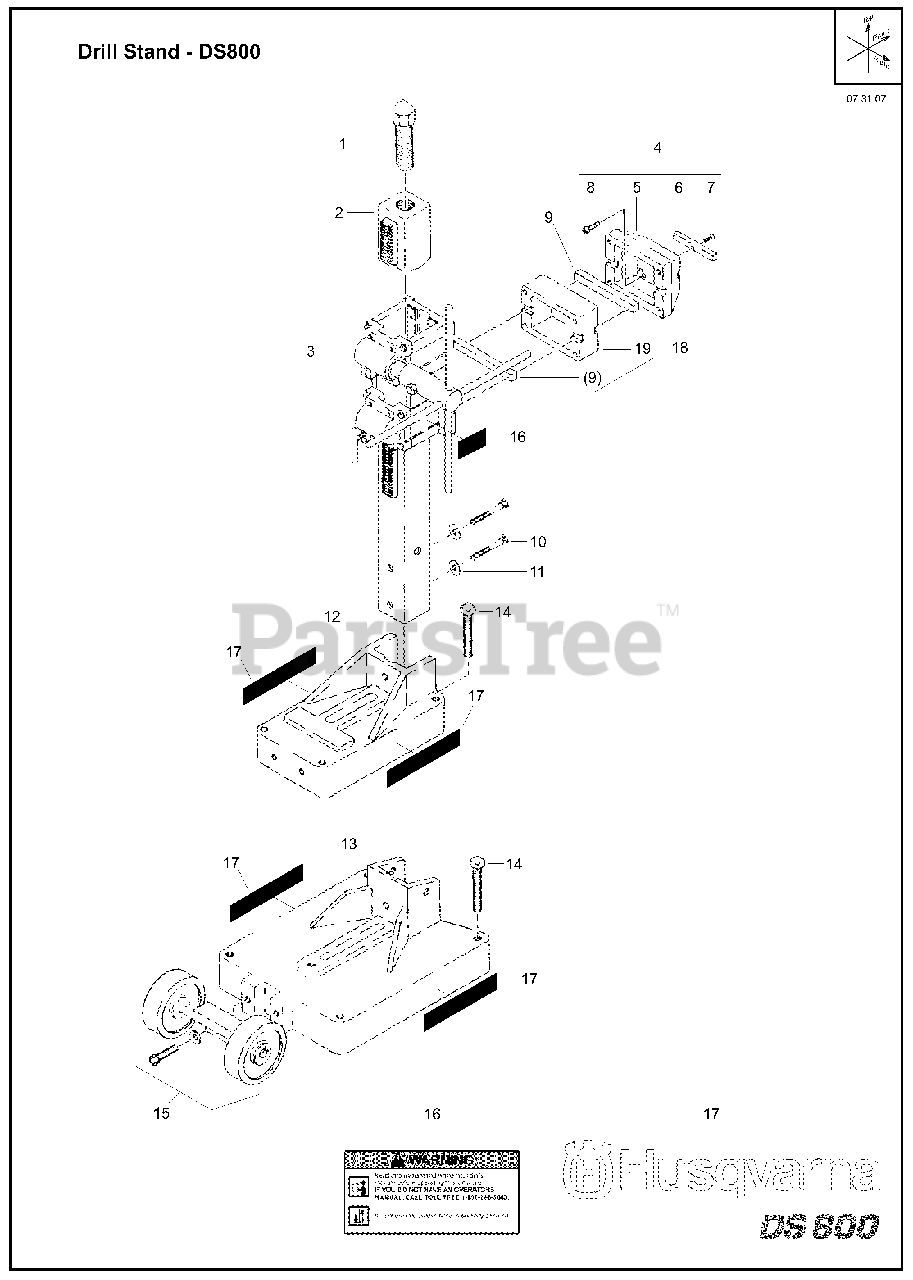

Drill Stand Parts Diagram

  • Title

1

Husqvarna 541401137

Screw, Ceiling Jack, 1-1/4"-7NC

$135.99

$

Usually ships in 3-10 days

0

2

Husqvarna 541402574

Column w/ Rack - 2-7/8" Sq x 42"

Note: 2-7/8" Sq x 42" Standard

$727.99

$

Usually ships in 3-10 days

0

Husqvarna 541401109

Extra Length Drill Columns Column w/ Rack - 2-7/8" Sq x 60"

$1494.99

$

Usually ships in 3-10 days

0

Husqvarna 541401107

Extra Length Drill Columns Column w/ Rack - 2-7/8" Sq x 72"

$1791.99

$

Usually ships in 3-10 days

0

Husqvarna 541401105

Extra Length Drill Columns Column w/ Rack - 2-7/8" Sq x 80"

$4755.99

$

Usually ships in 3-10 days

0

Husqvarna 541404256

Extra Length Drill Columns Column w/ Rack - 2-7/8" Sq x 120"

$4722.99

$

Usually ships in 3-10 days

0

3

Husqvarna 541400562

Carriage, Side, DS800 - compl

Note: See Diag D

$1355.99

$

Usually ships in 3-10 days

0

3

Husqvarna 541401507

Carriage, Roller, DS800 - compl

Note: See Diag E

$2696.99

$

Usually ships in 3-10 days

0

4

Husqvarna 541401240

Adapter, Motor Mtg, DS 800 - compl

Note: Incls: 3 - 5

$350.99

$

Usually ships in 3-10 days

0

5

Husqvarna 541401283

Adapter, Motor Mtg, DS800

$203.99

$

Usually ships in 3-10 days

0

6

Husqvarna 541401277

Key, .375" Sq x 3.625

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 541205036

Screw, Flat Hd, 8-32 x 3/4"

$1.49

$

Usually ships in 3-10 days

0

8

Husqvarna 020470

Capscrew, Soc Hd 1/4-20 x 1"

Note: For Milwaukee Motor

$

$

Currently unavailable

8

Husqvarna 020469

Capscrew, Soc Hd 1/4-28 x 1"

Note: For Dewalt Motor

$

$

Not available

8

Husqvarna 174446

Capscrew, Soc Hd M8-1.25 x 25

Note: For Cardi Motor

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 541400498

Key, .500" Sq x 6

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 020495

Capscrew, Hex Hd 5/8-11 x 4"

$

$

Currently unavailable

11

Husqvarna 020747

Washer, Flat 5/8"

$

$

Currently unavailable

12

Husqvarna 541403895

Base, Small, DS800 - Husq Orange

$503.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502494001

Base, Combination, DS800 - Husq Orange

Note: See Diag I for Vacuum Base

$971.99

$

Usually ships in 3-10 days

0

14

Husqvarna 541403519

Capscrew, Sq Hd 3/4-10 x 4"

$8.49

$

Usually ships in 3-10 days

0

15

Husqvarna 541401126

Axle & Wheels - compl

Note: See Diag F

$173.99

$

Usually ships in 3-10 days

0

16

Husqvarna 174545

Decal, WARNING - Secure / Read

$

$

Not available

17

Husqvarna 502464301

Decal, HUSQVARNA DS800

Note: Optional Accessories

$

$

Currently unavailable

18

Husqvarna 504544201

Kit, 2" Spacer Block, DS800

Note: Incls: 19 & (9)

$266.99

$

Usually ships in 3-10 days

0

19

Husqvarna 502624801

Block, 2" Spacer, Husq Orange

$242.99

$

Usually ships in 3-10 days

0

9

Husqvarna 541400498

Key, .50 Sq x 5.88"

$24.99

$

Usually ships in 3-10 days

0

Husqvarna 539300870

Capscrew, Hex Hd, .375-16 x 3.5

Note: (Not Shown) See Diag D

$1.49

$

Usually ships in 3-10 days

0
